Steel Roof Profiling Machine

Steel Roof Profiling Machine thumbnail-1
Steel Roof Profiling Machine photo-1
US$ 20,000 - 24,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze Steel
Contact Supplier Request Quote Chat Now
Hangzhou Willing International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Glaze Steel
Use Roof
Production Capacity 3-4m/min
Place of Origin China
Brand Name Willing
Model Number WLFM25-205-1025
Power(W) 4 KW
Voltage 380V 50Hz 3phases or as your requirement
Dimension(L*W*H) 9m*1.5m*1.5m
Weight 6-8T
Certification CE/ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

High quality steel roof profiling machine,

steel profiling machine,

roof profiling machine











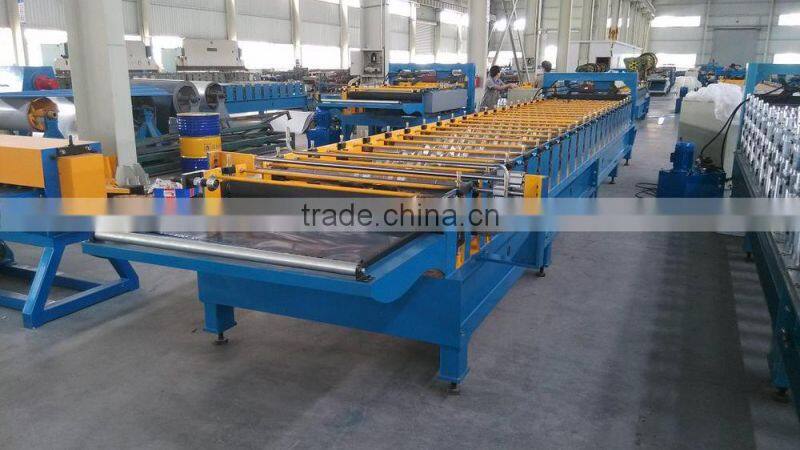

1. Components for the sheet profiling machine

The roll forming machine includes manual uncoiler unit, sheet guiding equipment, roll forming system,

cutting equipment, hydraulic station, electric controlling system and run out supporting table.







2. Technical Parameters

Material Spec: Aluminum, aluzinc, galvanized and pre-painted galvanized steel sheet

Thickness: 0.3 mm to 0.7mm (perfect is 0.4mm-0.6mm)

Main motor power: 5.5 kw

Hydraulic station power: 5.5 kw

Feeding width: 1200mm

Cover width: 780mm

Coil stress: Q235 Mpa(33KSI); maximum stress yield is Q345Mpa (50KSI)

Producing Speed: 3~4 m/min. (including the speed of step pressing and cutting)

Cutting Tolerance: ≤±2.5mm ( length≤ 5000mm) ; ≤±3mm ( 5000mm < length ≤ 10000mm)

Manual Uncoiler: max. capacity: 5000kgs

Stands number: at least 13 stands (13 groups of rollers)

Type of cutting:  Roll-formed and length-set cutting



3. Material of Main Equipments

Roller Material: high grade No.45 forged steel, Coating with hard chrome.

Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated mechanic feature of the shaft.

Electric Elements: PLC control panel, transducer imported from Siemens, Germany.

Other Elements: from Schneider Electric, Germany.

Cutter Blade: Cr12 mould steel with quenched treatment.

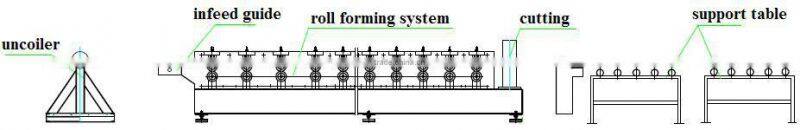

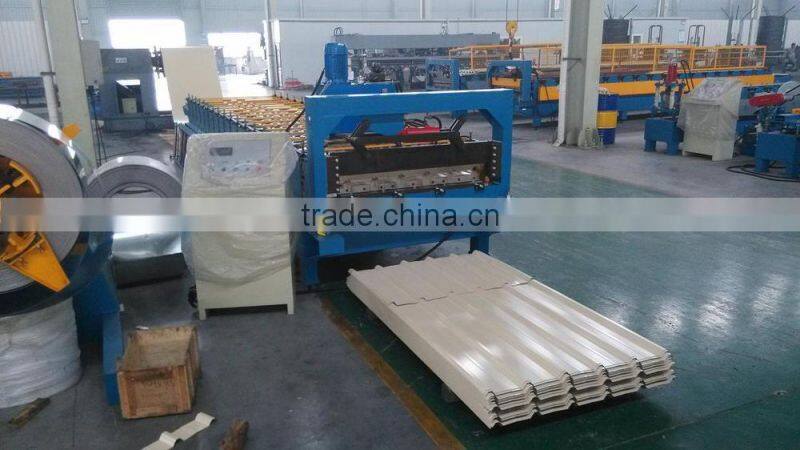

4. Process sketch

Uncoiling the sheet --- Infeed guiding --- Roll forming --- Step pressing --- Measure length --- Cutting the panel ---

Panels to the supporter (option: automatic stacker).
