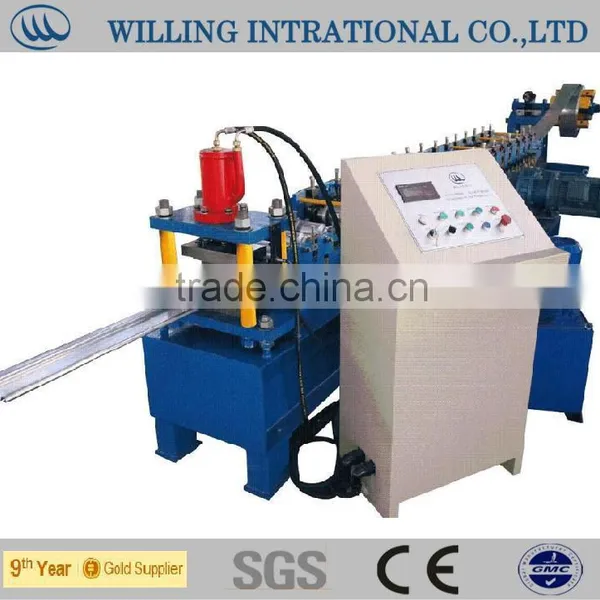

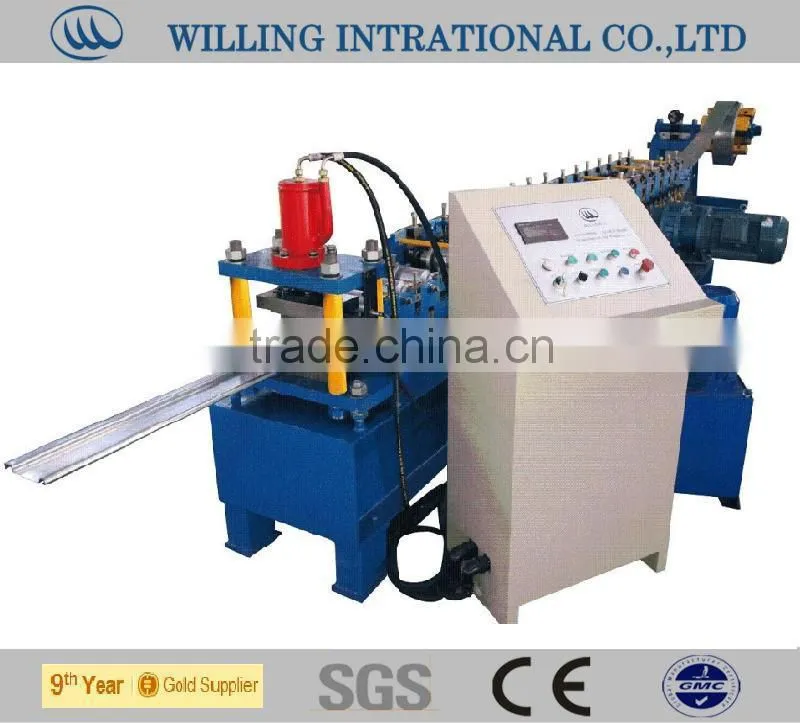

High quality metal forming production system, door metal framing production system, steel doorframe machine.High quality metal forming production system,
metal framing production system,
metal forming production line
1. Components of metal forming production system

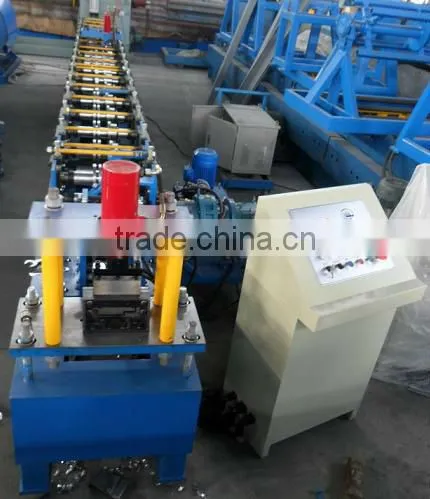

The roll forming machine includes 3tons manual uncoiler unit, sheet guiding equipment, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.
2. Technical Parameters
Material Spec: galvanized steel and carbon steel;
Thickness: 0.8~1.2mm;
Main motor power: 4 kw;
Hydraulic station power: 3 kw;
Steps of rollers: 15 stands/pairs to form (subject to final design);
Web size: 35/20mm;
Yield stress: 235 Mpa~550Mpa;
Roll forming speed 12~15 m/min.;
Line speed: 7~8m/min. (including punching and cutting time);
Cutting Tolerance: ≤±2.5mm ( length≤ 5000mm) ;
≤±3mm ( 5000mm < length ≤ 10000mm) ;
Hydraulic uncoiler: Max. Capacity: 3,000kgs;
Type of cutting: Stop to Cutting, Post Cut, no blanking cut.
Voltage: as per customer's requirement.
3. Material of Main Equipment
Roller Material |
High grade No.45 forged steel, coated with hard chrome. |
Active Shaft Material |
High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft. |
Electric Elements |
PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
Cutter blades |
Cr12 mould steel with quenched treatment. |
4. Process sketch
Uncoiling the sheet --- Infeed guiding --- Pre-punching --- Roll forming --- Measure length --- Cutting the panel ---
Panels to the supporter (option: automatic stacker).
