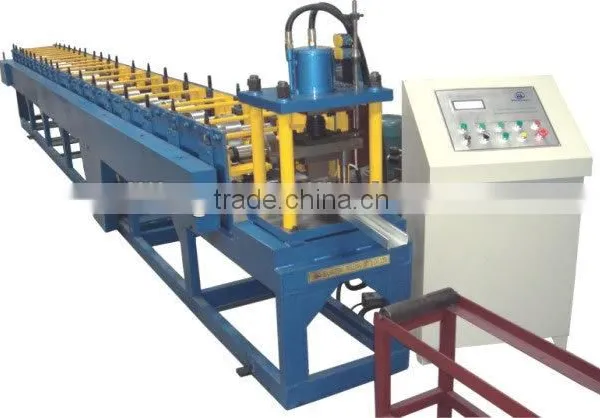

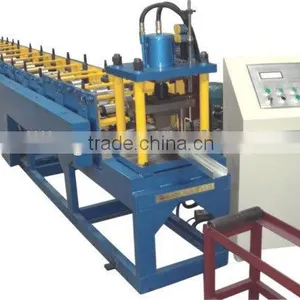

Drywall Roll Forming Machine WLFM34-63
US$ 20,000 - 22,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Willing
Model Number:
WLFM34-63
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stud&track Roll Forming Machine WLFM34-63US$ 20,000 - 22,000MOQ: 1 Set -
Steel Drywall Stud and Track Roll Forming Machine WLFM34-63US$ 20,000 - 22,000MOQ: 1 Set
-
Rectangular Tube AluminiumUS$ 600 - 1,100MOQ: 10 Tons
-
Welded Steel H Beam for Steel StructureUS$ 700 - 1,000MOQ: 25 Tons
-
Galvanized Steel Floor Decking Sheet/galvanized Metal Floor Decking Sheet/popular Steel Floor Decking Sheet/Composite Metal DeckUS$ 4 - 8MOQ: 25 Tons
Place of Origin
Zhejiang, China
Brand Name
Willing
Model Number
WLFM34-63
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
We can design and manufacture many kinds of such drywall stud and track roll forming machines as clients' requirementsDrywall roll forming machine
————with model # WLFM34-63
1. Main Parameters
Material Spec |
Colored and galvanized steel sheet (Q235) |
| Coil thickness | 0.80~1.0mm |
| Coil width | 124mm |
| Working speed | 10~12m/(cutting time is not included) |
| Cutting tolerance | ≤±2.5mm ( length ≤5000mm ) |
| ≤±3.0mm (5000mm <length ≤10000mm) | |
| Power requirement | Main motor power: 3Kw |
| Hydraulic station power: 3Kw | |
| 3 tons manual un-coiler | Max. capacity: 3000kgs; Inner Dia.: 508mm |
| Main roller quantity | Around 11 stands |
| Type of cutting | Roll-formed and length-set cutting |
| Voltage | 380V 3phase 50HZ or as customers' requirements |
2. Material of main equipments
Roller Material |
High grade No. 45 forged steel, with digital-controlled procession, panted with hard chrome |
| Active Shaft Material | High grade No. 45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft |
| Electric elements: |
Control system PLC panel, transducer and touch screen originally imported from Mitsubishi of Japan. It can input 10 sets of specifications at one time. Other elements from famous suppliers in China |
| Cutter blade: |
Cr12 mould steel with quenched treatment, hardness HRC55-62 |
3. Working flow
De-coiling the sheet——Sheet guiding——Roll forming——Measure length——Cutting the panel——Finished
products comes out to the support tables
4. Standard equipments of machine
| 3 tons manual un-coiler | 1 |
| Guiding equipment | 1 |
| Roll forming equipment | 1 |
| Post-cut equipment | 1 |
| Hdraulic station | 1 |
| PLC control panel | 1 |
| Support tables | 2 |
