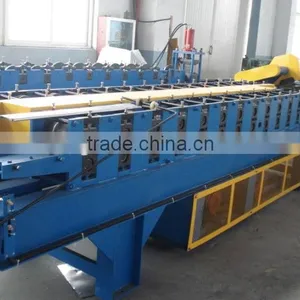

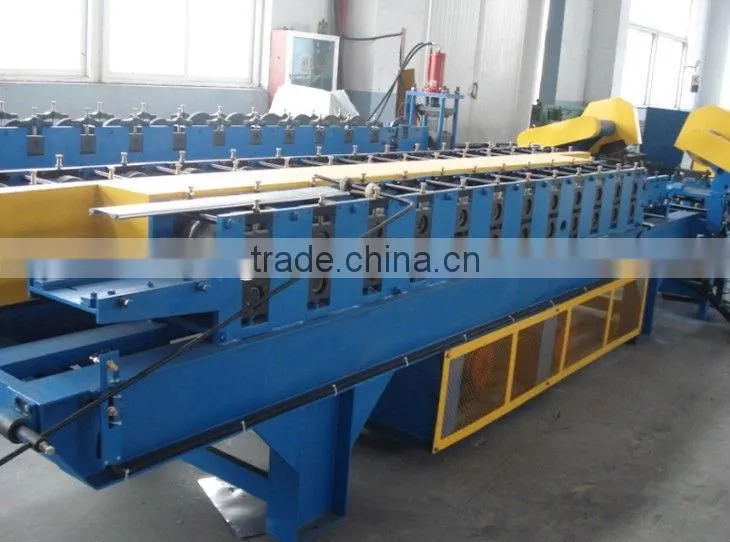

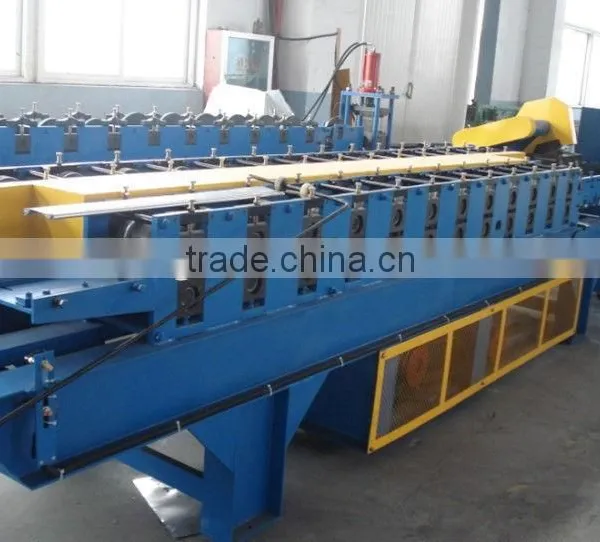

Roller Shutter Roll Forming Machine/Garage Door Forming Machine

Name: Roller Shutter Roll Forming Machine/Garage Door Forming Machine
Brand: Willing
SKU: 127394497

US$ 40,000 - 80,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Willing

Model Number:

WLDM17-114/at buyer`s requirement

Hangzhou Willing International Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Willing

Model Number WLDM17-114/at buyer`s requirement

Specifications

Find Complete Details about Hky Shutter Door Roll Forming Machine,Forming Machine,Roll Former

We can produce this kind of machine according to customer`s requirement.

Specifaction

Material Spec	galvanized sheet;
Coil stress	235Mpa
Main motor power	4kw

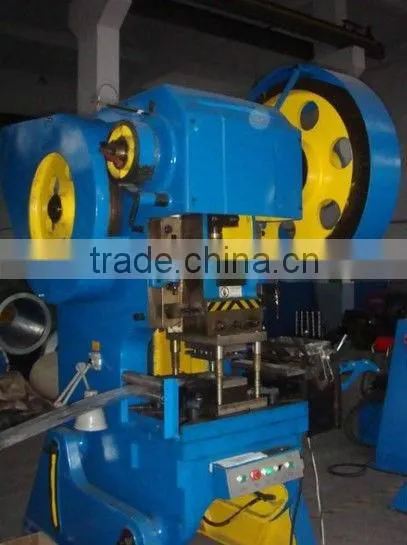

Punching equipment power	5.5kw.
Punching pressure	40T

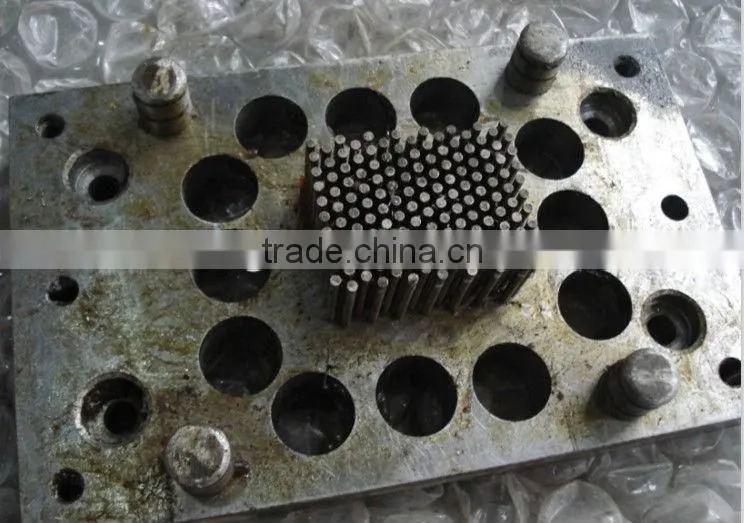

Punching mould size	50mm *200mm at one time.
Mould material	top and down mould material D2 mould steel.

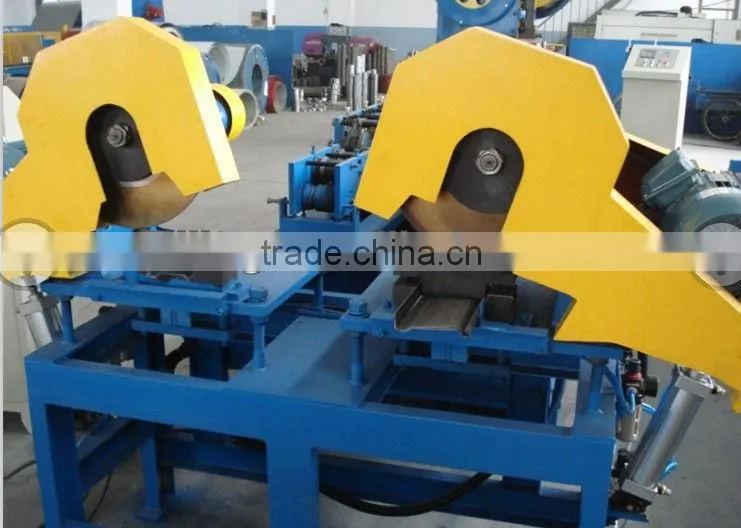

Saw cutter motor	3kw
Working Speed	10 ~ 12 m/min. after punching speed about 2-4m/min.
Cutting Tolerance	≤±2.5mm ( length≤ 5000mm)
	≤±3mm ( 5000mm < length ≤ 10000mm)
Type of cutting	Roll-formed and length-set cutting
Roller stands	about 15 stands
Voltage	380V 3 phase 60Hz or at buyer`s requirement

Material of Main Equipment

Roller Material	High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the rollers
Active Shaft Material	High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft
Electric Elements	PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China
Cutter blade	Cr12 mould steel with quenched treatment
