Crimp Curved Roofing Sheet Machine

Crimp Curved Roofing Sheet Machine thumbnail-1
Crimp Curved Roofing Sheet Machine photo-1
US$ 16,000 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Arching Machine
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Hangzhou Willing International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Arching Machine
Tile Type Steel
Use Roof
Production Capacity 15m/minute
Place of Origin China
Brand Name Willing
Model Number WLFM28-190-760
Power(W) 3KW
Voltage as per customer's request.
Dimension(L*W*H) 1.7m*1.3m*1.2m
Weight 1 ton
Certification CE, ISO9001:2008
Warranty 1 year.
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Crimp curved roofing sheet machine, crimp curved roofing sheet, steel sheet crimping machine.

crimp curved roofing sheet machine,

crimp curved roofing sheet,

steel sheet crimping machine

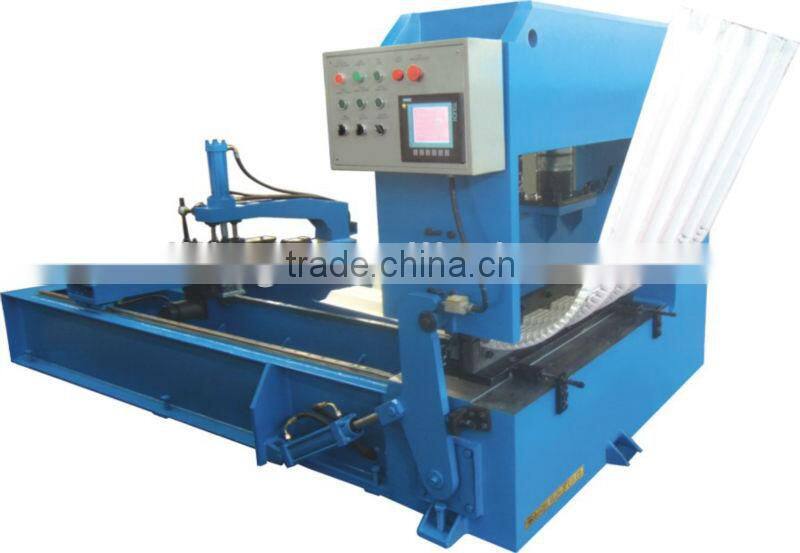

 crimp curved roofing sheet machineVITICAL TYPE 1

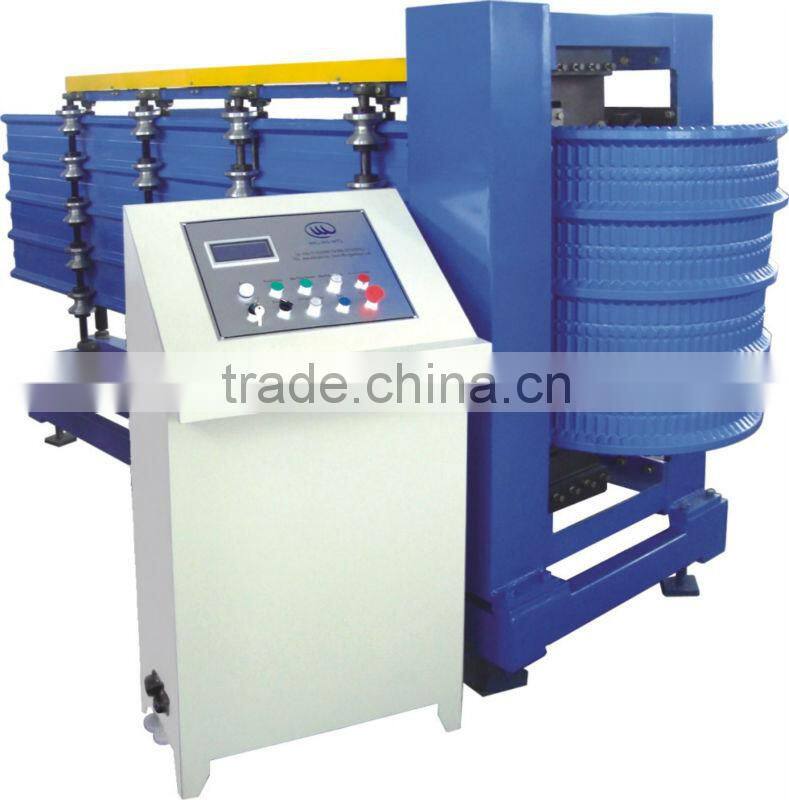

crimp curved roofing sheet machine VITICAL TYPE 2

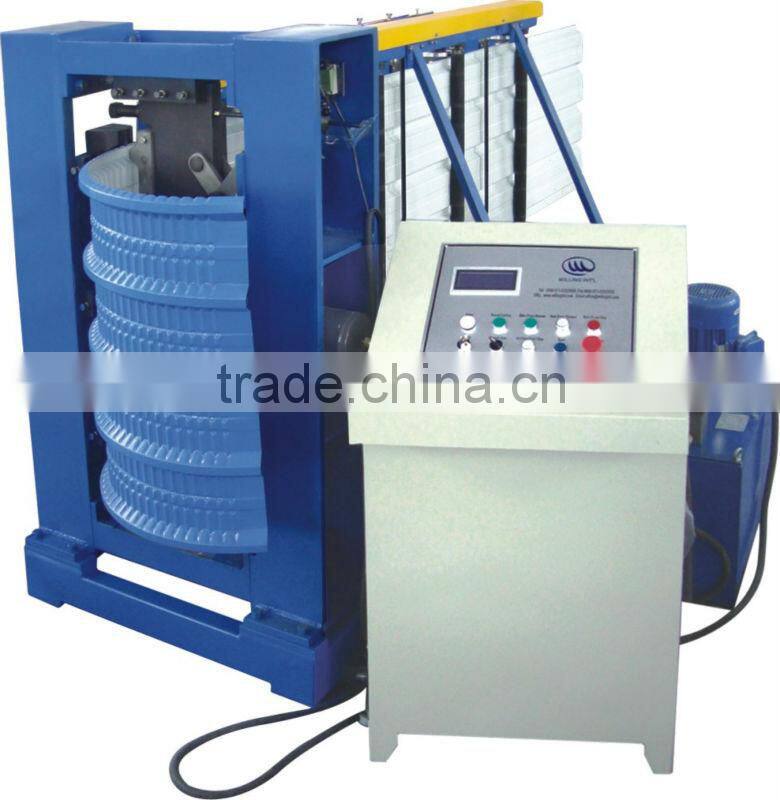

crimp curved roofing sheet machineHORIZONDAL TYPE

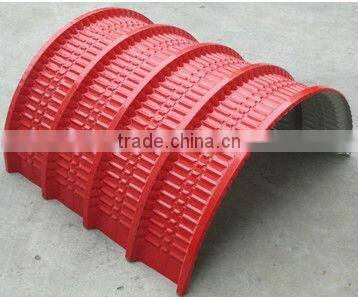

crimp curved roofing sheet machine  FINISHED PRODUCT





*Technical Parameters for steel roofing sheet bending machine*

1)      Material: cold rolled steel coils /colour-coated steel coils /aluminum coils;

2)      Profile of press: C *(0.4~0.8)mm (“C” is the width of corrugated sheet already produced);

3)      Thickness: 0.4~0.8mm;

4)      Width: max. 100~1250mm;

5)      Line speed: max. 15m / min.;

6)      Machine size: 1700mm * 1300mm* 1200mm(length * width * height);

7)      Motor power: 3kw.



*Product Function*

This machine makes small-span curve for designed profile roof panel.

Such a curving steel sheet saves roof purlins and steel farme,

and lowers cost accordingly. Moreover, the curving roof is strong and durable,

and looks beautiful and fashionable as well.



crimp curved roofing sheet machine
