Oxygen/nitrogen/argon air heated or ambient vaporizer

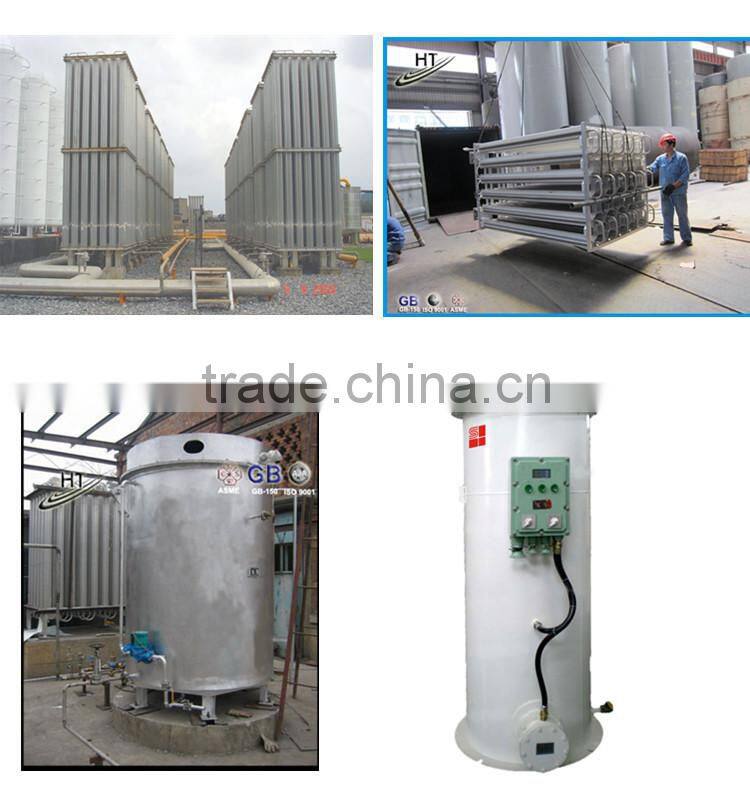

The vaporizer is a kind of industrial gas equipment. Our company offers two types of it: 20-10000m3/h ambient air series and 500-100000m3/h water bath series. The installation, removal and operation are quite easy.
- ambient vaporizer 20~10000Nm3/h
- water-bath vaporizer 500~100000Nm3/h

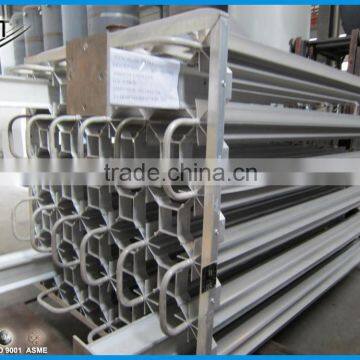

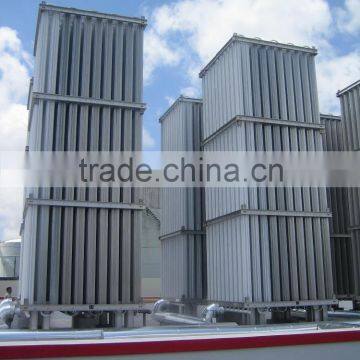

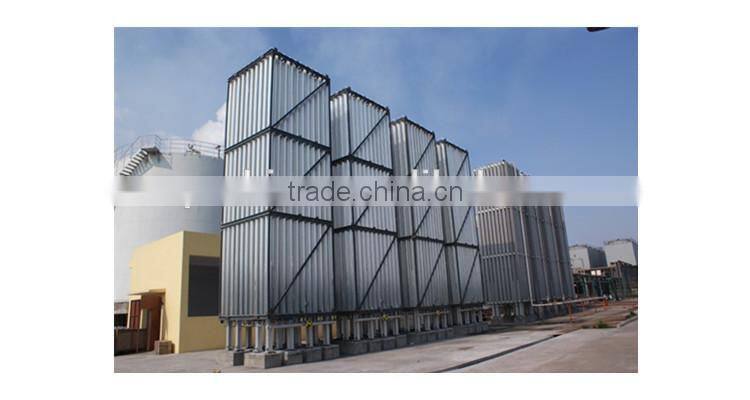

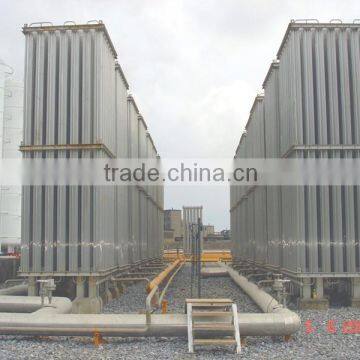

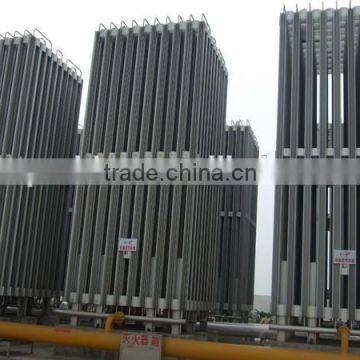

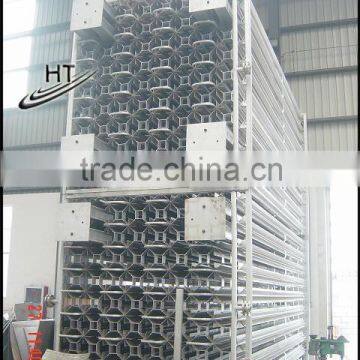

The ambient air vaporizer makes use of natural air convection to heat the cryogenic liquid, making it completely evaporate into gas. It is highly efficient heat exchange equipment that integrates both air exchange and heating features. This evaporator serves as an energy-efficient alternative to heating vaporization devices. It has thickened and strengthened fins, increasing the heat transfer area without the need for additional energy. It is our recommended product.

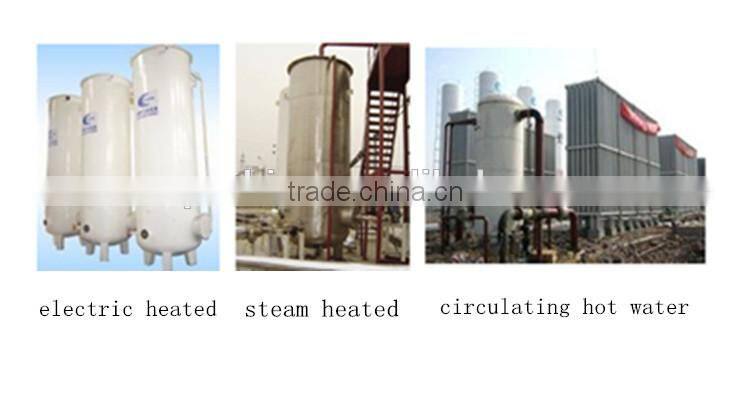

The water bath vaporizer adopts a heat exchange between hot water and cryogenic liquid gas, thus enabling gasification of cryogenic liquid gas. It features compact structure and small footprint. It is also easy to transport and operate.
Suitable medium: liquid oxygen, liquid nitrogen, liquid carbon dioxide, liquid argon, liquid natural gas, liquid petroleum gas, liquid ethylene, liquid ammonia, etc.
Model list of air heated ambient vaporizer
model no |
capacity (Nm3/hr) |
max working pressure Mpa |
Main material |
design pressure Mpa |
empty weight kg |
QQ-50/25 |
50 |
2.45 |
5A02 |
2.5 |
100 |
QQ-60/25 |
60 |
2.45 |
5A02 |
2.5 |
110 |
QQ-70/25 |
70 |
2.45 |
5A02 |
2.5 |
125 |
QQ-80/25 |
80 |
2.45 |
5A02 |
2.5 |
150 |
QQ-100/25 |
100 |
2.45 |
5A02 |
2.5 |
185 |
QQ-100025 |
150 |
2.45 |
5A02 |
2.5 |
245 |
QQ-180/25 |
180 |
2.45 |
5A02 |
2.5 |
330 |
QQ-200/25 |
200 |
2.45 |
5A02 |
2.5 |
350 |
QQ-250/25 |
250 |
2.45 |
5A02 |
2.5 |
405 |
QQ-350/25 |
350 |
2.45 |
5A02 |
2.5 |
560 |
QQ-500/25 |
500 |
2.45 |
5A02 |
2.5 |
610 |
QQ-800/25 |
800 |
2.45 |
5A02 |
2.5 |
1280 |
QQ-1200/25 |
1200 |
2.45 |
5A02 |
2.5 |
2100 |
QQ-1400/25 |
1400 |
2.45 |
5A02 |
2.5 |
2250 |
QQ-1500/25 |
1500 |
2.45 |
5A02 |
2.5 |
2400 |
QQ-1600/25 |
1600 |
2.45 |
5A02 |
2.5 |
2570 |
QQ-1800/25 |
1800 |
2.45 |
5A02 |
2.5 |
2895 |
QQ-2000/25 |
2000 |
2.45 |
5A02 |
2.5 |
3220 |
QQ-2500/25 |
2500 |
2.45 |
5A02 |
2.5 |
3500 |
QQ-3000/25 |
3000 |
2.45 |
5A02 |
2.5 |
4150 |
QQ-4000/25 |
4000 |
2.45 |
5A02 |
2.5 |
5500 |
Model list of water bath vaporizer
model no |
capacity (Nm3/hr) |
max working pressure Mpa |
main material |
empty weight kgs |
QY-30/25 |
30 |
2.5 |
OCr18Ni9/Q235-B |
150 |
QY-50/25 |
50 |
2.5 |
OCr18Ni9/Q235-B |
180 |
QY-150/25 |
150 |
2.5 |
OCr18Ni9/Q235-B |
350 |
QY-400/25 |
400 |
2.5 |
OCr18Ni9/Q235-B |
920 |
QY-500/25 |
500 |
2.5 |
OCr18Ni9/Q235-B |
1330 |
QY-100025 |
1000 |
2.5 |
OCr18Ni9/Q235-B |
1800 |
QY-200025 |
2000 |
2.5 |
OCr18Ni9/Q235-B |
2100 |
QY-3000/25 |
3000 |
2.5 |
OCr18Ni9/Q235-B |
2300 |
QY-4000/25 |
4000 |
2.5 |
OCr18Ni9/Q235-B |
2530 |
QY-6000/25 |
6000 |
2.5 |
OCr18Ni9/Q235-B |
2800 |
QY-8000/25 |
8000 |
2.5 |
OCr18Ni9/Q235-B |
3080 |
QY-10000/25 |
10000 |
2.5 |
OCr18Ni9/Q235-B |
4000 |
QY-150O0/25 |
15000 |
2.5 |
OCr18Ni9/Q235-B |
4800 |
QY-16000/25 |
16000 |
2.5 |
OCr18Ni9/Q235-B |
5240 |
QY-30000/25 |
30000 |
2.5 |
OCr18Ni9/Q235-B |
6000 |
Purchasing Guide
We can offer vaporizers in customized sizes. Please advise the following when sending an enquiry:
1. flow rate
2. medium gas
3. inlet pressure
4. outlet pressure
We also supply like air separation plants, PSA/VPSA, CO2 plants, cryogenic liquid storage tanks (LO2, LN2, LAr, LCO2, LNG and LPG), ISO tanks, semi-trailer tankers, vaporizers, gas filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc.
Wait for your inquiry at any time. Thanks.
