New Vapor Products

Specifications

new vapor products

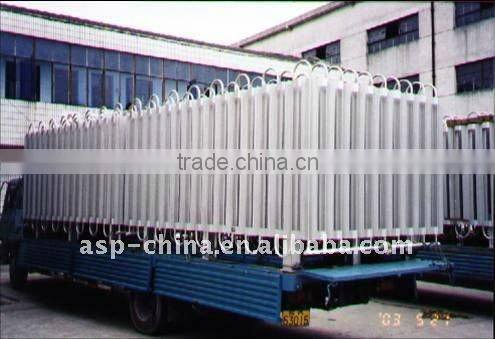

Part 1 Product specification: Air Heated Vaporizer

Product model:QQ-500/165

General technical parameters:

1. Capacity:                                          500Nm³/h

2.Max Outlet Pressure:                         ≤1.65Mpa

3.Medium:                                          LO₂.LN₂.LAr

4.Externality dimension:              ~2854*1610*2428mm

5.Weight:                                            ~1110kg

temp:                                    -196°C

7.Main material:                                      aluminium

8.Inlet Connection:                             DN45

9.Outlet Connection:                          DN50

Product introduction:

The vaporizer is a kind of industrial gas equipment. Our company offers two types of it: 20-10000m³/h ambient air series and 500-100000m³/h water bath series. The installation, removal and operation are quite easy.

The ambient air vaporizer makes use of natural air convection to heat the cryogenic liquid, making it completely evaporate into gas. It is highly efficient heat exchange equipment that integrates both air exchange and heating features. This evaporator serves as an energy-efficient alternative to heating vaporization devices. It has thickened and strengthened fins, increasing the heat transfer area without the need for additional energy. It is our recommended product.

The water bath vaporizer adopts a heat exchange between hot water and cryogenic liquid gas, thus enabling gasification of cryogenic liquid gas. It features compact structure and small footprint. It is also easy to transport and operate.

Suitable medium: liquid oxygen, liquid nitrogen, liquid carbon dioxide, liquid argon, liquid natural gas, liquid petroleum gas, liquid ethylene, liquid ammonia, etc.

part 3 FAQ About Vpaorizer

You are supposed to tell us flowrate,inlet pressure,outlet pressure, inlet/out temperature,etc so that we quote for you accordingly.
