Product Details
| Place of Origin | Jiangxi, China | Brand Name | Renjiang | |
| Model Number | RSM-6kw | Specification | Normal | |
| Application | Home | Output Voltage (V) | 110V,220V,230V,240V | |
| Load Power (W) | Adjustable | Solar Power (W) | Adjustable | |
| Work Time (h) | Adjustable |
Product Description

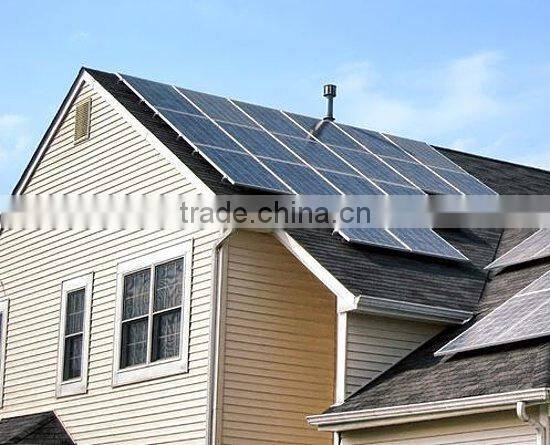

Residential Pitched tile roof solar panel mounting system 6KW
1> Product Description
Off-Grid 6000w Solar Power System Technical Data
Item No. | RSM6000-OFF | |
Capacity | 6000 VA | |
Daily power consumption | Solar radiation 3-5 hours 18KWH-30KWH | |
System voltage | 96V | |
Solar panel | Type | RSM72-156P-300 |
Pmax | 300W | |
Vmp | 36.82V | |
Imp | 8.15A | |
Inverter | SPEC. | 6KW |
Wave form | Pure sine wave | |
Output voltage | AC110V/220V | |
Output Frequency | 50Hz/60Hz | |
Inverter Efficiency | 90% | |
Controller | Rated voltage | 96V |
Rated current | 60A | |
Control mode | PWM | |
Protection | Reverse polarity, overload, reverse charge,etc. | |
Battery | Battery Type | Sealed Gel |
Voltage | 2V | |
Capacity | 300AH | |
Distribution Box | Specification | 5inputs,1output |
Cable | Specification | 10mm2 |
Solar Mounting System | Pitch/Flat Roof/Ground Mounting Type | |
Package Data
Item Name | Description | Quantity |
Solar Panel | RSM72-156P-300 | 20pcs |
Inverter | OFF-grid inverter 6KW | 1pc |
Charge controller | 96V 60A | 1pc |
Battery | 2V 300AH | 48pcs |
Distribution Box | 5inputs,1output | 1pc |
Cable | pv cable 10mm2 | 300m |
Mounting system | Pitch Roof/Flat Roof/Ground Mounting | 6kw |

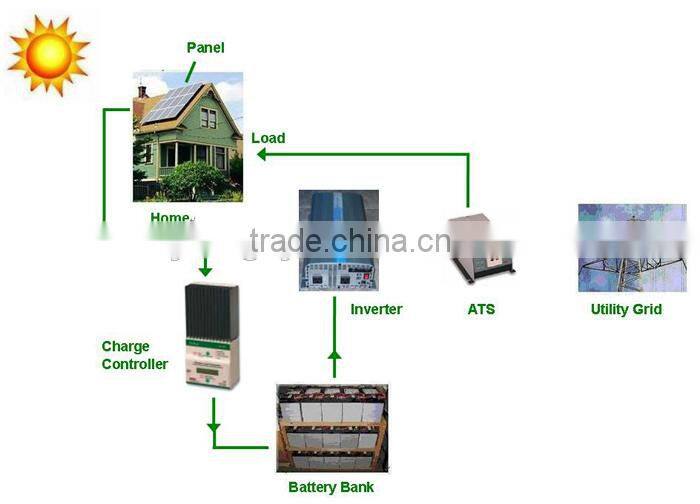

How does it work?
The term off-grid refers to not being connected to a grid, mainly used in terms of not being connected to the main or national electrical grid. In electricity, off-grid can be stand-alone systems (SHS) or mini-grids typically to provide a smaller community with electricity.

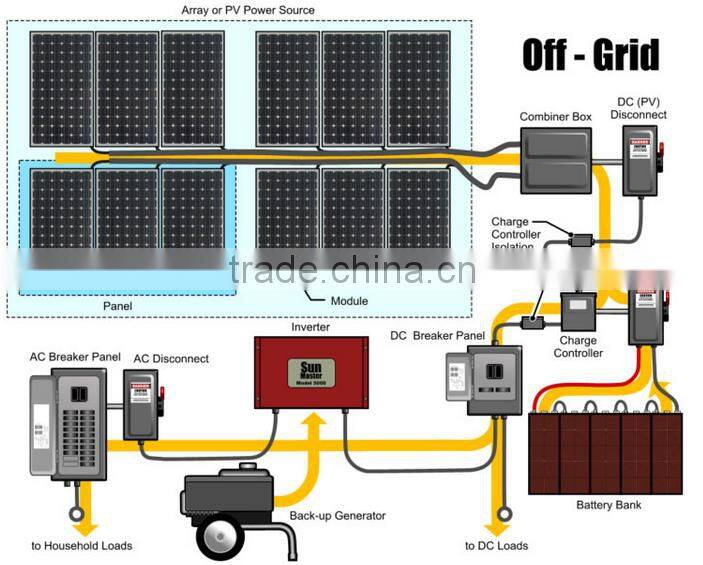

Complete Solar Power Off-Grid System Connection Diagram
More solar system information please click:
1kw 2kw 3kw 4kw 5kw 7kw 8kw 9kw 10kw
T/T, L/C are the payment methods we allow at this time.
5> Company Information
Jiangxi Renjiang Technology Co.,Ltd
· Renjiang is specialized in solar system research and developing, producing and marketing.
· Our company is located in Pingxiang of Jiangxi Province.
· With internationally advanced production equipment, exquisite technical processes and a
strict quality control system.
· All products are approved by ISO9001/14001, TUV, UL, CE& CSA.
· Renjiang has powerful Research Ability, 15~20 new kinds of products are launched each
year.
· Renjiang has annual 200MW solar panel and solar cell production capacity.
