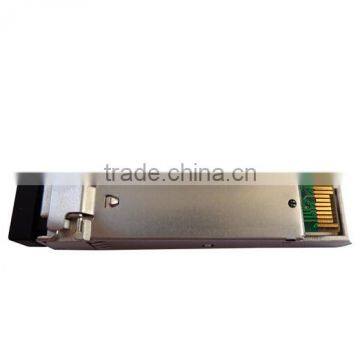

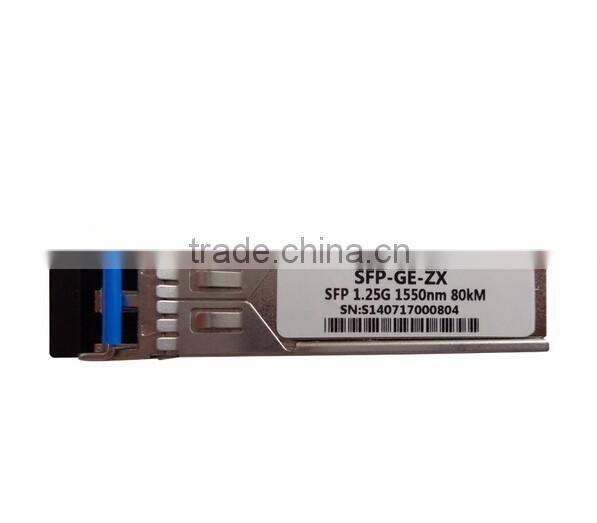

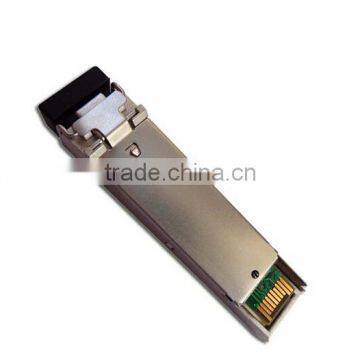

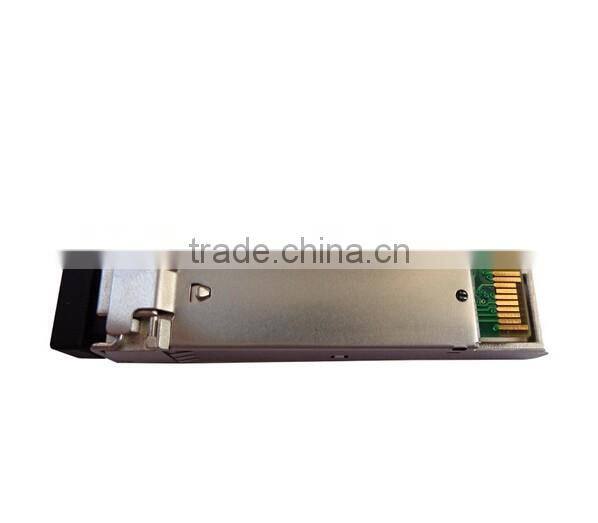

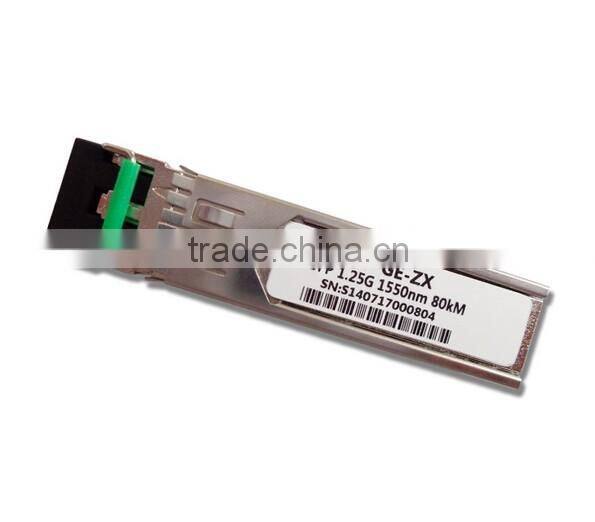

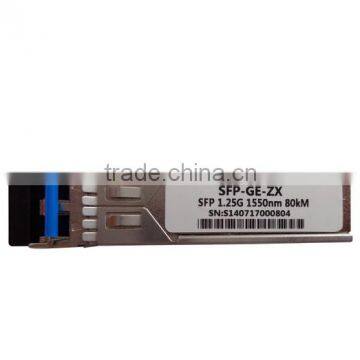

SMF 1.25G 1550nm 80km sfp transceiver module, GLC-ZX-SM 1000Base sfp modules
Description
The module is a small form factor pluggable (SFP) transceiver compatible with multisourcing agreement (MSA). It is suitable for single-mode fiber (SMF) communications in 1.25Gbps Ethernet and 1.06Gbps Fiber Channel.
Features
1.Up to 1.25Gbps data links
2.40km with 9/125µm SMF
3.1310nm FP laser
4.Hot-pluggable SFP footprint
5.Single 3. 3V power supply
6.Operating temperature: 0℃ to 70℃
Applications
1.Gigabit Ethernet
2.Fiber Channel
3.Switch to Switch interface
4.Switched backplane applications
5.Router/Server interface
6.Other optical transmission systems
Specifications
Parameter | Symbol | Min. | Typical | Max. | Unit |
Transmitter | |||||
Centre Wavelength | λc | 1260 | 1310 | 1360 | nm |
Spectral Width (RMS) | σ |
|
| 4 | nm |
Average Output Power | Pout | -5 |
| 0 | dBm |
Extinction Ratio | EX | 9 |
|
| dB |
Optical Rise/Fall Time | tr/tf |
|
| 1 | ns |
Receiver | |||||
Centre Wavelength | λc | 1200 | 1310 | 1600 | nm |
Receiver Sensitivity | PIN |
|
| -22 | dBm |
Receiver Overload | Pmax | -3 |
|
| dBm |
LOS De-Assert | LOSD |
|
| -25 | dBm |
LOS Assert | LOSA | -35 |
|
| dBm |
LOS Hysteresis |
| 0.5 |
| 4.5 | dB |
