Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > FC 100Base Fiber Optical Transceiver, Good Price Cctv Fiber Media Converter

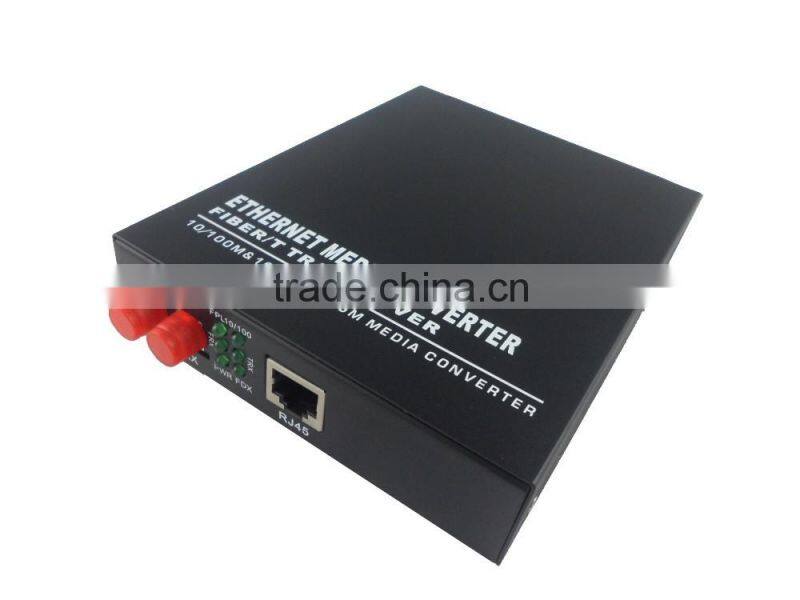

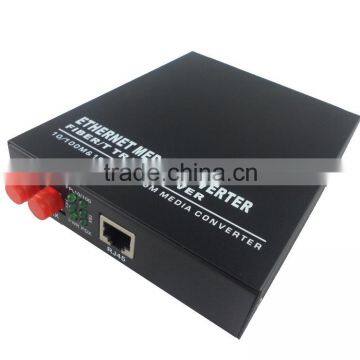

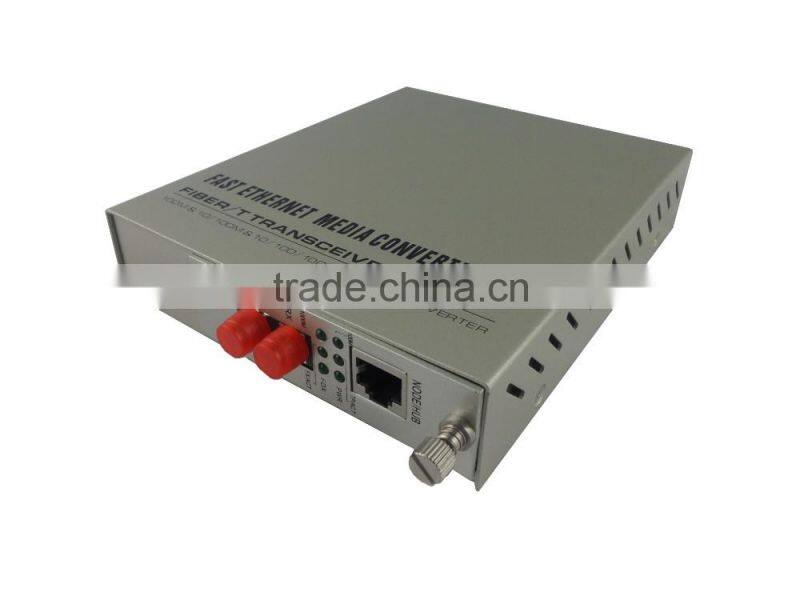

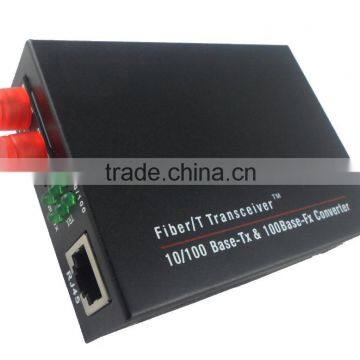

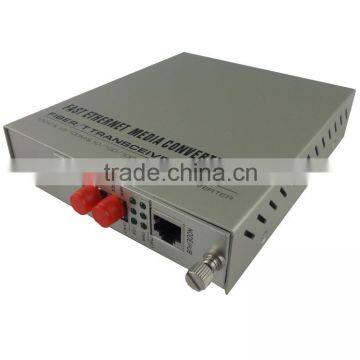

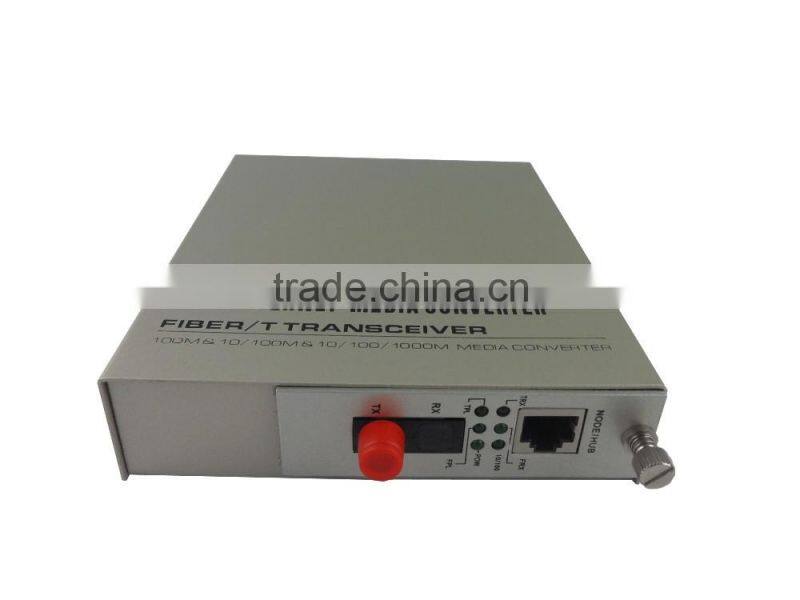

FC 100Base Fiber Optical Transceiver, Good Price Cctv Fiber Media Converter

FC 100Base Fiber Optical Transceiver, Good Price Cctv Fiber Media Converter thumbnail-3

FC 100Base Fiber Optical Transceiver, Good Price Cctv Fiber Media Converter thumbnail-4

FC 100Base Fiber Optical Transceiver, Good Price Cctv Fiber Media Converter photo-1

FC 100Base Fiber Optical Transceiver, Good Price Cctv Fiber Media Converter photo-2

FC 100Base Fiber Optical Transceiver, Good Price Cctv Fiber Media Converter photo-3

FC 100Base Fiber Optical Transceiver, Good Price Cctv Fiber Media Converter photo-4

US$ 10 - 20 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

Media Converter

Contact Supplier Request Quote Chat Now

Shenzhen BLH Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number Media Converter

FC 100Base fiber optical transceiver, good price cctv fiber media converter

Description

Media Converter is 10/100/100Mbps fast Ethernet converter. The converter mediates between a 10/100/1000

BaseTX segment and a 100BaseFX segment. It is primarily designed for large, higher speed/bandwidth

demanding work groups that require expansion of the Ethernet network. It can extend the conventional 10M

Ethernet or 10/100M Fast Ethernet to 20Km120Km via the fast Ethernet Fiberoptical Line. It is high

performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.

Features

1. Half or full duplex auto-negotiation.

2. 10/100/1000 Mbps auto-negotiation for copper port.

3. Plug-and-play installation.

4. SC/FC/ST fiber port optional
5. External power supply.
6.Easy-to-view LED Indicators

Applications

1.Gigabit Ethernet

2.Fiber Channel

3.Other optical transmission systems

4. Integrated transport network point

5.Computer data transmission network to meet a variety of business needs

Specifications

Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x
	FX Link/Act(Fiber link connection status), TX Link/Act(Electric link connection status )
Wavelength	1300nm/1310nm/1550nm
Transmission distance	Dual-fiber multi-mode: 2Km; Dual-fiber single-mode: 25/40/60/80/100/120Km; Single-fiber single-mode: 25/40/60/80/100Km Cat5e/6 twisted pairs: 100m
Port	One RJ45 ports: Connected to STP/UTP Cat5e/6 twisted pairs One fiber port: Multi-mode SC or ST (fiber size: 50/125um,62.5/125um) Single mode SC fiber port (fiber size: 9/125um) Single-fiber single-mode SC fiber port (fiber size: 9/125um)
Conversion Mode	Medium conversion, storing and forwarding mode
MAC address table	1K
Buffer space	1Mbit
Flow control	Full duplex state: flow control; half-duplex state: back pressure mode
Delay	<9.6s
Bit error rate	<1/1000000000
MTBF	100,000hours
LED Indicator	PWR (power), FDX (FX full duplex or half duplex mode) FX100(Transfer rate of optical interface), TX100(Transfer rate of electric interface ) FX Link/Act(Fiber link connection status), TX Link/Act(Electric link connection status )
Power	DC5V/1A (External), AC220V 0.5A/DC-48V (Built-in)
Operating temperature	-10~55°C
Operating humidity	5%~90%
Storage temperature	-40~70°C
storage humidity	5%~90% (non-condensing)
Dimensions	External power supply: 26mm70mm95mm (HDW)
	Built-in power supply: 35mm110mm140mm (HDW)

Pictures

Payment and Delievery

Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable

Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
