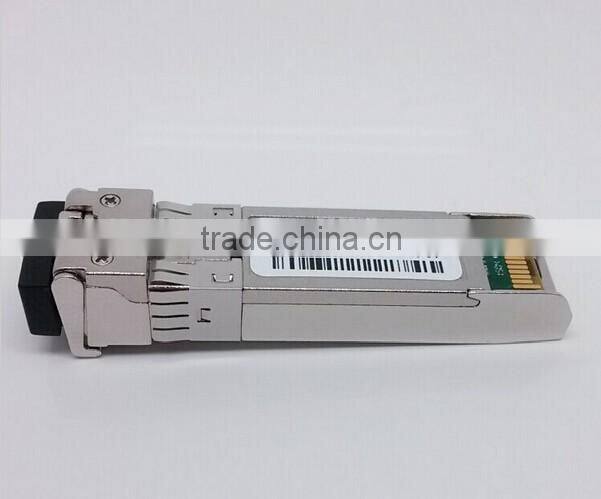

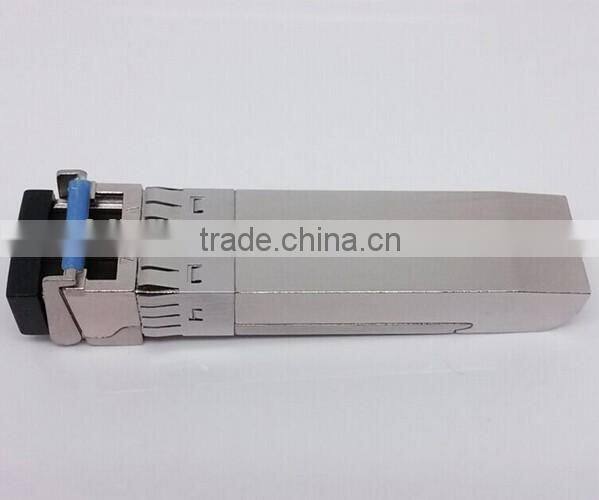

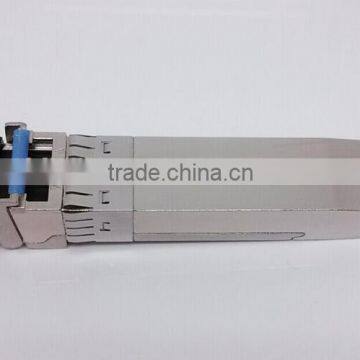

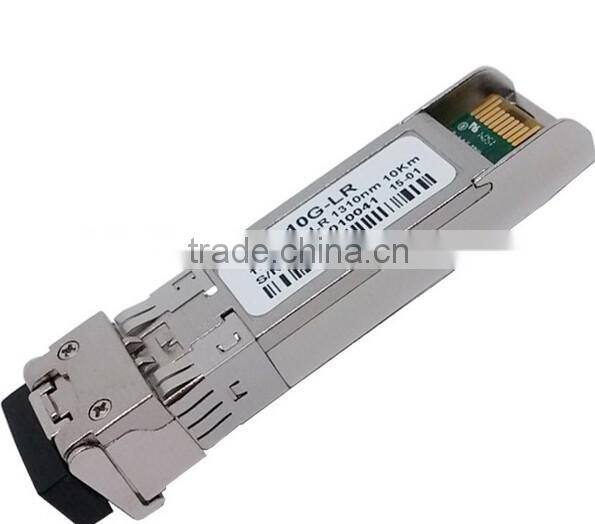

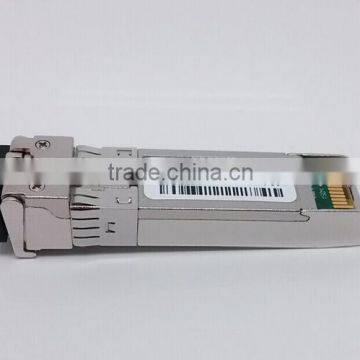

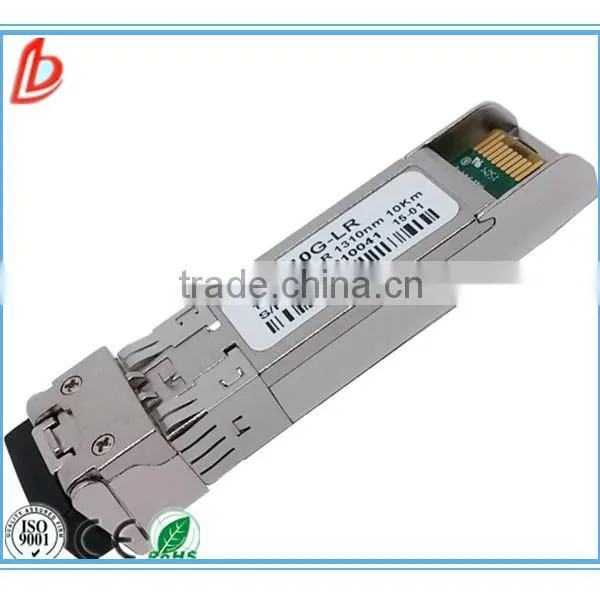

SFP-10G-LR 1310nm sfp transceiver module, sfp transceiver module
Description
The module is a small form factor pluggable (SFP) transceiver compatible with multisourcing agreement (MSA). It is suitable for single-mode fiber (SMF) communications in 1.25Gbps Ethernet and 1.06Gbps Fiber Channel.
Features
1.Up to 1.25Gbps data links
2.40km with 9/125µm SMF
3.1310nm FP laser
4.Hot-pluggable SFP footprint
5.Single 3. 3V power supply
6.Operating temperature: 0℃ to 70℃
Applications
1.Gigabit Ethernet
2.Fiber Channel
3.Switch to Switch interface
4.Switched backplane applications
5.Router/Server interface
6.Other optical transmission systems
Specifications
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Transmitter | |||||
Centre Wavelength |
λc |
1260 |
1310 |
1360 |
nm |
Spectral Width (RMS) |
σ |
|
|
4 |
nm |
Average Output Power |
Pout |
-5 |
|
0 |
dBm |
Extinction Ratio |
EX |
9 |
|
|
dB |
Optical Rise/Fall Time |
tr/tf |
|
|
1 |
ns |
Receiver | |||||
Centre Wavelength |
λc |
1200 |
1310 |
1600 |
nm |
Receiver Sensitivity |
PIN |
|
|
-22 |
dBm |
Receiver Overload |
Pmax |
-3 |
|
|
dBm |
LOS De-Assert |
LOSD |
|
|
-25 |
dBm |
LOS Assert |
LOSA |
-35 |
|
|
dBm |
LOS Hysteresis |
|
0.5 |
|
4.5 |
dB |

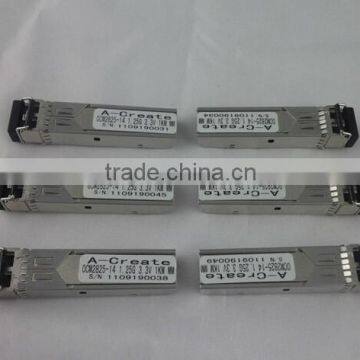

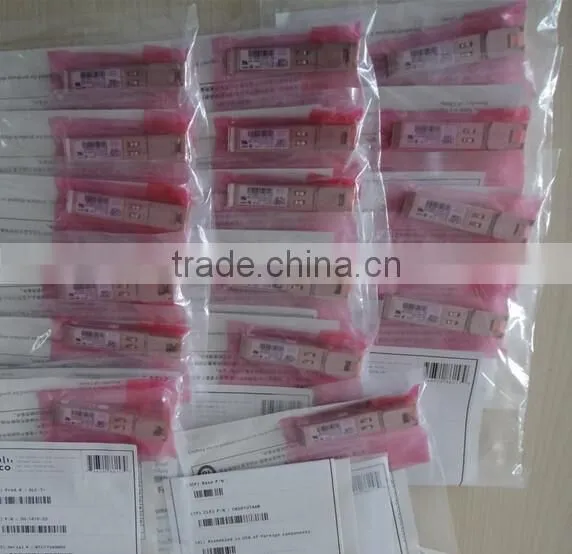

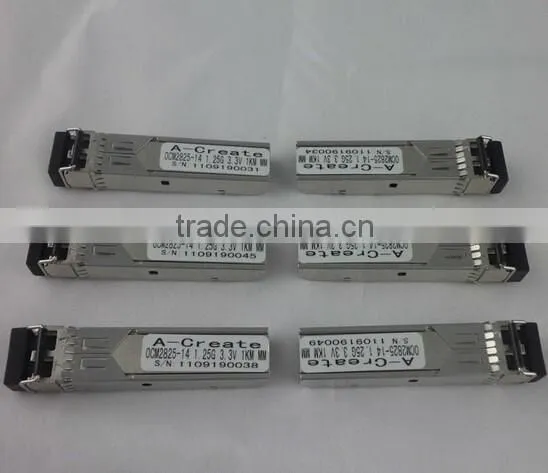

pictures
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
