optical fiber protection sleeves /fiber optic heat shrink tube with stainless needle inside
Description:
1.Introduction:
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.
The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).
2.Features:
1.Operating Temperature:-45 degree - 125 degree;
2.Shrink Temperature:120 degree;
3.Longnitudinal Shrink ratio≤±8%;
4.Waterproof, RoHS compliant.
3.Specification:
Shrinking Temperature (°C) |
110 ~ 130 |
Radial Shrinking Rate (%) |
>50 |
Axial Shrinking Rate (%) |
<10 |
Low Temperature Property |
No crackle at -55°C lasting 4 hours |
Normal Operation Temperature (°C) |
-45°C ~ + 105°C |
Normal Operature Relative Humidity |
≤95% |
Spark- over Strength (kV/mm) |
≥20 |
Tensile Strength (Mpa) |
20 |
Loss at -40°C |
0.03dB |
Loss at +60°C RH95% |
0.02dB |

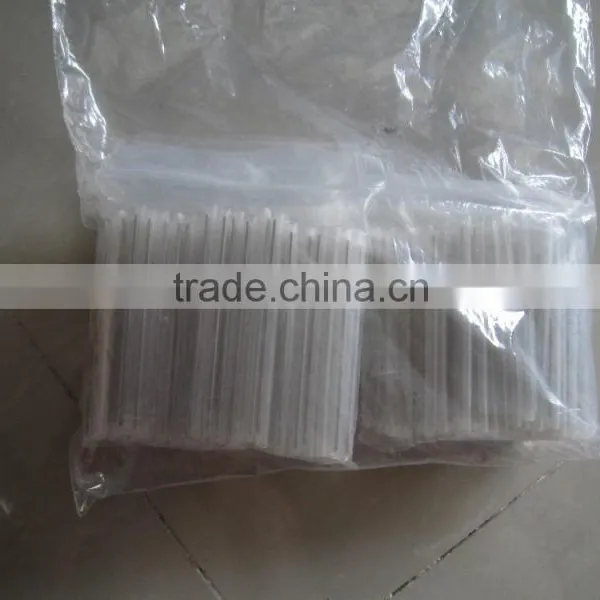

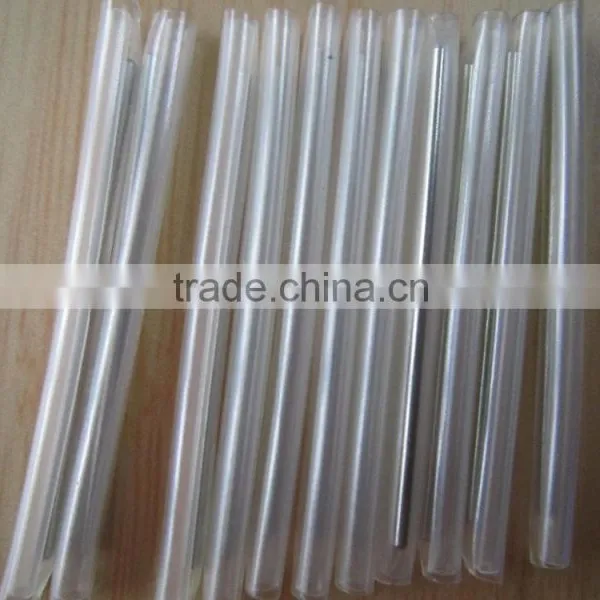

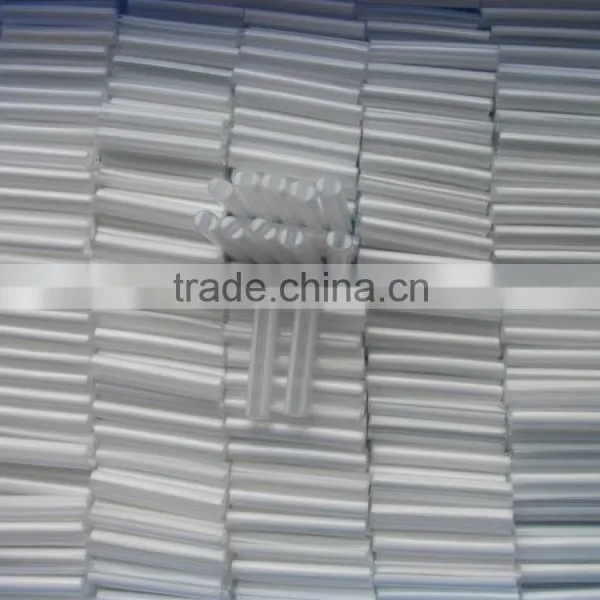

Pictures:
