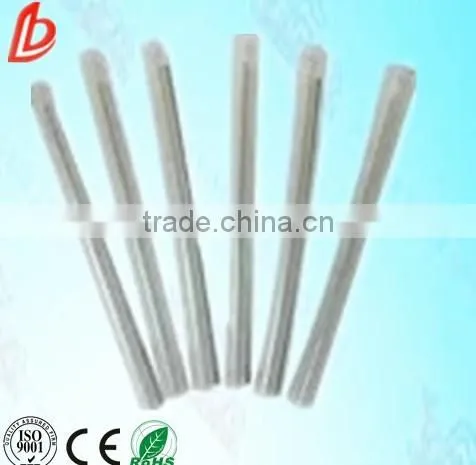

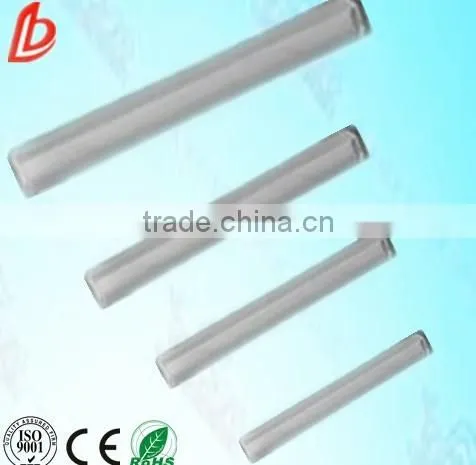

60mm 50mm 45mm 40mm 30mm 20mm fiber optic heat shrink tube
Description:
The product contains cross linked polyolefin, hot fusion tubing and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve makes it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.
Features:
1. Operating Temperature:-45 degree - 125 degree;
2. 2.Shrink Temperature:120 degree;
3.Longnitudinal Shrink ratio≤±8%;
4. Waterproof, RoHS compliant.
Applications:
Consist of a rod of reinforcing the splice, hot fusion tubing and cross-linked polyolefin.
To rebuild the coating of fiber to provide mechanical strength at the fusion joint area and keep optical transmission properties.
Performance Index:
Performance |
Test Method |
Typical data |
Tensile strength |
ASTM D 2671 |
18MPa |
Elongation at break |
ASTM D 2671 |
700% |
Density |
ISO R1183D |
0.94g/cm3 |
Dielectric strength |
IEC243 |
25KV/mm |
volume resistance |
IEC243 |
1015Ω.cm |
Length changes |
ASTM D 2671 |
±5% |
pictures:
Our company:
Payment and Delievery:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
