Specifications
optical heat shink tube1.60mm/45mm/40mm
2.100% professional factory
3.CE,ROHS certificated
4.free samples provided

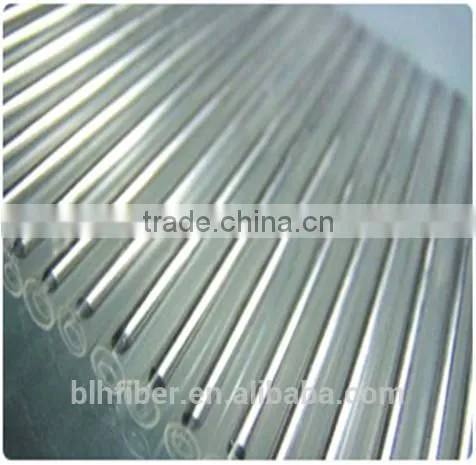

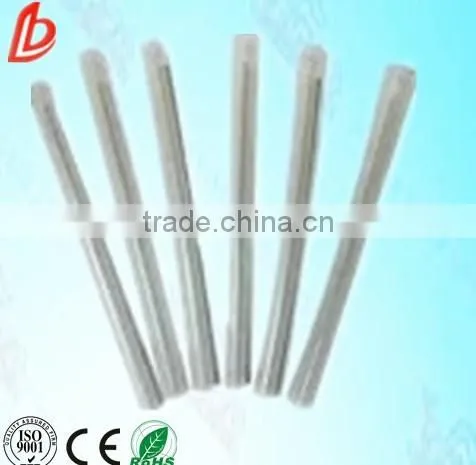

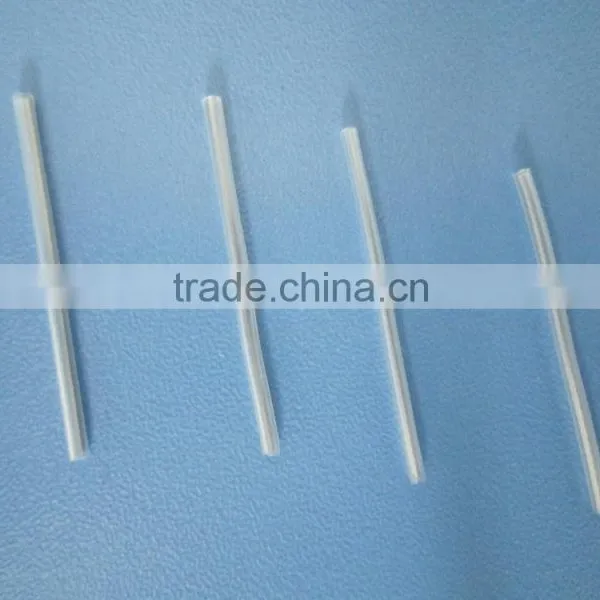

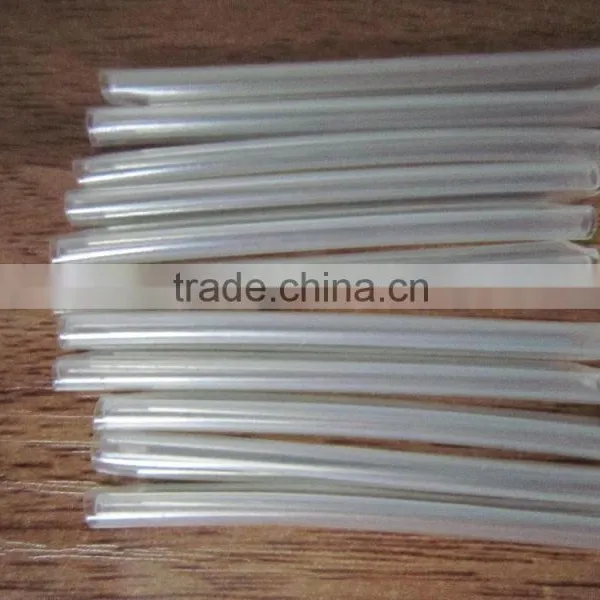

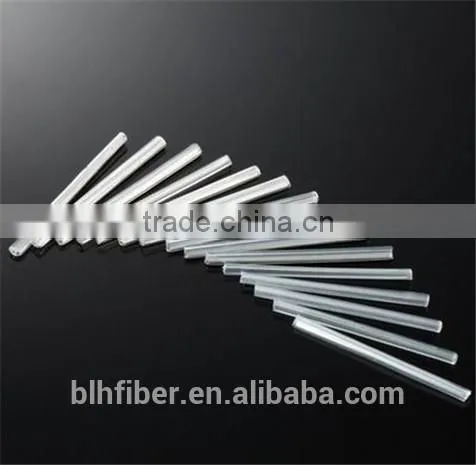

Optical Fiber Heat Shrink splicing protection Sleeve, fiber heat tube
Specifications
1.Operating Temperature:-45 degree - 125 degree;
2.Shrink Temperature:120 degree;
3.Longnitudinal Shrink ratio≤±8%;
4.Waterproof, RoHS compliant.
Features:
The product contains cross linked polyolefin, hot fusion tubing and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve makes it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.
Shrinking Temperature (°C) |
110 ~ 130 |
Radial Shrinking Rate (%) |
>50 |
Axial Shrinking Rate (%) |
<10 |
Low Temperature Property |
No crackle at -55°C lasting 4 hours |
Normal Operation Temperature (°C) |
-45°C ~ + 105°C |
Normal Operature Relative Humidity |
≤95% |
Spark- over Strength (kV/mm) |
≥20 |
Tensile Strength (Mpa) |
20 |
Loss at -40°C |
0.03dB |
Loss at +60°C RH95% |
0.02dB |
Description:
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

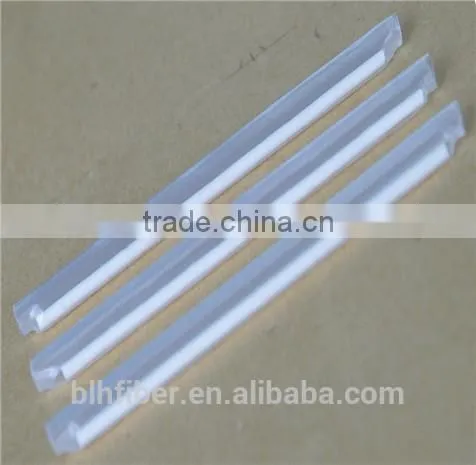

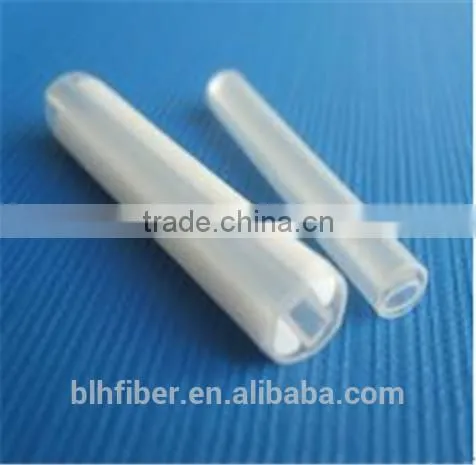

The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.
Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).
Mass type sleeve materials
Hot melt adhesive
Ceramic reinforcement member
Heat shrinkable tube
Single type sleeve materials
Hot melt adhesive
Heat shrinkable polyolefin
Stainless steel needle
Pictures:
Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
