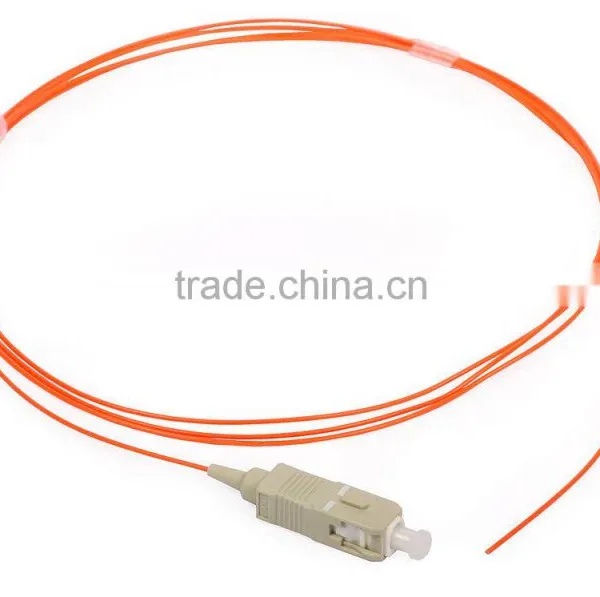

9/125 SM sc/pc optic pigtail,sc/upc fiber optic cable pigtailSpecifications
1.Cable Diameter:0.9mm,2mm,3mm
2.Single-mode cable:yellow,white
3.PVC, LSZH,single mode,multimode
Features:
1.Low insertion loss, high return loss
2.High dense connection, easy for operation
3.High credibility and stability
4.Good in repeatability and exchangeability
Applications:
1.Testing equipment
2.FTTX+LAN
3.Optical fiber CATV
4.Optical communication system
5.Telecommunication
Description
Parameter |
Unit |
FC, SC, LC/ Armoured fiber pigtail |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
Operating temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
Storage temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
Cable diameter |
mm |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
||||||||
