Specifications
FC 12 Core fiber optic pigtail1.Low Insertion Loss ,High Return Loss
2.Good Exchangeability
3.High Temperature Stabilit

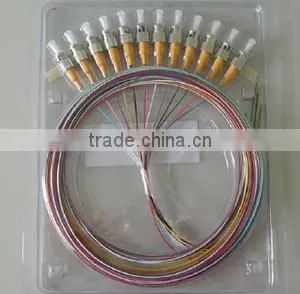

China supplier FC 12 core waterproof Optical fiber pigtail Ribbon 12 core fiber optic pigtail /bundle cable
1.Description:
A patchcord is a fiber optic cable used to attach one device to another for signal routing.
Two ends with connectors be named patchcord or jumpter , only one end with the connector be named pigtail.
SC stands for Subscriber Connector- a general purpose push/pull style connector.
It is a square, snap-in connector latches with a simple push-pull motion and is keyed.
2.Features:
1.Low insertion loss, high return loss
2.High dense connection, easy for operation
3.High credibility and stability
4.Good in repeatability and exchangeability
3.Applications:
1.Testing equipment
2.FTTX+LAN
3.Optical fiber CATV
4.Optical communication system
5.Telecommunication
4.Specifications:
High temperature stability
| SPECIFICATIONS | ||||||
| Items | Single mode | Multimode | ||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
| Insertion Loss | < 0.2dB | < 0.3dB | ||||
| Return Loss | ≥ 45dB | ≥ 50dB | ≥ 60dB | ≥ 35dB | ||
| Durability | < 0.1dB typical change, 1000 times |
|||||
| Operating Temperature | -40 to +75 | -40 to +75 | ||||
| Ferrule Hole Sizes | 125.0+1/-0um, Conentricity: ≤ 1um | 125um, Conectricity: 1≤ 3um | ||||
| 125.3+1/-0um, Conentricity: ≤ 1um | 127um, Conectricity: 1≤ 3um | |||||
| 125.5+1/-0um, Conentricity: ≤ 1um | 128um, Conectricity: 1≤ 3um | |||||
| 126.0+1/-0um, Conentricity: ≤ 1um | ||||||
5.Pictures:
6.Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
