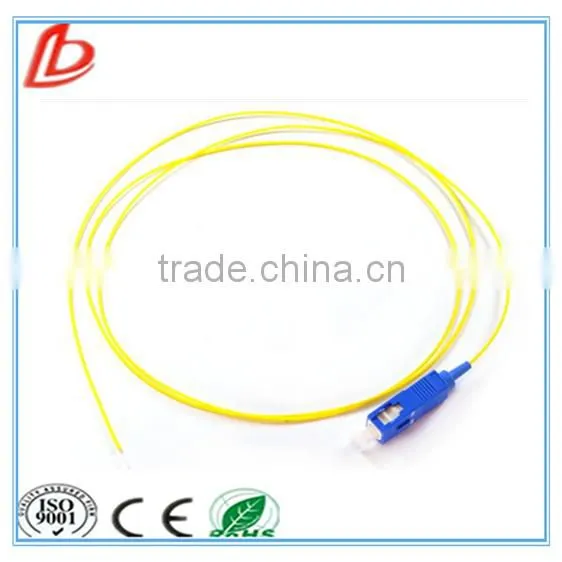

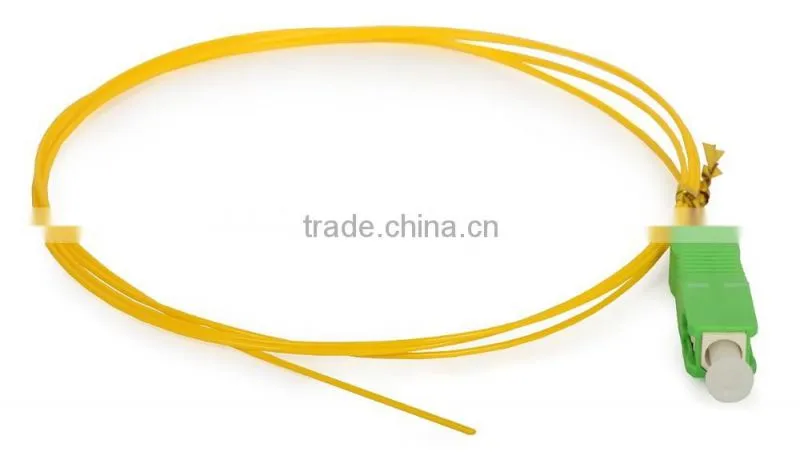

SC PC/APC 0.9mm SM MM fiber optic pigtail, optical fiber pigtail cord
1.Description:
The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with
connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber
cable with only one connector fixed on one end. If both sides of the connector or its end-face are
different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode
and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,
LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
2.Features:
Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
3.Applications:
Optic-fiber Communication Systems
Optic-fiber Data Communications
Optic-fiber Access Networks
Optic-fiber CATV
LAN
Test Equipment
Optic-fiber Sensors
4.Specifications:
Item |
Mode Type |
PC |
SPC |
UPC |
APC |
Insertion Loss |
SM |
≤0.25dB |
≤0.20dB |
≤0.20dB |
≤0.20dB |
MM |
≤0.30dB |
≤0.20dB |
≤0.20dB |
≤0.30dB |
|
Return Loss |
SM |
≥45dB |
≥50dB |
≥55dB |
≥65dB |
MM |
≥35dB |
≥35dB |
≥35dB |
≥35dB |
|
Repetition Test |
Additional Loss≤0.1dB,Reture Loss Variability<5dB |
||||
Temperature Stability(-40°C~85°C) |
Additional Loss≤0.2dB,Reture Loss Variability<5dB |
||||
Operating Temperature |
-40°C~+75°C |
||||
Storage Temperature |
-40°C~+85°C |
||||
-Option:CableDiameters;0.9,2mm,3mm&others |
|
|
|
||
-Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR |
|
||||
5.Pictures:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
Why we can choose you?
1): Reliable---we are the real company, we dedicate in win-win
2): Professional---we offer the products exactly you want
3): Factory---we have factory, so have reasonable price
How about the shipping cost?
If your goods is not large, we can send goods to you via counier, such as FEDEX, DHL,we cooperated with them for long time, so we have good price.If your goods is large, we will send to you via sea, we can quote the price to you, then you can choose whether use our forwarder or yours.
How about the price?Can you make it cheaper?
The price depends on the item your demand(quantity)
Beat quotation after receving full description of the item you want.
How about the sample time?What is the payment?
Sample time:3~10days after order & samples confirmed.
T/T,30% deposit, and balance is after the order is finished. Also we accept the PAYPAL, west union.
If to your satisfaction,why not send me a inquiry now!
Send your Inquiry Details in the Below for free sample, Click "Send" Now!
( My skype : powerbank8 whatsapp&mobile:(86)13128764217)
