Specifications
lc/apc fiber optic pigtail1.Low Insertion Loss ,High Return Loss
2.Good Exchangeability
3.High Temperature Stabilit

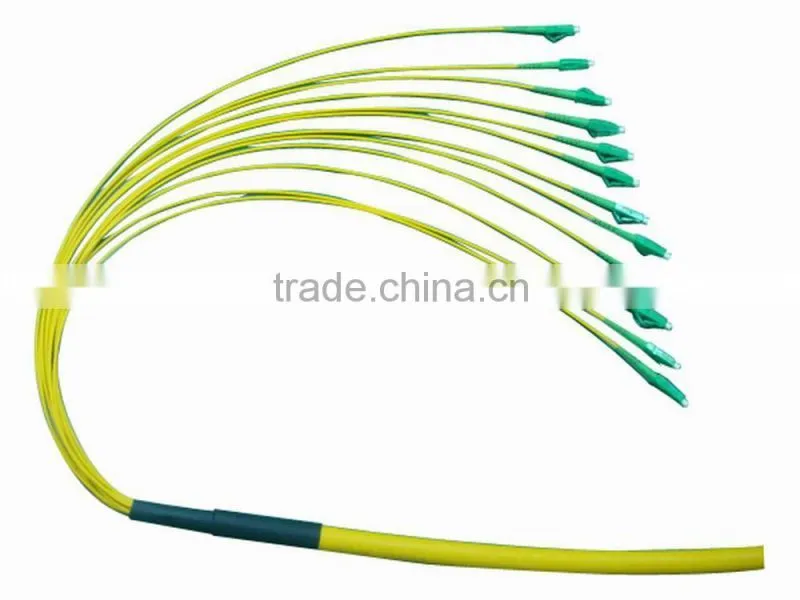

Good price LC/APC SM singlemode 0.9mm fiber optic pigtail lc optical fiber pigtail &patch cord
1.Description:
The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with
connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber
cable with only one connector fixed on one end. If both sides of the connector or its end-face are
different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode
and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,
LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
2.Features:
Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
3.Applications:
FTTH, LAN, Test equipment, Military industryCATVOutside plantPremise networksAerial distributionMeasuring equipmentsFiber optic communication systemOptical active component and equipment
Specification:
Parameters |
Standard Fiber Cable Assemblies |
|
Fiber Type |
SM(G.652/G.657A) |
MM(OM1/OM2/OM3) |
Jacket Materials |
LSZH/OFNR/PVC |
|
Connector Type |
SC/LC/ST/LC/MU/MTRJ/MPO/E2000 |
|
Ferrule Materials |
Ceramic |
|
Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
Insertion Losss(dB) |
≤ 0.3dB |
≤ 0.3dB |
Return Loss(dB) |
≥45dB(PC/UPC) |
≥35dB(PC/UPC) |
Exchangeability |
≤ 0.2dB |
|
Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patchcord |
|
Operating Temperature (° C) |
-10~ + 70 |
|
Storage Temperature (° C) |
-40 ~ +85 |
|
Package |
1unit/bag |
|
*All values specified are with connectors. | ||

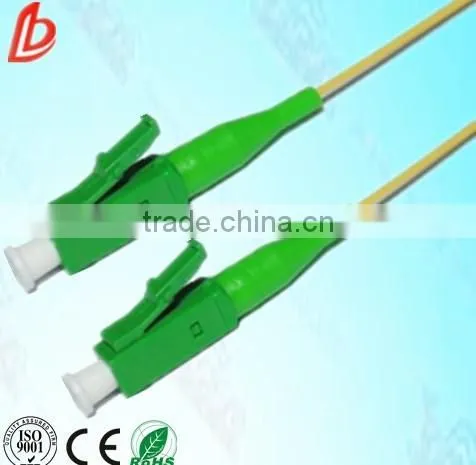

Pictures:
6.Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
