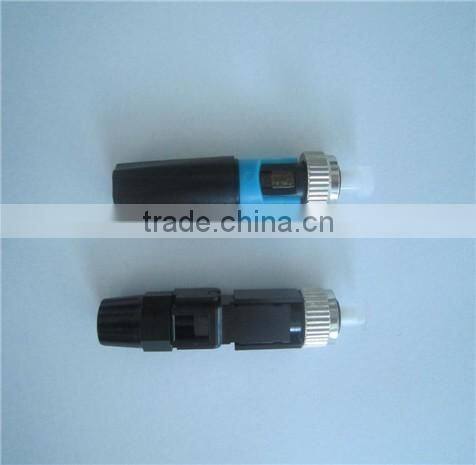

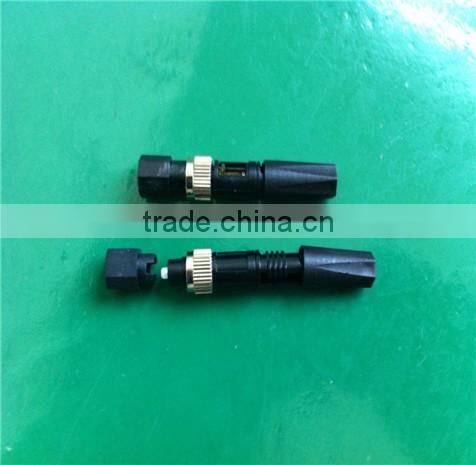

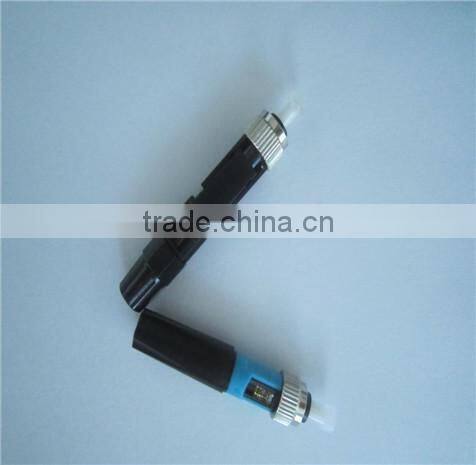

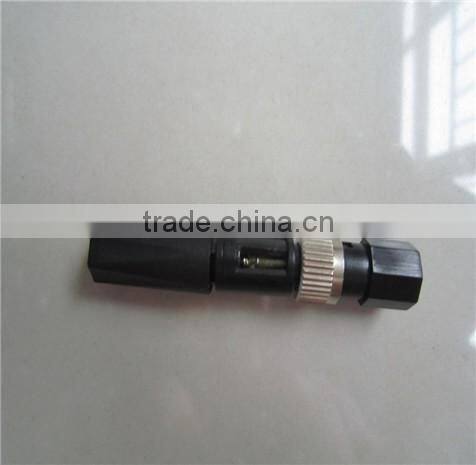

Shenzhen Factory Supply low price FC Fiber optic fast connector,quick assembly connector,field assembly connector
Description:
Fiber optic connectors designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open
flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.It is designed for high quality and high efficiency for installation.the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.adopted fiber pre-installed
structure,and convenient for field installation.
Features:
1. Easy to assemble and disassemble
2. Precision mechanical alignment ensures
3.Low insertion lossand High return loss
4. Can be used many times, reduce cost
5. Good repeatability and exchangeability
6. Pre-stubbed, factory-polished ferrule
Applications :
1. Connections at the desk for LAN environments
2. Optical access network
3. Fiber to the Subscriber (FTTX) applications
4. Patch panels
5. Direct equipment termination
Specifications:
ITEM |
Technical Parameters |
Application |
FTTH indoor&outdoor |
Optical fiber diameter |
125μm ( 657A & 657B ) |
Tight buffer diameter |
250μm |
Fiber mode |
Single mode |
Operation time |
About 100s(no fiber cut) |
Insertion loss |
≤ 0.2dB(1310nm & 1550nm) |
Return loss |
≤ -50dB |
Fastening strength of naked fiber |
>5 N |
Fastening strength of naked fiber holder |
>10 N |
Tensile strength |
>50 N |
On-line tensile strength (20 N) |
Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Mechanical durability (500 times) |
Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Using temperature |
-40~+75°C |
pictures:
1.Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
2.Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
Why we can choose you?
1): Reliable---we are the real company, we dedicate in win-win
2): Professional---we offer the products exactly you want
3): Factory---we have factory, so have reasonable price
How about the shipping cost?
If your goods is not large, we can send goods to you via counier, such as FEDEX, DHL,we cooperated with them for long time, so we have good price.If your goods is large, we will send to you via sea, we can quote the price to you, then you can choose whether use our forwarder or yours.
How about the price?Can you make it cheaper?
The price depends on the item your demand(quantity)
Beat quotation after receving full description of the item you want.
How about the sample time?What is the payment?
Sample time:3~10days after order & samples confirmed.
T/T,30% deposit, and balance is after the order is finished. Also we accept the PAYPAL, west union.
