New FTTH sc apc 0.9mm sm fiber optic fast connector
Description:
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.It is designed for high quality and high efficiency for installation.the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.adopted fiber pre-installed structure.
Features:
1. Easy to assemble and disassemble
2. Precision mechanical alignment ensures
3.Low insertion lossand High return loss
4. Can be used many times, reduce cost
5. Good repeatability and exchangeability
6. Pre-stubbed, factory-polished ferrule
Applications :
1. Connections at the desk for LAN environments
2. Optical access network
3. Fiber to the Subscriber (FTTX) applications
4. Patch panels
5. Direct equipment termination
Specifications:
ITEM |
Technical Parameters |
Applicable for |
3.1 x 2.0 mm Drop cable |
Optical fiber diameter |
125μm ( 657A & 657B ) |
Tight buffer diameter |
250μm |
Fiber mode |
Single mode |
Operation time |
About 100s(no fiber cut) |
Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
Return loss |
≤ -40dB |
Fastening strength of naked fiber |
>5 N |
Fastening strength of naked fiber holder |
>10 N |
Tensile strength |
>50 N |
Using temperature |
-40~+75°C |
On-line tensile strength (20 N) |
IL ≤ 0.2dB , RL ≤ 5dB |
Mechanical durability (500 times) |
IL ≤ 0.2dB , RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
IL ≤ 0.2dB , RL ≤ 5dB |

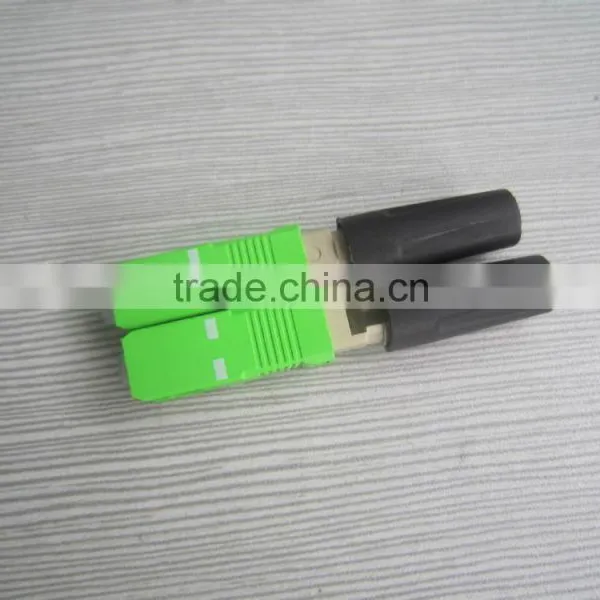

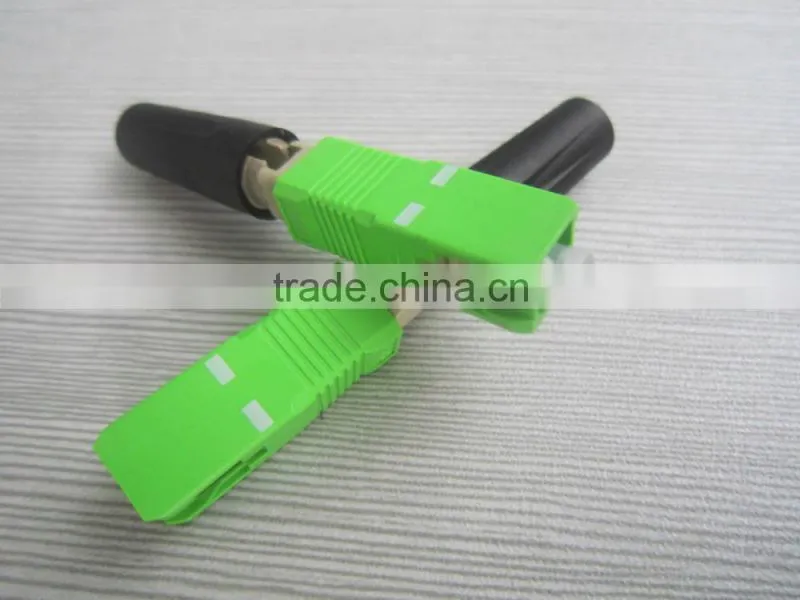

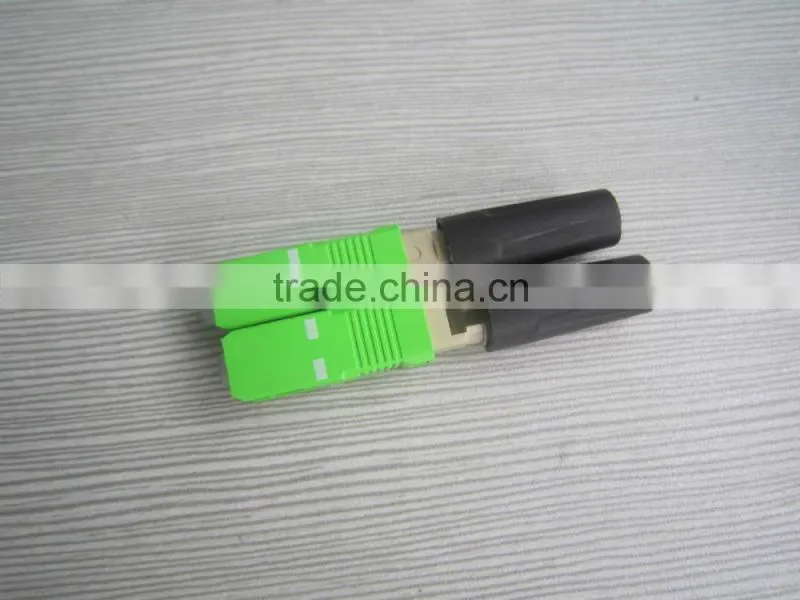

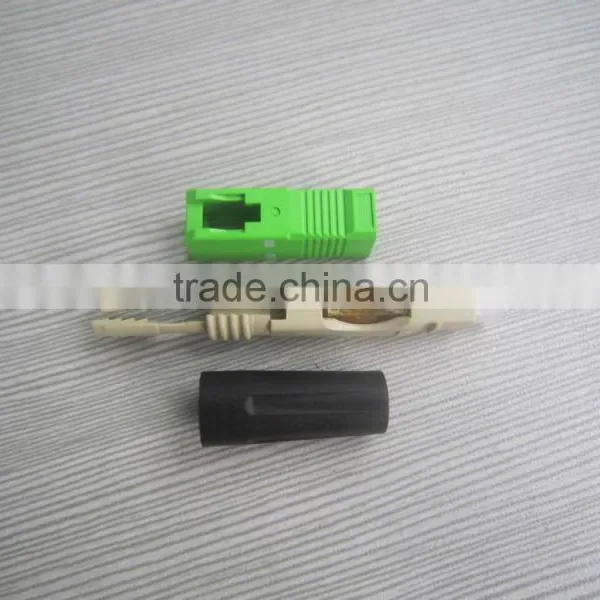

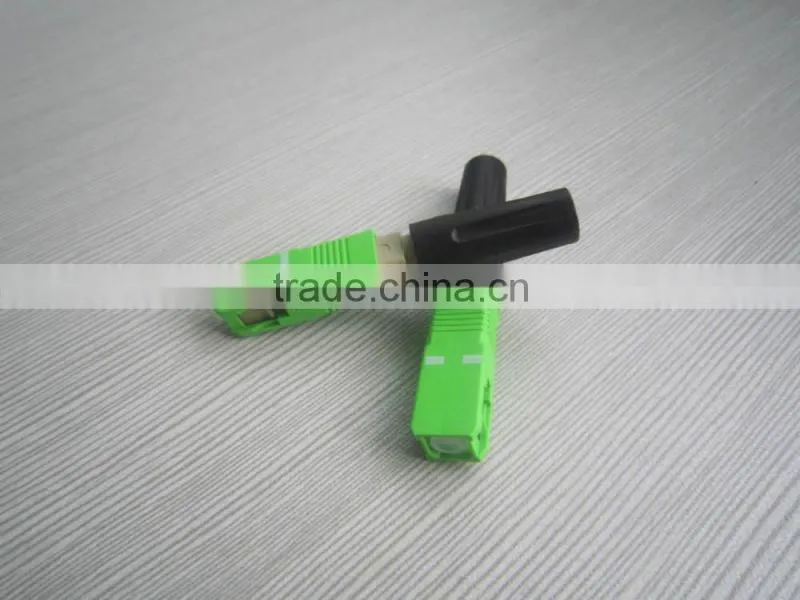

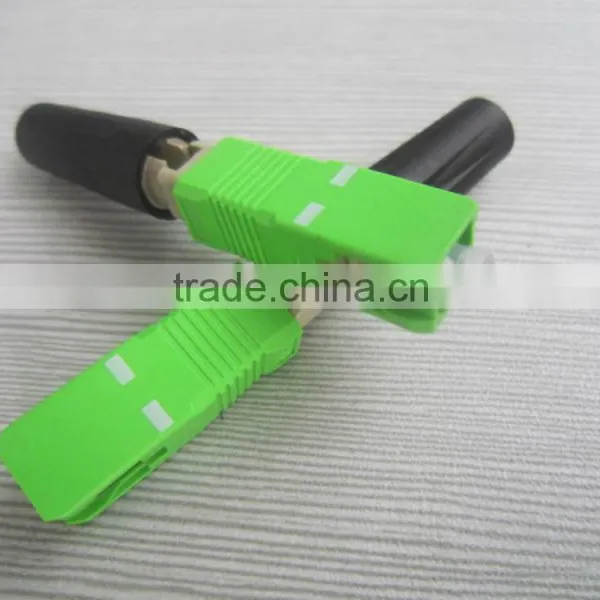

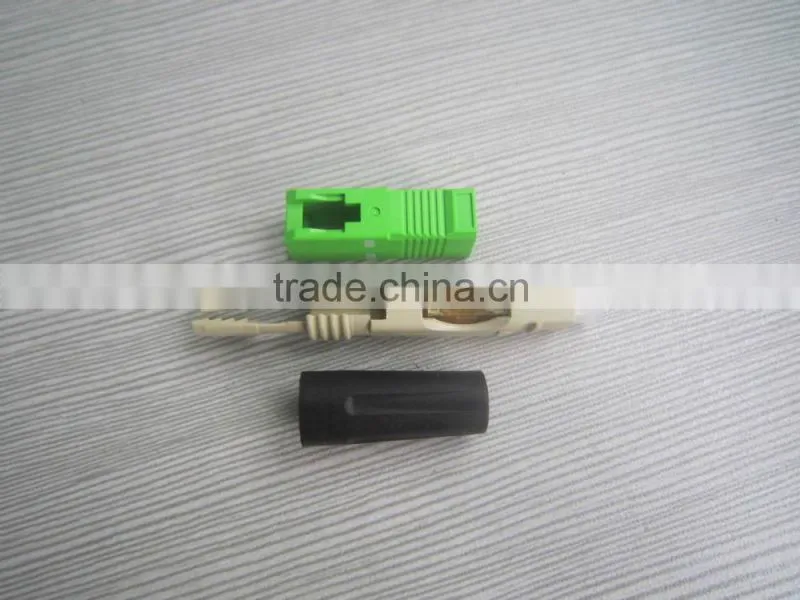

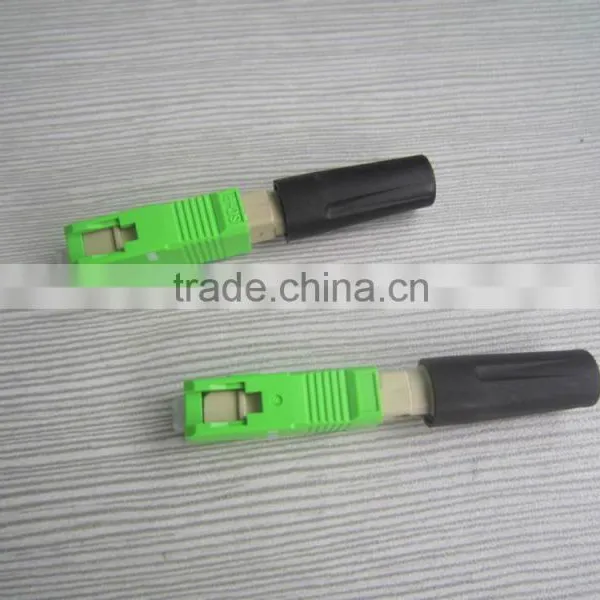

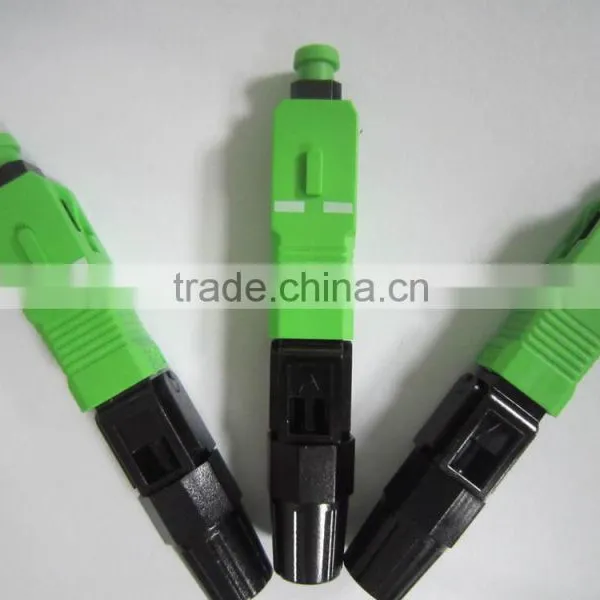

Pictures:
Payment and Delievey:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
