Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > 8 Core Non-metallic Strength Member Armored Cable, GYFTA53 Fiber Optic Cable

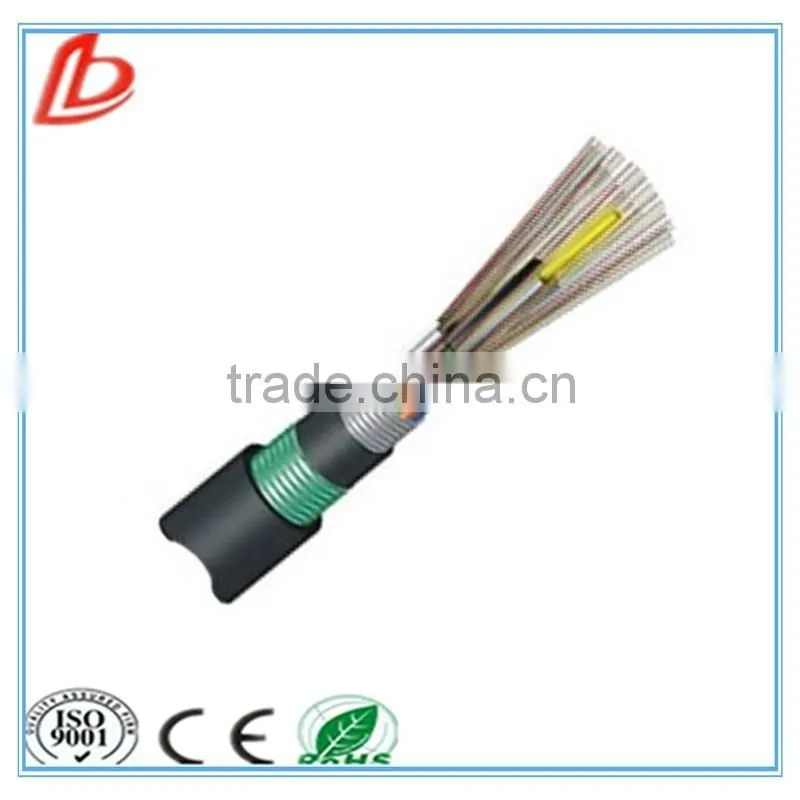

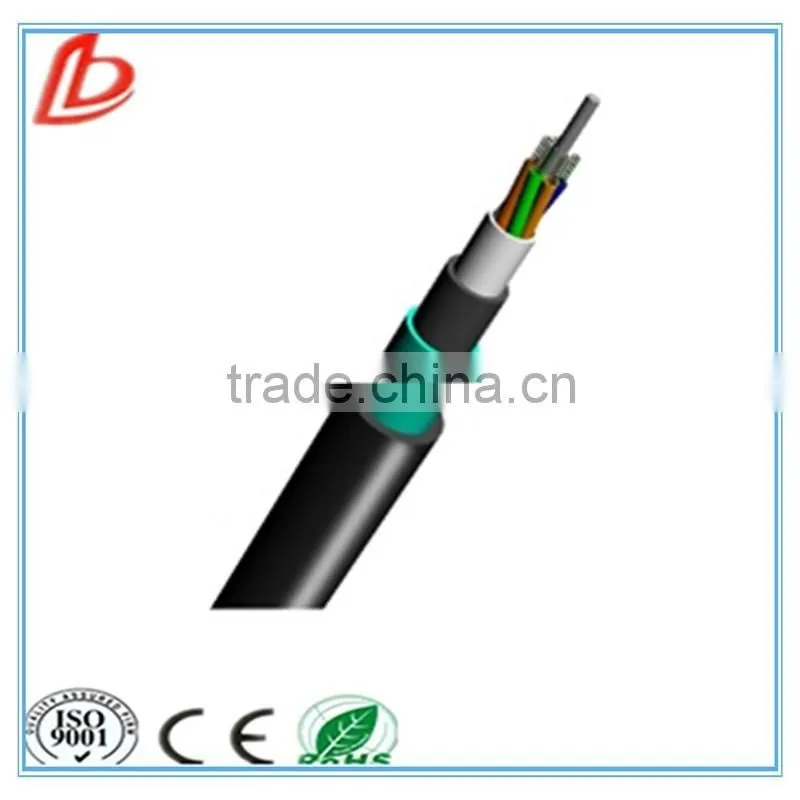

8 Core Non-metallic Strength Member Armored Cable, GYFTA53 Fiber Optic Cable

8 Core Non-metallic Strength Member Armored Cable, GYFTA53 Fiber Optic Cable thumbnail-3

8 Core Non-metallic Strength Member Armored Cable, GYFTA53 Fiber Optic Cable thumbnail-4

8 Core Non-metallic Strength Member Armored Cable, GYFTA53 Fiber Optic Cable photo-1

8 Core Non-metallic Strength Member Armored Cable, GYFTA53 Fiber Optic Cable photo-2

8 Core Non-metallic Strength Member Armored Cable, GYFTA53 Fiber Optic Cable photo-3

8 Core Non-metallic Strength Member Armored Cable, GYFTA53 Fiber Optic Cable photo-4

US$ 0.1 - 5 MOQ: 1000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

GYFTA53

Contact Supplier Request Quote Chat Now

Shenzhen BLH Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number GYFTA53

Type Coaxial

Number of Conductors 8

8 core Non-metallic Strength Member armored Cable, GYFTA53 fiber optic cable

Description

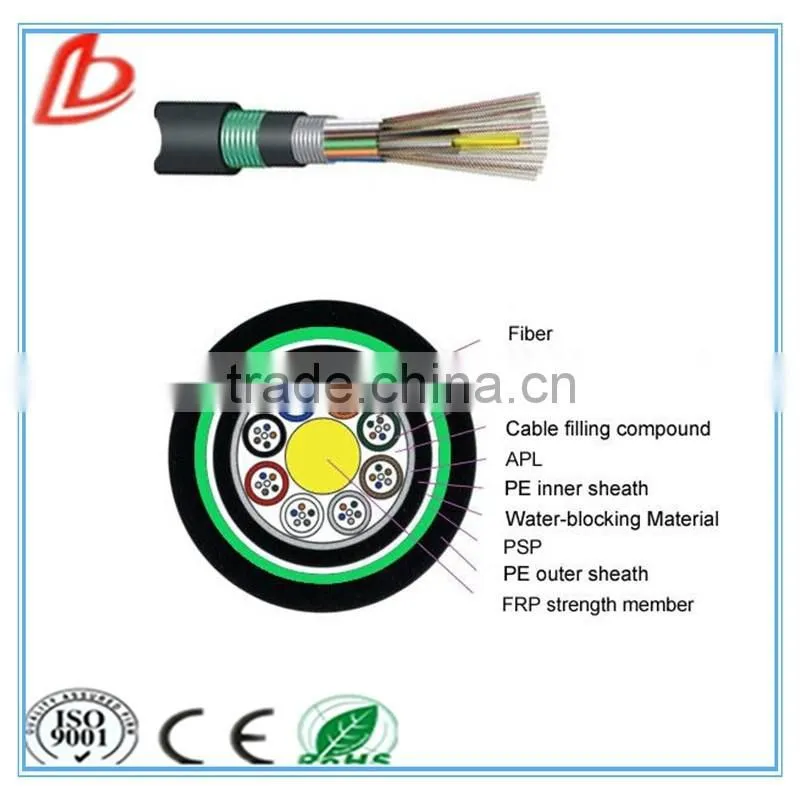

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features

1.Good mechanical and temperature performance

2. High strength looes tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Crush resistance and flexibility

5. The following measures are taken to ensure the cable watertight:

6. Single Fiber Reinforced Plastic as the central strength member

7. Loose tube filling compound

8. 100% cable core filling

9. PSP enhancing moisture-proof

10. Water-blocking material

Applications

GYFTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Specifications

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYFTA53-2~6	2~6	1	7	16.8	255	1000/3000	1000/3000	10D/20D
GYFTA53-8~12	8~12	2	6	16.8	255	1000/3000	1000/3000	10D/20D
GYFTA53-14~18	14~18	3	5	16.8	255	1000/3000	1000/3000	10D/20D
GYFTA53-20~24	20~24	4	4	16.8	255	1000/3000	1000/3000	10D/20D
GYFTA53-26~30	26~30	5	3	16.8	255	1000/3000	1000/3000	10D/20D
GYFTA53-32~36	32~36	6	2	16.8	255	1000/3000	1000/3000	10D/20D
GYFTA53-38~42	38~42	7	1	16.8	255	1000/3000	1000/3000	10D/20D
GYFTA53-44~48	44~48	8	0	16.8	255	1000/3000	1000/3000	10D/20D
GYFTA53-50~60	50~60	5	3	19.2	320	1000/3000	1000/3000	10D/20D
GYFTA53-62~72	62~72	6	2	19.2	320	1000/3000	1000/3000	10D/20D
GYFTA53-74~84	74~84	7	1	19.2	320	1000/3000	1000/3000	10D/20D
GYFTA53-86~96	86~96	8	0	19.2	320	1000/3000	1000/3000	10D/20D
GYFTA53-98~108	98~108	9	1	21.2	380	1000/3000	1000/3000	10D/20D
GYFTA53-110~120	110~120	10	0	21.2	380	1000/3000	1000/3000	10D/20D
GYFTA53-122~132	122~132	11	1	22.3	415	1000/3000	1000/3000	10D/20D
GYFTA53-134~144	134~144	12	0	22.3	415	1000/3000	1000/3000	10D/20D

Pictures

Payment and Delievery

Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable

Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
