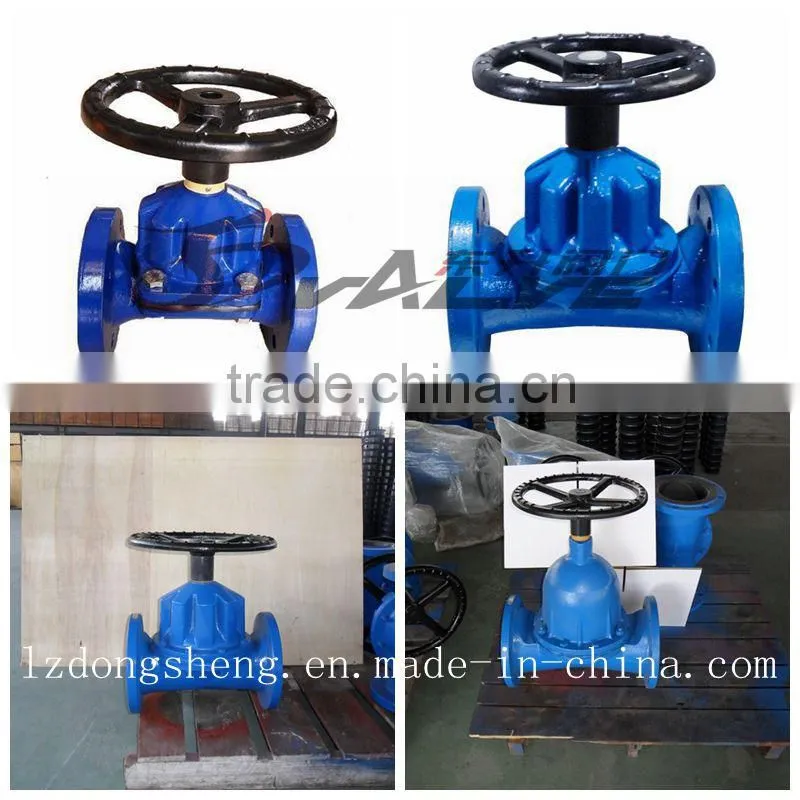

Cast Iron Hand Wheel DN100 PN16 SAUNDERS DIAPHRAGM VALVE

Cast Iron Hand Wheel DN100 PN16 SAUNDERS DIAPHRAGM VALVE thumbnail-1
Cast Iron Hand Wheel DN100 PN16 SAUNDERS DIAPHRAGM VALVE thumbnail-2
Cast Iron Hand Wheel DN100 PN16 SAUNDERS DIAPHRAGM VALVE thumbnail-3
Cast Iron Hand Wheel DN100 PN16 SAUNDERS DIAPHRAGM VALVE thumbnail-4
Cast Iron Hand Wheel DN100 PN16 SAUNDERS DIAPHRAGM VALVE photo-1

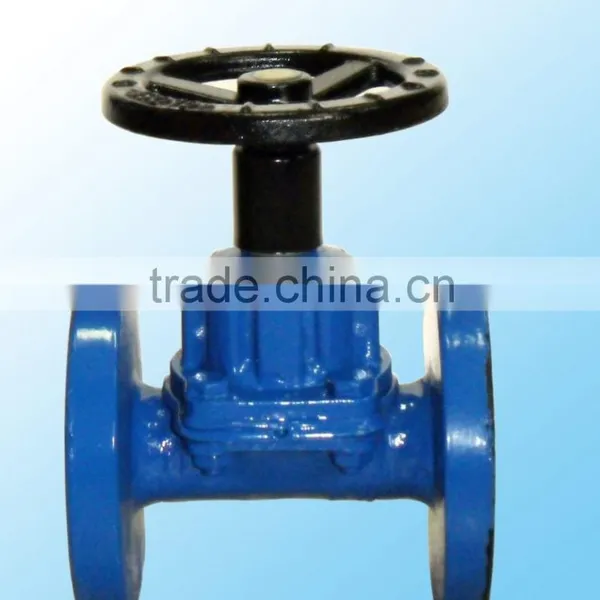

Cast Iron Hand Wheel DN100 PN16 SAUNDERS DIAPHRAGM VALVE photo-2

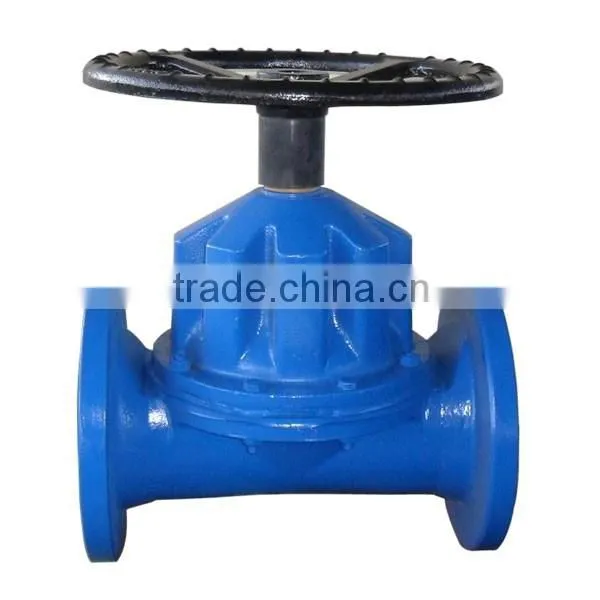

Cast Iron Hand Wheel DN100 PN16 SAUNDERS DIAPHRAGM VALVE photo-3

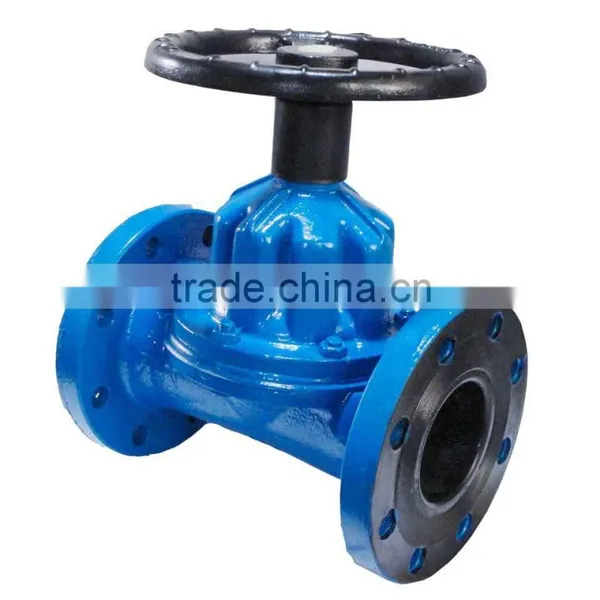

Cast Iron Hand Wheel DN100 PN16 SAUNDERS DIAPHRAGM VALVE photo-4
US$ 10 - 500 MOQ: 50 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Laizhou Dongsheng Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Diaphragm
Pressure Low Pressure
Power Manual
Material Casting
Temperature of Media Normal Temperature
Media Other, water,food stuff,steam,all kinds of oil
Port Size DN50-DN300
Place of Origin Shandong, China
Model Number GMF
Brand Name Dongsheng
Application General

Straight way diaphragm valve with rubber lined



1.Size:DN50~DN300





2.Straight-way Diaphragm Valves Feature

  • Consistently leaktight, even with solids in the line
  • Full straight through fluid flow
    • Excellent for sludges, slurries or viscous fluids
    • Flows in either direction
    • Isolation of bonnet from fluid
    • Easily cleaned with variety of pigs
    • Simple in-line maintenance




PN Nominal pressure   1.6Mba

Sealing test pressure   1.76Mba

Strength test pressure  2.4Mba

Suitable temperature     80°C



3.Application:

Dongsheng 's broad line of diaphragm valves is widely applied throughout the chemical, food, paper, steel, mining, pharmaceutical, and other process industries wherever positive shut off, non-contamination, or ease of maintenance is required.

Normal pressure

PN16/CL125

Seal test pressure

1.76Mpa

Strength test pressure

2.4Mpa

Suitable temperature

NBR:-10~+80°C

EPDM:-10-+120°C

VITON:-10-+150°C

Medium

Fresh water,Sea water,Waste water,food stuff,All kinds of oil,All kinds of acid and alkaline liquid etc.
