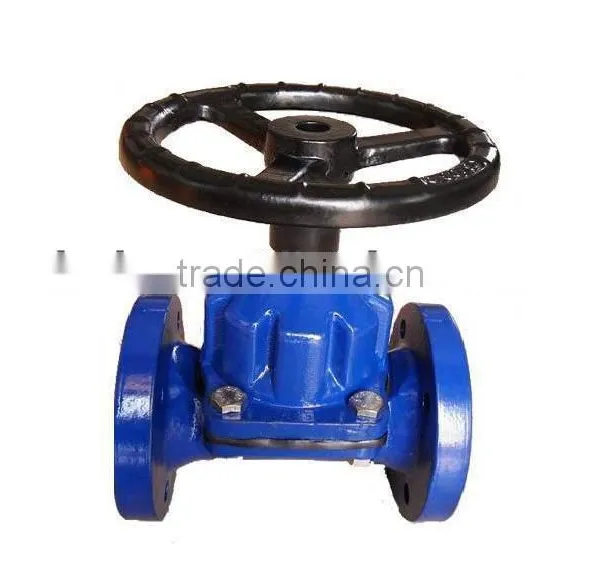

Help CenterDiaphragm Valves Rubber Coated
US$ 1 - 100
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DN300 Diaphragm ValvesUS$ 1 - 100MOQ: 10 Pieces -
DN300 Manual Diaphragm ValvesUS$ 1 - 100MOQ: 10 Pieces
-
Straight Through Type Water Diaphragm Valves With HandwheelUS$ 1 - 100MOQ: 10 Pieces
-
Rubber Lined Flanged Bodies Diaphragm ValvesUS$ 1 - 100MOQ: 10 Pieces
-
SAUNDERS Straight - Through Diaphragm Valves IndustrialUS$ 1 - 100MOQ: 10 Pieces
Standard or Nonstandard
Standard
Structure
Diaphragm
Pressure
Low Pressure
Power
Manual
Material
Casting
Temperature of Media
Normal Temperature
Media
Water
Port Size
DN50-DN300
Place of Origin
Shandong, China
Model Number
GMV
Brand Name
DSF-00
Application
General
STRAIGHT WAY DIAPHRAGM VALVE
Feature:
1.Design and manufacture confirm to BS5156.
2.Flange dimensions confirm to BS4504 PN10
3.Working pressure:DN50-DN100 1.0Mpa
DN125-DN300 0.6Mpa
NO. |
PART |
MATERIAL |
1 |
BODY |
Cast iron GG25/Ductile iron GGG40 |
2 |
BODY LINED |
NATURAL RUBBER |
3 |
DIAPHRAGM |
NATURAL RUBBER |
4 |
VALVE CLACK |
Ductile iron GGG40 |
5 |
BONNET |
Ductile iron GGG40 |
6 |
STEM |
STAINLESS STEEL |
7 |
BUSH |
PLASTIC |
8 |
HANDWHEEL |
Ductile iron GGG40 |
9 |
PIN |
CARBON STEEL |
10 |
BOLT |
STAINLESS STEEL |
