SAUNDERS DIAPHRAGM VALVE FULL FLOW

SAUNDERS DIAPHRAGM VALVE FULL FLOW thumbnail-1
SAUNDERS DIAPHRAGM VALVE FULL FLOW photo-1
US$ 80 - 2,000 MOQ: 50 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Laizhou Dongsheng Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Diaphragm
Pressure Low Pressure
Power Manual
Material Casting
Temperature of Media Normal Temperature
Media Water
Port Size 2"~12"
Place of Origin Shandong, China
Model Number G41X-16Z
Brand Name Dongsheng
Application General

 Straight-through type Diaphragm Valve

 Features:

.Design & Manufacture:GB12239-89

.Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202

.Flanged Dimension: GB 4216, GB 9113, GB12221

.Inspect & Test:GB/T 13927

.Operation: Handwheel

.Size Ranges: 1'' to 12''NB

.Pressure Rating: PN6, PN10, PN16,

Materials available in

.Body/Bonnet: Cast Iron, Ductile Iron,

.Lining:Rubber-NR

.Diaphragm: Rubber

.Disc:Cast Iron,Ductile Iron,Stainless Steel

.Valve spindle:Carbon Steel & Stainless Steel

.Handwheel: Iron & Steel

.Screw nut:Copper alloy

Application:



PN Nominal pressure

1.6Mba

Sealing test pressure

1.76Mba

Strength test pressure

2.4Mba

Suitable temperature

-20—135

°C



 SAUNDERS DIAPHRAGM VALVE FULL FLOW

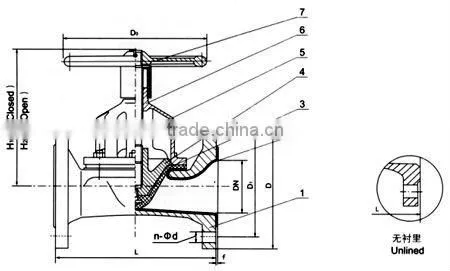

Parts list:1.Body 2.Body lining 3.Diaphragm 4.Disc 5.valve spindle 6.valve cap 7.handwheel







Structure characteristics:

Flow resistance small,   Relative to weir type it's long journey,Cut performance and circulation ability is very good ,Can be used in high vacuum equipment.Corrosion resistance, can used for granular media,Lumen can line into Plastic,glue,or enamel.

face and face end:flange

size:DN50~DN300

Medium

Media: Gas,Fresh water ,sea water ,waste water,food stuff,steam all kinds of oil or acid and alkaline liquid etc

 SAUNDERS DIAPHRAGM VALVE FULL FLOW
