Home > Products > Check Valve > Single Plate Swing Check Valve, American Standard Class125/Class150,cast steel,stainless steel

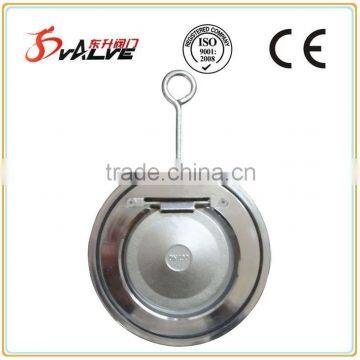

Single Plate Swing Check Valve, American Standard Class125/Class150,cast steel,stainless steel
USD $10 - $100
/ Piece
10 Pieces(Min.Order)
- QingDao
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Check | |
| Pressure | Medium Pressure | Power | Hydraulic | |
| Material | Stainless Steel | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | DN25-DN600 | |
| Place of Origin | Shandong, China | Model Number | CV-003 | |
| Brand Name | Dongsheng | Application | General |
Product Description
Wafer Swing Check Valves
Design Attributes
Engineering Construction Data
Single Swing Check Valves
Standard Design Pressure PN 25, other design ratings such as PN 40 or ANSI Class on request * Uni directional valve design * Wafer Design to install between flanges DIN 2576 PN 10, DIN 2502 PN 16 as standard.
MATERIAL LIST:
| NO. | Part | Material |
| 1 | Body | SS316/SS304/WCB |
| 2 | Plate | SS316/SS304/WCB |
| 3 | Hanger | Steel |
| 4 | Baffle | SS316/SS304/WCB |
| 5 | O ring | NBR/EPDM/VITON |
| 6 | O ring | NBR/EPDM/VITON |
| 7 | Screw | SS316/SS304/WCB |
| 8 | Pad | SS316/SS304 |
| 9 | Spring | SS316/SS304 |
| 10 | Shaft | SS316/SS304 |
