Help CenterWafer-type Non-return Valve
US$ 1 - 1,000
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2" Spring Swing Check Valve - Wafer Type - Carbon Steel BodyUS$ 10 - 100MOQ: 10 Pieces -
Short & Long Pattern Wafer Check ValvesUS$ 10 - 100MOQ: 10 Pieces
-
Light Weight Single Plate Wafer Check Valve For Water Supply System, Chemical IndustryUS$ 10 - 100MOQ: 10 Pieces
-
Stainless Steel Wafer PN40 Spring Loaded Disc Check ValvesUS$ 1 - 1,000MOQ: 50 Pieces
-
Cast Iron Wafer Single Flap Check ValveUS$ 15 - 1,000MOQ: 50 Sets
Standard or Nonstandard
Standard
Structure
Check
Pressure
Medium Pressure
Power
Other, work automatically
Material
Stainless Steel
Temperature of Media
High Temperature
Media
Other, liquid
Port Size
DN15-100
Place of Origin
Shandong, China
Model Number
DCV-011
Brand Name
Dongsheng
Application
General
Disc Check Valve
Description

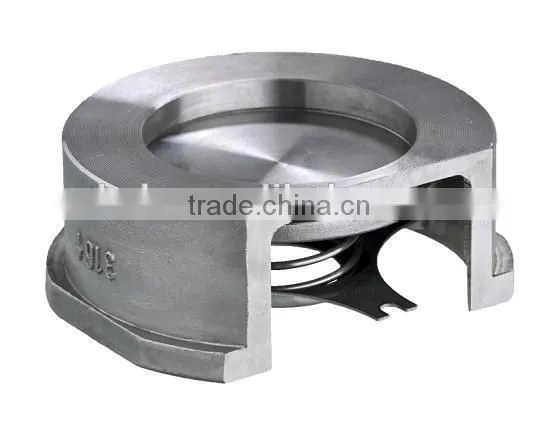

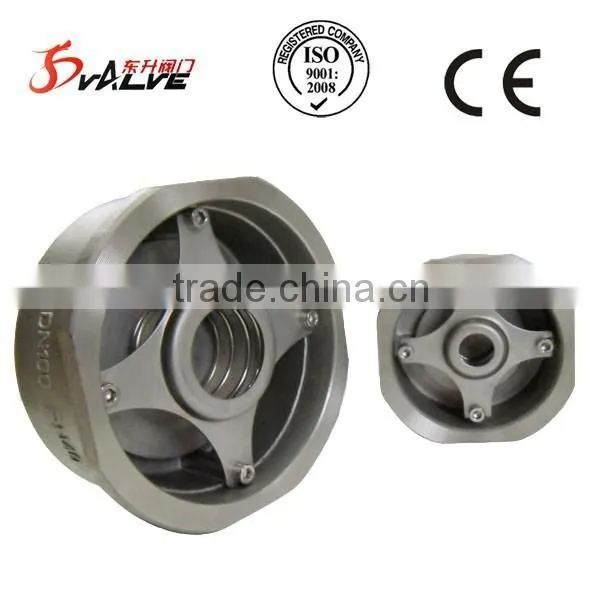

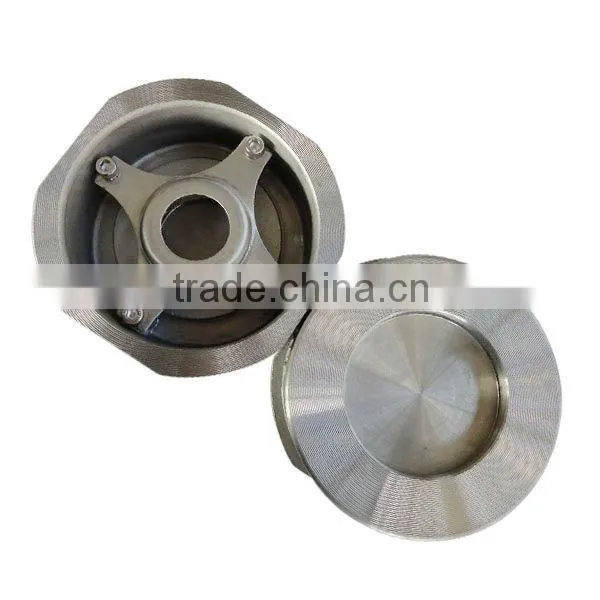

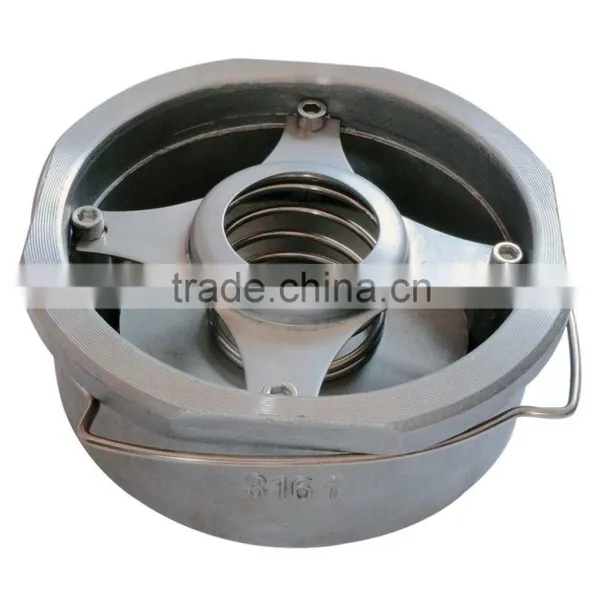

The stainless steel disc check valve is of the wafer pattern
designed to be sandwiched between ASME flanges. It is suitable
for use on a wide range of fluids for applications in process lines,
hot water systems, steam and condensate systems etc.
Features
Wafer check valve (single disk).
Made of Stainlees Steel AISI 316.
Disk made by AISI 316.
Spring made by AISI 316.
Little dimensions.
Assembly between flanges DIN PN-16/40 and ANSI 150.
Installed with vertical, horizontal or inclined flow.
Face to Face according DIN3202 K4
Max. Working pressure 40/25 Kg / cm2.
Low head losses.
Working Temperature -20ºC +240ºC
Material list
| NO. | Part | Material |
| 1 | Disc | SS316/SS304 |
| 2 | Body | SS316/304/Brass |
| 3 | Bolts | SS316 |
| 4 | Spring Cover | SS316 |
| 5 | Spring | SS316 |
Dimension Unit (mm)
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| D (excircle) | 53 | 63 | 73 | 84 | 94 | 107 | 126 | 144 | 164 |
| E (port) | 15 | 20 | 25 | 30 | 38 | 47 | 62 | 77 | 95 |
| L (height) | 16 | 19 | 22 | 28 | 31.5 | 40 | 46 | 50 | 60 |
