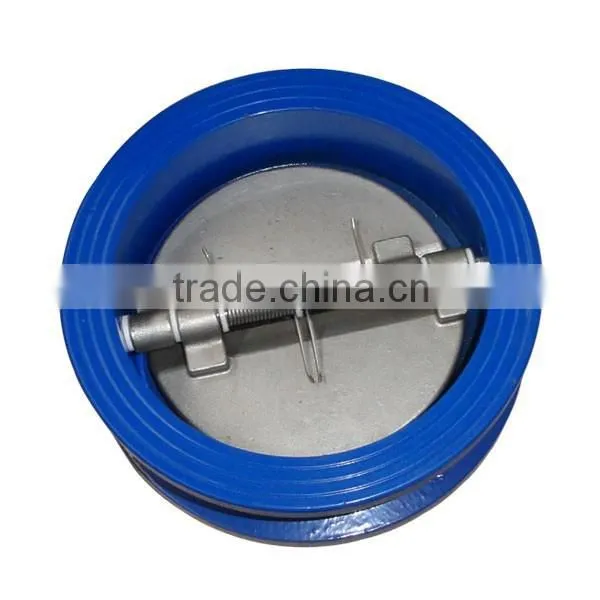

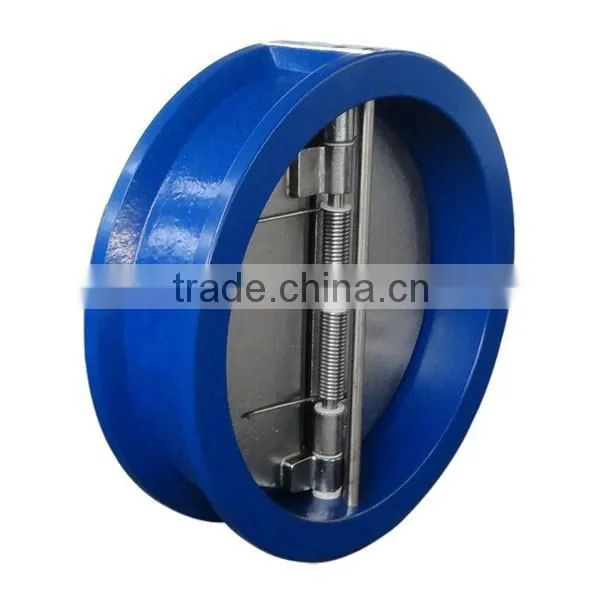

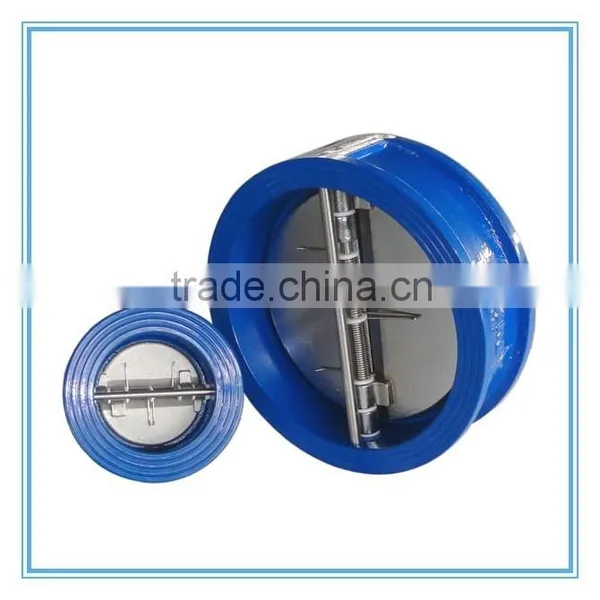

Help Center100mm Double-Disc Check Valve Type DN 100
Related Products
-
Direct Factory/ Manufacturer of Stainless Steel Check ValveUS$ 1 - 1,000MOQ: 1 Piece -
Stainless Steel Check ValveUS$ 10 - 100MOQ: 10 Pieces
-
Stainless Steel Wafer Swing Check Valve Single DiskUS$ 10 - 100MOQ: 10 Pieces
-
Swing Disc Wafer Check ValveUS$ 10 - 100MOQ: 10 Pieces
-
H71-Long Model Wafer Type Lift Check ValveUS$ 1 - 1,000MOQ: 1 Piece
DUAL DISC-(H77X)
Anti-slam, spring loaded dual disc wafer check valves are suitable for clean liquid and gas applications.
• Size Range: 1.5” - 24”
• ASME Class 125 - 250 / API 2000 - 3000
• Wafer, Lug and Double Flange Designs
• ASME B16.1, B16.5, B16.34, B16.47, and B31.1
• API 594 and 598
• API 6A and 6D (as applicable)
Product Description
Suitable Media: Fresh water,Sewage,Sea water,Air,Vapor,Food,Medicine,Acids,Oils,etc.
Suitable Temperature: -15°C~150°C
Nominal Diameter: 50~700mm
Product Introduction
Wafer Butterfly Non-return Valve is designed to operate with the minimum of flow restriction. The product has good non-return performance ,safety and low flow resistance coefficient ,which is used widely for petroleum processing ,chemical engineering ,food ,medicine ,textile ,paper making ,water supply ,metallurgy and energy engineering systems ,using as valves.
Product Features
(1) Small in volume and light in weight. Compact construction and easy maintenance.
(2) Dual discs can close quickly automatically acting on the elastic torque.
(3) The action of quick close can ward off media’ flow backwards and eliminate obviously water hammer action.
(4) Small body construction length dimension ,good rigidity and safety.
(5) The twin spring loaded half disc operate with the pipeline flow and reseal back against the rubber disc seating providing a positive shut off against any back flow . The resilient seating prevent a slamming action.
(6) Natural Rubber sealing with no leakage under the pressure test.
(7) These valves can be supplied to match the international standards of flange (DIN,ANSI,JIS & BS) .
Main Performance Parameters:
| Nominal Pressure (MPa) | Nominal Diameter (mm) | Testing Pressure (MPa) | Testing Temp | Suitable Media | |
| Shell | Seal | oC | |||
| 1.0 | 50 - 700 | 1.5 | 1.1 | -15 - 150 | Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Acids, Oils, etc. |
| 1.6 | 50 - 450 | 2.4 | 1.76 | ||
Materials of Main Parts:
NO. |
Parts |
MATERIAL |
1 |
Body |
Cast iron GG25 / Stainless Steel |
2 |
Disc |
AISI 316 / chrome coated GGG40 |
3 |
Resilient seat |
EPDM |
4 |
Hinge pin |
AISI 316 |
5 |
Spring |
AISI 304 |
6 |
Retainer screw |
Carbon steel |
7 |
Disc bearing |
Teflon |
