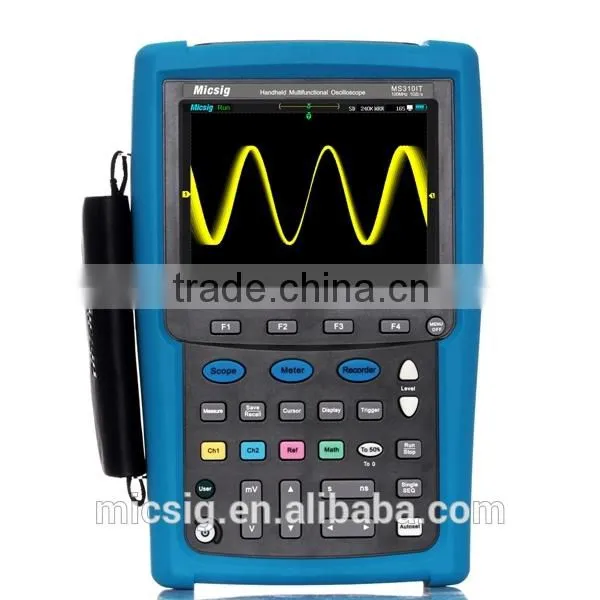

MS207T Factory Price Digital Handheld Oscilloscope Used for Education

Name: MS207T Factory Price Digital Handheld Oscilloscope Used for Education
Brand: Micsig
SKU: 127201317

US$ 589 - 599 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Micsig

Model Number:

MS207T

Shenzhen Micsig Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Micsig

Model Number MS207T

Product Description

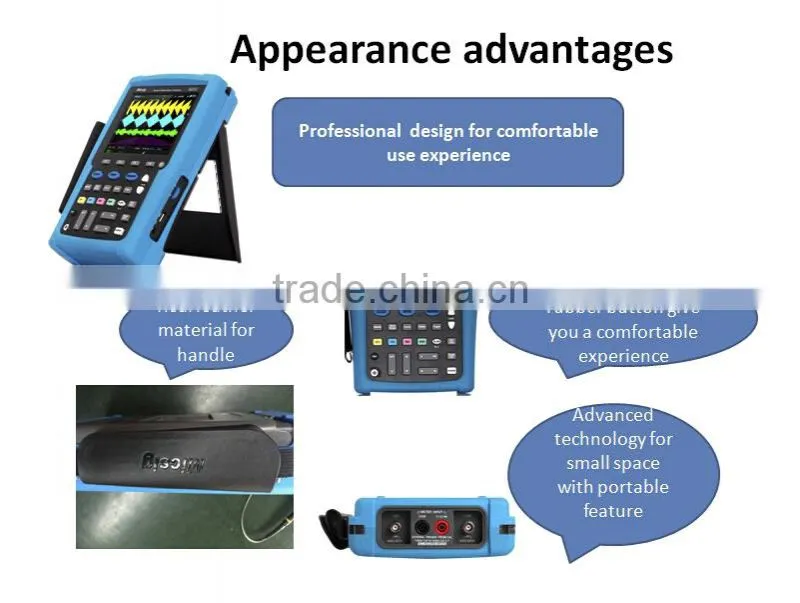

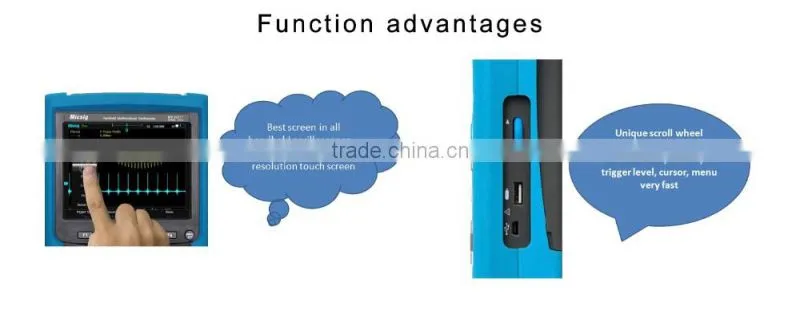

Humanized designs make MS207T more efficient:

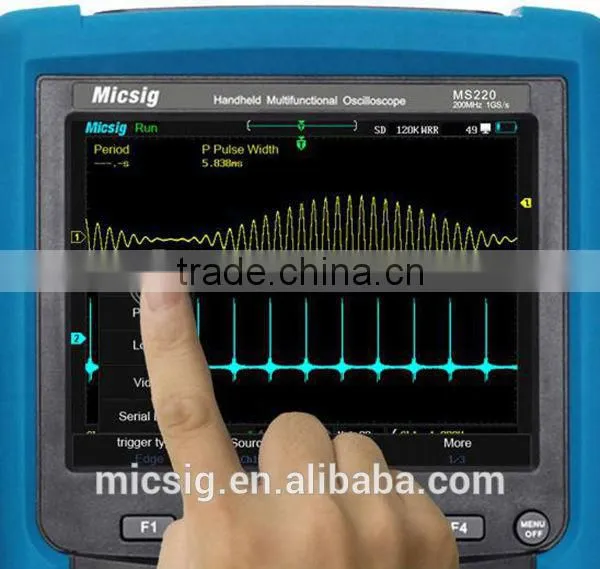

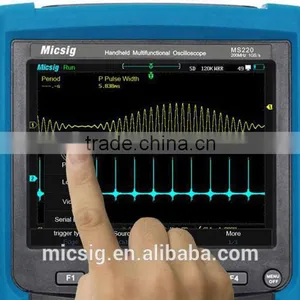

industry TFT LCD and supporting button, touch & scroll wheels operation mode;
Integratig scope, meter & recorder in one unit and unique scroll wheel & touch designs making handheld operation more convenient;
Rapid response of operation system & online built-in helping menu make your testing work really easy & high efficient.

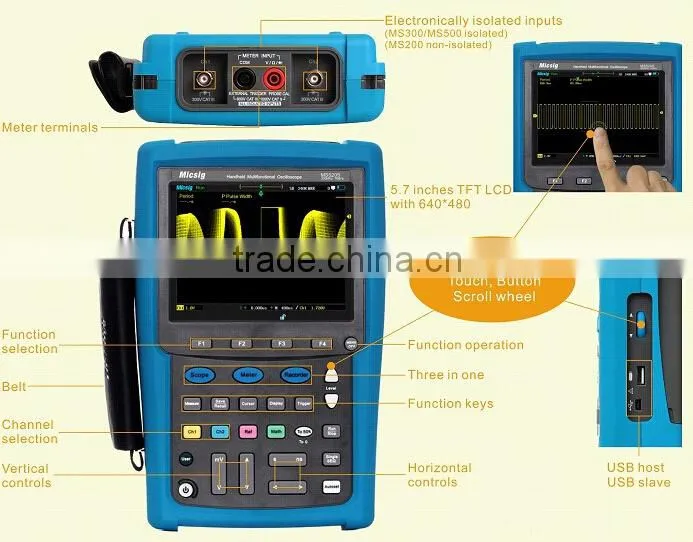

Overview for MS207T:

Specificion of MS207T:

*Model*	*MS207T*
*Bandwidth*	*70MHz*
*Operation*	*Multi-touch,button,scroll wheel*
*Real time sampling rate*	*1GS/s for single channel,500MS/s for two channels*
*Memory depth*	*240Kpts*
*Max capture rate*	*50,000 wfms/s*
*Channels*	*2 channels for scope,1 meter channel*
*Display screen*	*5.7" TFT multi-touch LCD,640x480 pixels,12x8 grids*
*Battery capacity*	*7.4V 6000mAh*

Micsig handheld oscilloscope MS207T for car diagnostic features


240kpts deep memory depth for oscilloscope,could see more detail of the waveforms		The ScopeSuite of Micsig's software functions include updating,real time control, measurement, storage, dynamic display,record and data analysis

640x480 pixels high resolution of waveforms		Indoor/outdoor display mode

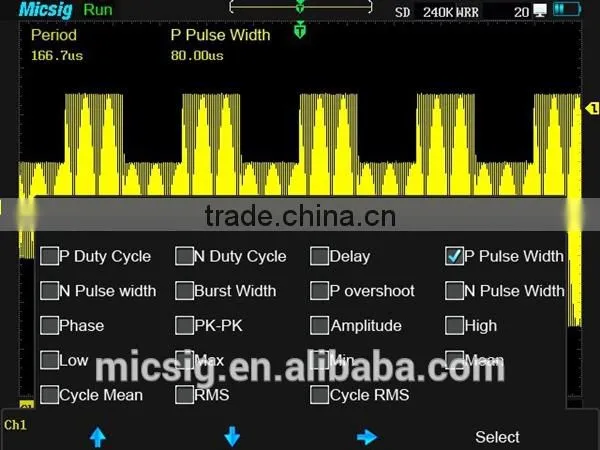

31 auto measurements of waveforms		Horizontal cursor, vertical cursor, cross cursor

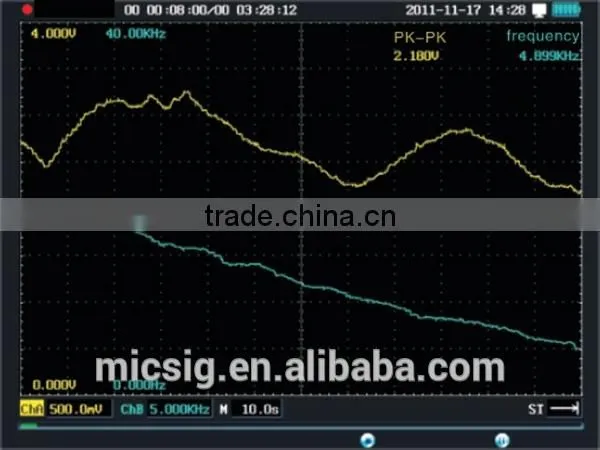

3 types of record modes: multimeter record,oscilloscope measurement record and oscilloscope waveform record.		Up to 13 physical measurements such as AC/DC voltage, current,resistance etc.
