MS220T 200MHz bandwidth digital handheld storage oscilloscope meter:
On market, it’s afraid that only Micsig handheld multi-function oscilloscope can be regarded as a true oscilloscope and others can be called scope.
Moreover, it’s function no less than desktop oscilloscope, as it designs lightweight and uses double injection plastic mould making oscilloscope high IP level;
Real leather belt design, exclusively detachable battery design & supporting indoor & outdoor display mode make it become your good assistant in field working.
Micsig oscilloscope digital 200MHz MS220T introduction:
- 5.7 inches TFT LCD industry touch screen & 640*480 high resolution make it shows clearer and more delicate in waveform;
- high quality double injection mould has functions of high IP level and fit comfortably in one hand;
- supporting indoor & outdoor display mode make it more convenient in field operation;

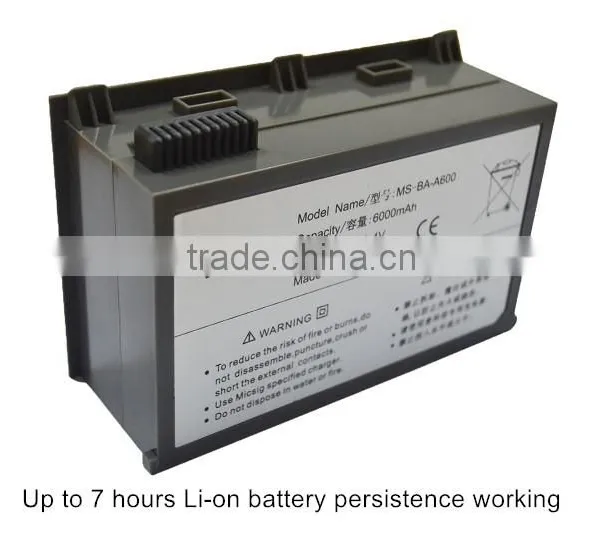

- easy disassembling 6000mAh Li-on battery can make user persist working up to 7 hours even though in outages situation;
- two analog channels & multi-meter channel support 3 operation modes: touch, button & scroll wheel, which simplify operation steps;
- multi-meter can measure direct voltage, resistors, diodes, on-off and like that 10 tapes regular physical quantity;
- recorder can keeps more than 100 days recording.
Specification:
| MODEL | MS220T |
| Bandwidth | 200MHz |
| Operation | Multi-touch,button,scroll wheel |
| Real time sampling rate | 1GS/s for two channel,500MS/s for one channels |
| Memory depth | 240Kpts |
| Max capture rate | 50,000 wfms/s |
| Scopemeter Channels | 2 channels(not isolated) for scope,1 meter channel |
| Display screen | 5.7" TFT multi-touch LCD,640x480 pixels,12x8 grids |
| Meter measurements | 10 types |
| Timebase range | 4ns/div-10s/div |
| Serial bus decode | Not available for this model |
| Battery capacity | 7.4V 6000mAh |
| Isolated channel | Not available for this model |
| Rise time | <3.5ns |
| Vertical scale | 2mV/div-20V/div |
| Trigger types | Edge,Pulse,Logic |
| Measurements | 31 automatic measurements |
| Timebase mode | YT,XY,Roll |
| Persistence | Auto,100ms-10s,or ∞ |
| Coupling mode | AC,DC,Ground |
| I/O port | USB host,USB device |

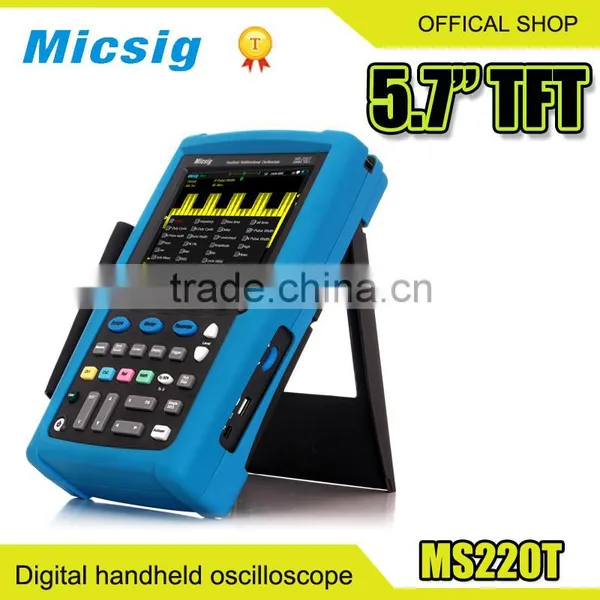

Micsig digital storage handheld oscilloscope MS220T product showcase
Features of MS220T Digital Handheld Oscilloscope:
|
| |
240kpts deep memory depth for oscilloscope,could see more detail of the waveforms | The ScopeSuite of Micsig's software functions include updating,real time control, measurement, storage, dynamic display,record and data analysis
| |
| | |
640x480 pixels high resolution of waveforms make it show clearer & more delicate in waveform | Indoor/outdoor display mode | |
| | |
31 auto measurements of waveforms can be displayed in one time | Horizontal cursor, vertical cursor, cross cursor | |
| | |
3 types of record modes: integrate multimeter record & oscilloscope in one unit | Up to 13 physical measurements such as AC/DC voltage, current,resistance etc. |
Portable digital handheld oscilloscope package:
Carton dimension: 410x 200x 380 mm
Carton gross weight: 6.5KG(with battery)

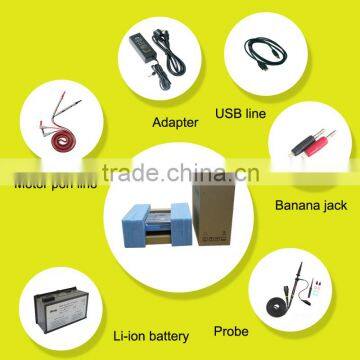

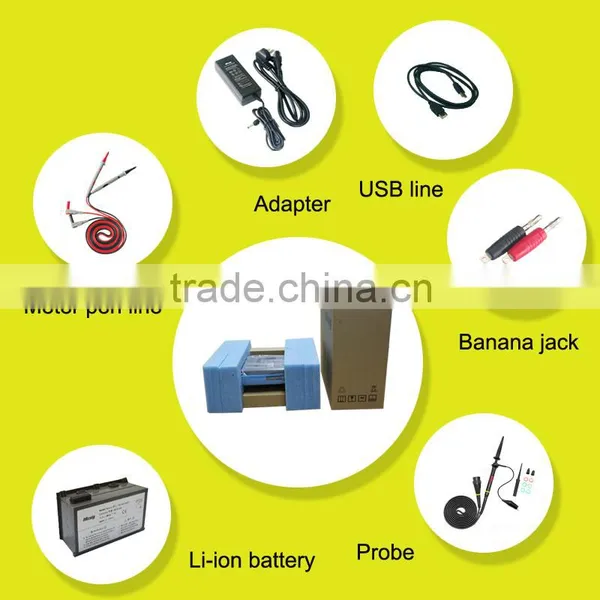

Standard accessories:
Passive probe:X2
Battery(6000mAh):X1
Banana jack:X2
Micro USB cable:X1
Power adapter:X1
Multimeter table pen line:X1
Documents:X1
Optional accessories:(need to buy separately)
Built-in battery(6,000mAh)
Nylon handbag
ABS High Pressure Resistance
High frequency current probe
High voltage differential probe
Shipping:
All the goods will be sent by DHL,FEDEX,UPS,TNT according to customers' requirements,or by sea shipping.
As for a tablet oscilloscope innovator, Micsig has achieved a large number of worldwide patent rights on tablet oscilloscope.
We are a professional supplier & manufacturer in field of testing & measurement instrument and solution integration of R&D, manufacturing, marketing & sales.
Micsig's vision is to provide the whole series touchable T&M instruments to global customers, and we devote to R&D and manufacturing on this area.
Micsig products cover the worldwide first tablet oscilloscope and touchable handheld multifunctional oscilloscope, which are widely applicated in Aerospace, automotive, communication, military, power, education etc.
