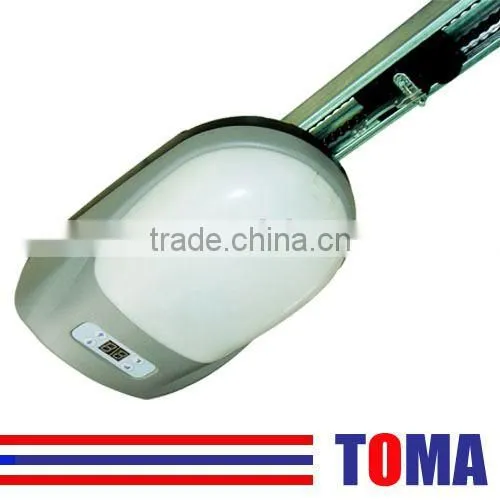

Sectional garage door operator
Power supply: 220VAC 50Hz
Motor Voltage :24VDC
Lighting Bulb: 10W/24V
Operation Speed :12cm/s
Radio Frequency : 433.92MHz
Motor output torque: 8Nm
Max lift height :2.5m
Max square metre: 8
Protection Class: IP20
Consumption in Stand-by: <=10W
Ambient Temperature: -30--+60
1. Automatically reverse safety system.
2. Force sensing systems constantly adapt to compensate for minor changes in door load from weather and door age.
3. Soft start and soft stop -smooth and quiet opening and closing.
4. One button remote control with step by step control mode.
5. Computerised precision travel limit.
6. Selectable Auto-closing function.
7. A manual release function allows easy manual operation in event of power failure.
8. Optional safety beam sensors (recommended) stop the door before contact with an obstruction.
9. Suitable for tilt-up and sectional overhead doors.
10. System uses magnetic sensor for maximum reliability in dusty conditions.
11. High-torque low-rpm motor mounted in a unique C-chassis for quieter running.
12. Auto Courtesy light.
13. All settings retained even after power loss.
14. 5 levels Adjustable Force.
15. Over load protection.
