Help CenterGood Quality Sliding Gate Opener
US$ 20 - 150
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
TOMA
Model Number:
TM-G19R
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
TOMA
Model Number
TM-G19R

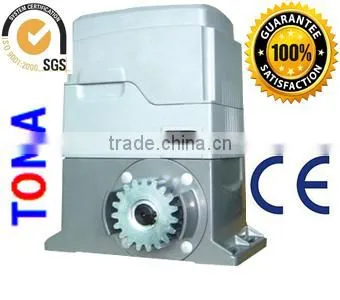

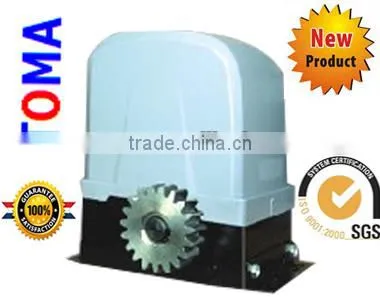

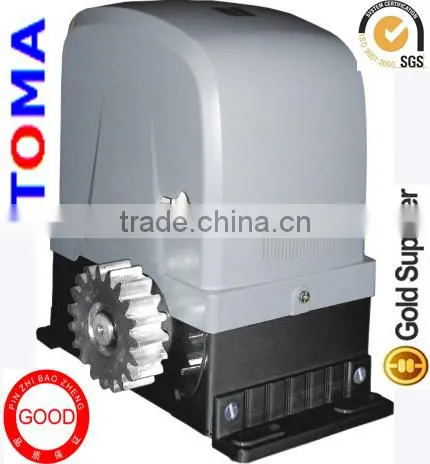

sliding gate opener
Full Set ( one motor, 1 control box, 2 transmitters, mounting accessories)
Features:
1. Integrated mechanical and electrical, with PCB inside.
2. Mechanical limit switch(spring limit switch) or magnetic limit switch is optional
3. Release key for power failure.
4. Electronic soft-start, ensures the motor starts steadily and smoothly, easy to maintain and installation.

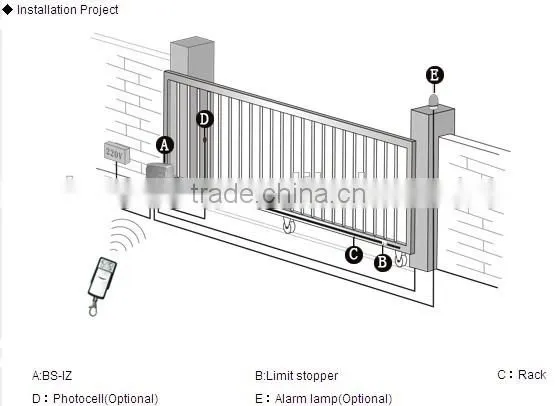

5. Intelligent terminals for alarm lamp, photocell, external receiver, etc.
6. Optional line control or remote control.
Function:

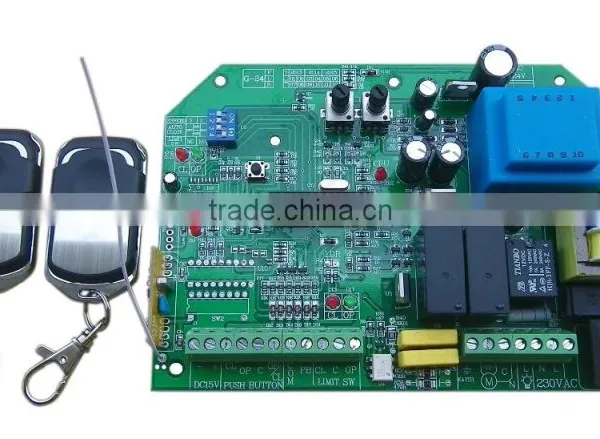

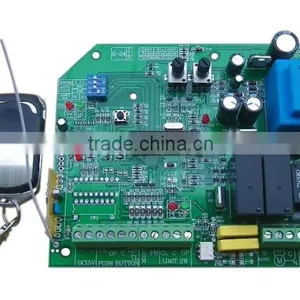

Built-in control board, Terminals for Push button,Photocell, Flash lamp,Auto-closing is available, time delay is adjustable, In case of power failure,the gate can be opened and closed manually after release clutch.
Description:
| Item number | Specification |
| TM-G18R |
With built in receiver, Power Supply: AC 230V/120V, 370W, Output torque:18N·m, Maximum weight of Gate:500KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G18CB |
With outer control box, Power Supply: AC 230V/120V, 370W, Output torque:18N·m Maximum weight of Gate:500KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G19R |
With built in receiver, Power Supply: AC 230V/120V, 370W, Output torque:18N·m Maximum weight of Gate:700-800KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G19CB |
With outer control box, Power Supply: AC 230V/120V, 370W, Output torque:18N·m Maximum weight of Gate:700-800KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G20R |
With built in receiver, Power Supply: AC 230V/120V, 550W, Output torque:21N·m Maximum weight of Gate:1000-1200KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G20CB |
With outer control box, Power Supply: AC 230V/120V, 550W, Output torque:21N·m Maximum weight of Gate:1000-1200KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G22R |
With built in receiver, Power Supply: AC 230V/120V, 750W, Output torque:35N·m Maximum weight of Gate:1500-2000KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G22CB |
With outer control box, Power Supply: AC 230V/120V, 750W, Output torque:35N·m Maximum weight of Gate:1500-2000KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G23R |
With built in receiver, Power Supply: AC 380V, 750W, Output torque:38N·m Maximum weight of Gate:1500-2000KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G23CB |
With outer control box, Power Supply: AC 380V, 750W, Output torque:38N·m Maximum weight of Gate:1500-2000KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G24R |
With built in receiver, Power Supply: AC 230V/120V, 900W, Output torque:45N·m Maximum weight of Gate:2500-2800KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G24CB |
With outer control box, Power Supply: AC 230V/120V, 900W, Output torque:45N·m Maximum weight of Gate:2500-2800KG, Motor Speed:1400r/min, Gate moving speed:12m/min, Limit switch: spring limit switch / magnetic limit switch, Noise:≤56dB |
| TM-G10-I(AC) |
With built in receiver, Motor power: AC 220V/110V, 280W, Maximum weight of Gate:800KG, Motor Speed:1400r/min, Limit switch: Mechanical limit switch, Built-in control board |
| TM-G10-II(AC) |
With built in receiver, Motor power: AC 220V/110V, 280W, Maximum weight of Gate:800KG, Motor Speed:1400r/min, Limit switch: Magnetic limit switch, Built-in control board |
| TM-G10-I(DC) |
With built in receiver, Motor power: DC24V,120W, Maximum weight of Gate:600KG, Motor Speed:1400r/min, Limit switch: Mechanical limit switch, Built-in control board |
| TM-G10-II(DC) |
With built in receiver, Motor power: DC24V,120W, Maximum weight of Gate:600KG, Motor Speed:1400r/min, Limit switch: Magnetic limit switch, Built-in control board |
| TM-G11-I (1200) |
With built in receiver, Motor power: AC 220V/110V, 370W, Maximum weight of Gate:1200KG, Motor Speed:1400r/min, Output speed:46.7r/min, Limit switch: Mechanical limit switch |
| TM-G11-II (1200) |
With built in receiver, Motor power: AC 220V/110V, 370W, Maximum weight of Gate:1200KG, Motor Speed:1400r/min, Output speed:46.7r/min, Limit switch: Magnetic limit switch |
| TM-G11-I (1500) |
With built in receiver, Motor power: AC 220V/110V, 450W, Maximum weight of Gate:1500KG, Motor Speed:1400r/min, Output speed:46.7r/min, Limit switch: Mechanical limit switch |
| TM-G11-II (1500) |
With built in receiver, Motor power: AC 220V/110V, 450W, Maximum weight of Gate:1500KG, Motor Speed:1400r/min, Output speed:46.7r/min, Limit switch: Magnetic limit switch |

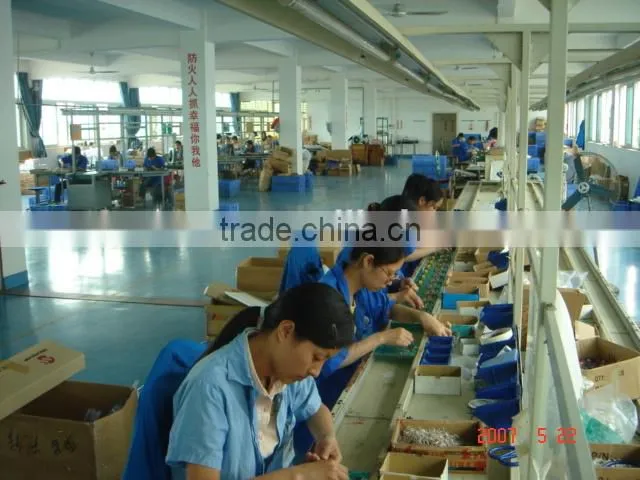

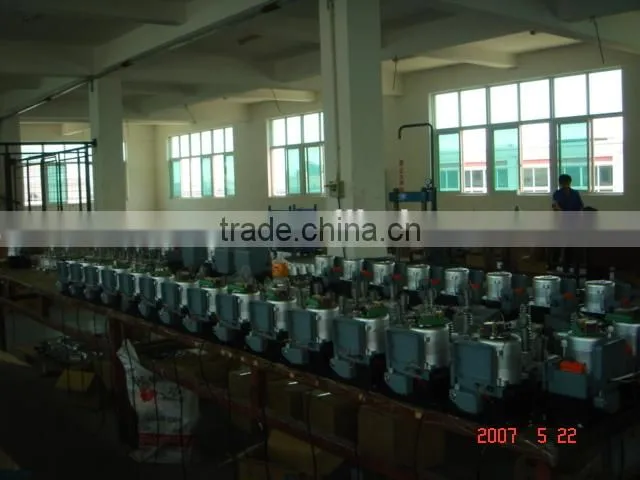

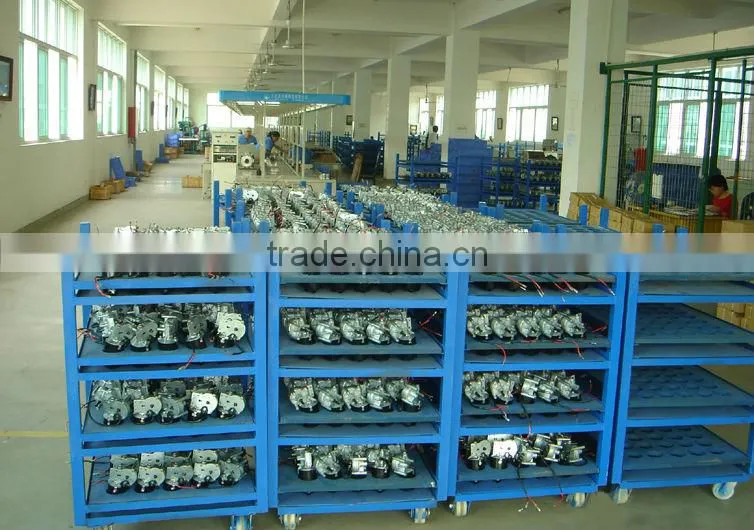

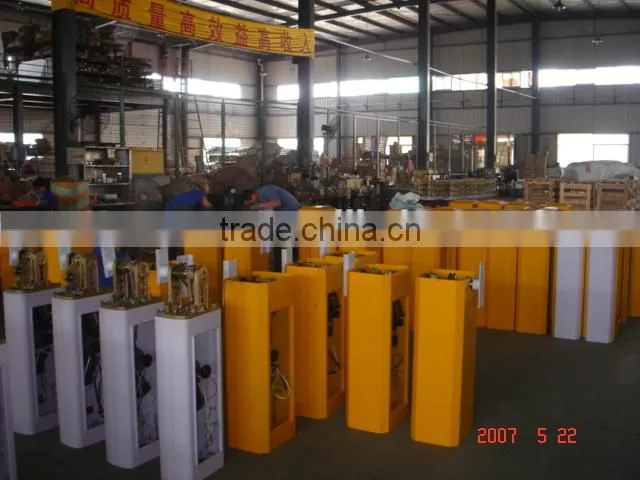

WORKSHOPS FOR GATE OPENERS AND BARRIERS
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2006
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
