Product Details
| Condition: | New | Type: | Paper Folding Machine | Computerized: | Yes |
| Place of Origin: | Zhejiang, China | Brand Name: | CBADEN | Model Number: | DTD-A31520 |
| Voltage: | 380V | Power(W): | 3KW | Dimension(L*W*H): | 3390*8970*1600mm |
| Weight: | 5T | Certification: | CE | Warranty: | 5 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
paper packing machine
Photocopy Paper Ream Wrapping Machine Model DTD-A31520
Main introduce :
Manufacturer of Cbaden Machine Group design and build this Fast Speed Photocopy Paper Ream Wrapping Machine Model DTD-A31520, it can meet the increasing demand of the market of paper products industry .
Our Fast Speed Photocopy Paper Ream Wrapping Machine Model DTD-A2 ,it is adopting foreign technique, shortens packaging time and increases packaging efficiency. In stead of manual packaging, it is fully automatic
Each connecting rod, transversely paper feeding function and other sections are driven by a series of cams inside the machine to quickly complete the actions of automatic paper feeding, paper falling, gluing and wrapping etc.
ThisPhotocopy Paper Ream Wrapping Machine Model DTD-A31520 is suitable for packing A3 photocopy paper.

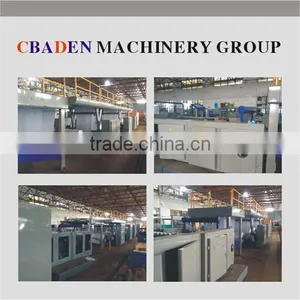

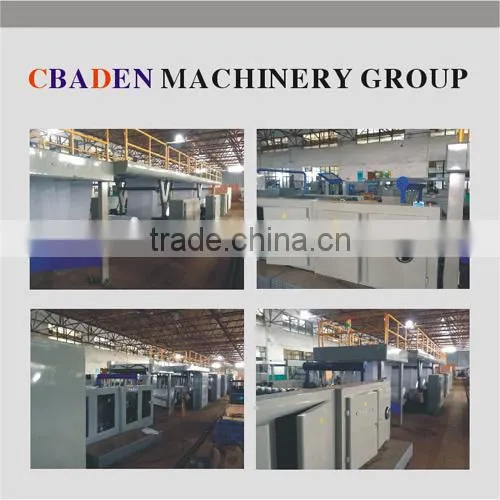

Machine photo:
More detail :
Adopt multi-functional digit-display infinite speed regulation, PLC control, and it is quipped with touch screen to realize man-machine interface, it is with Automatic transverse cutting and feeding of roll overwrap paper.
Both common color printing paper and top grade color printing paper can be packed
The most advanced automatic gluing spraying system is equipped ,Reasonable structure, higher efficiency, easier operation and increased sealing capacity.
Technical Parameters:
Working speed | 10-15-20 ream /min. |
Paper weight | 50~500GSM |
Packing width | min.450mm~max. 1200mm |
Packing length | min.1000mm~max. 3000mm 1 |
Packing paper weight | 80~120GSM |
Dia. Of packing paper | Max. 800mm |
Paper core of packing paper | 3 inch |
Dimension of packing paper | 7700-790W.* 530~540L.*600D.mm |
Thickness of ream paper | 20mm~70mm |
Weight of ream paper | 70~105kg |
Motor power of gluing | 2.25kw |
Motor power | 7.1KW |
Dimension of ream paper | 320×450 25~70mm |
Machine weight | 3t |
Machine dimension | 3390×8970×1600mm |
paper packing machine
