Tapered Bore Self-Aligning / Self Aligning Ball Bearing 2206E2RS1K 30*62*20
Self-aligning ball bearings
Self-aligning bearings of the basic design are available with both a cylindrical bore and a tapered bore with a 1:12 taper. Tapered bore bearings are furnished with adapter sleeves, including nut and lock washer, with which the bearings can be secured to smooth or stepped shafts. They are identified by suffix letter K.
Sealed Bearings
Self-aligning bearings with cylindrical and tapered bores are available with contact seals on both sides, identified by the suffix 2RS1. The seals are made of oil and wear resistant synthetic rubber reinforced by a steel insert.
Sealed bearings with a tapered bore require a special adapter sleeve and lock washer identified by the suffix letter C. The lock washers have a circular beading on the side facing the bearing to prevent interference
with the seal.

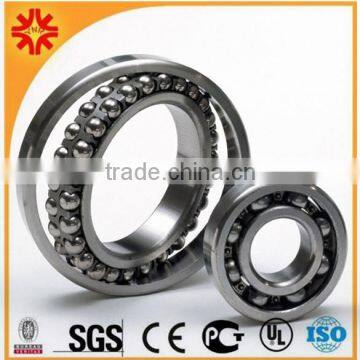

Product images

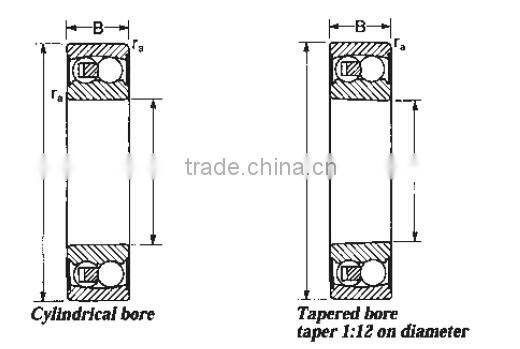

Dimension of 2206E2RS1K
| Designation | Dimension | Basic radial load rating | Speed rating | |||
| d | D | W | ||||
| mm | mm | mm | dynamic C | static C0 | grease | |
| N | N | rpm | ||||
| 2200E2RS1 | 10 | 30 | 14 | 5530 | 1180 | 17000 |
| 2201E2RS1 | 12 | 32 | 14 | 6240 | 1430 | 16000 |
| 2202E2RS1 | 15 | 35 | 14 | 7410 | 1760 | 14000 |
| 2203E2RS1 | 17 | 40 | 16 | 8840 | 2200 | 12000 |
| 2204E2RS1 | 20 | 47 | 18 | 12700 | 3400 | 10000 |
| 2205E2RS1 | 25 | 52 | 18 | 14300 | 4000 | 9000 |
| 2206E2RS1 | 30 | 62 | 20 | 15600 | 4650 | 7500 |
| 2207E2RS1 | 35 | 72 | 23 | 19000 | 6000 | 6300 |
| 2208E2RS1 | 40 | 80 | 23 | 19900 | 6950 | 5600 |
| 2209E2RS1 | 45 | 85 | 23 | 22900 | 7800 | 5300 |
| 22102RS1 | 50 | 90 | 23 | 22900 | 8150 | 4800 |
| 2211E2RS1 | 55 | 100 | 25 | 27600 | 10600 | 4300 |
| 2212E2RS1 | 60 | 110 | 28 | 31200 | 12200 | 3800 |
| 2213E2RS1 | 65 | 120 | 31 | 35100 | 14000 | 3600 |
| 22142RS1 | 70 | 125 | 31 | 34500 | 13700 | 3400 |
| 2302E2RS1 | 15 | 42 | 17 | 10800 | 2600 | 12000 |
| 2303E2RS1 | 17 | 47 | 19 | 12700 | 3400 | 11000 |
| 2304E2RS1 | 20 | 52 | 21 | 14300 | 4000 | 9500 |
| 2305E2RS1 | 25 | 62 | 24 | 19000 | 5400 | 7500 |
| 2306E2RS1 | 30 | 72 | 27 | 22500 | 6800 | 6700 |
| 2307E2RS1 | 35 | 80 | 31 | 26500 | 8500 | 5600 |
| 2308E2RS1 | 40 | 90 | 33 | 33800 | 11200 | 5000 |
| 2309E2RS1 | 45 | 100 | 36 | 39000 | 13400 | 4500 |
| 2310E2RS1 | 50 | 110 | 40 | 43600 | 14000 | 4000 |
| with tapered bore | ||||||
| 2205E2RS1K | 25 | 52 | 18 | 14300 | 4000 | 9000 |
| 2206E2RS1K | 30 | 62 | 20 | 15600 | 4650 | 7500 |
| 2207E2RS1K | 35 | 72 | 23 | 19000 | 6000 | 6300 |
| 2208E2RS1K | 40 | 80 | 23 | 19900 | 6950 | 5600 |
| 2209E2RS1K | 45 | 85 | 23 | 22900 | 7800 | 5300 |
| 22102RS1K | 50 | 90 | 23 | 22900 | 8150 | 4800 |
| 2211E2RS1K | 55 | 100 | 25 | 27600 | 10600 | 4300 |
