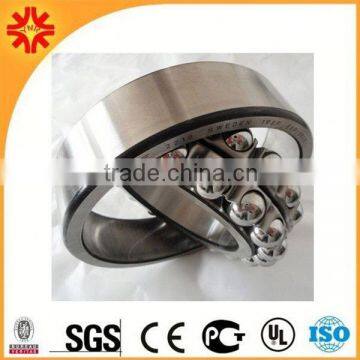

Alibaba Good Price Self Aligning Ball Bearing 2205 2205 TV
Self-aligning ball bearings
Self-aligning bearings of the basic design are available with both a cylindrical bore and a tapered bore with a 1:12 taper. Tapered bore bearings are furnished with adapter sleeves, including nut and lock washer, with which the bearings can be secured to smooth or stepped shafts. They are identified by suffix letter K.
Sealed Bearings
Self-aligning bearings with cylindrical and tapered bores are available with contact seals on both sides, identified by the suffix 2RS1. The seals are made of oil and wear resistant synthetic rubber reinforced by a steel insert.
Sealed bearings with a tapered bore require a special adapter sleeve and lock washer identified by the suffix letter C. The lock washers have a circular beading on the side facing the bearing to prevent interference
with the seal.
Product images
Drawing & Specification
| Part No. | Dimensions (Metric) | Approx. | Interchange | ||||||
| d | D | B | Wgt. lbs | ||||||
| 2200 | 10 | 30 | 14 | 0.11 | 2200 TV | 2200 SA | 2200 E | 2200 E | 2200 E/TG |
| 2201 | 12 | 32 | 14 | 0.12 | 2201 TV | 2201 SA | 2201 E | 2201 E | 2201 E/TG |
| 2202 | 15 | 35 | 14 | 0.14 | 2202 TV | 2202 SA | 2202 E | 2202 E | 2202 E/TG |
| 2203 | 17 | 40 | 16 | 0.2 | 2203 TV | 2203 SA | 2203 E | 2203 E | 2203 E/TG |
| 2204 | 20 | 47 | 18 | 0.31 | 2204 TV | 2204 SA | 2204 E | 2204 E | 2204 E/TG |
| 2205 | 25 | 52 | 18 | 0.36 | 2205 TV | 2205 SA | 2205 E | 2205 E | 2205 E/TG |
| 2206 | 30 | 62 | 20 | 0.58 | 2206 TV | 2206 SA | 2206 E | 2206 E | 2206 E/TG |
| 2207 | 35 | 72 | 23 | 0.89 | 2207 TV | 2207 SA | 2207 E | 2207 E | 2207 E/TG |
| 2208 | 40 | 80 | 23 | 1.11 | 2208 TV | 2208 SA | 2208 E | 2208 E | 2208 E/TG |
| 2209 | 45 | 85 | 23 | 1.2 | 2209 TV | 2209 SA | 2209 E | 2209 E | 2209 E/TG |
| 2210 | 50 | 90 | 23 | 1.3 | 2210 TV | 2210 SA | 2210 E | 2210 E | 2210 E/TG |
| 2211 | 55 | 100 | 25 | 1.79 | 2211 TV | 2211 SA | 2211 E | 2211 E | 2211 E/TG |
| 2212 | 60 | 110 | 28 | 2.4 | 2212 TV | 2212 SA | 2212 E | 2212 E | 2212 E/TG |
| 2213 | 65 | 120 | 31 | 3.22 | 2213 TV | 2213 SA | 2213 E | 2213 E | 2213 E/TG |
| 2214 | 70 | 125 | 31 | 3.35 | 2214 | 2214 SA | 2214 | 2214 | 2214 |
| 2215 | 75 | 130 | 31 | 3.57 | 2215 | 2215 SA | 2215 | 2215 | 2215 |
| 2216 | 80 | 140 | 33 | 4.43 | 2216 | 2216 SA | 2216 E | 2216 E | 2216 E/TG |
| 2217 | 85 | 150 | 36 | 5.56 | 2217 | 2217 SA | 2217 | 2217 | 2217 |
| 2218 | 90 | 160 | 40 | 7.5 | 2218 | 2218 SA | 2218 | 2218 | 2218 |
| 2219 | 95 | 170 | 43 | 9.04 | 2219 | 2219 SA | 2219 | 2219 | 2219 |
| 2220 M | 100 | 180 | 46 | 11.1 | 2220 M | 2220 SA | 2220 | 2220 | 2220 |
| 2221 M | 105 | 190 | 50 | 15.06 | - | 2221 SA | 2221 | 2221 | - |
| 2222 M | 110 | 200 | 53 | 17.73 | 2222 M | 2222 SA | 2222 | 2222 | 2222 M |
| 2224 M | 120 | 215 | 58 | 22.41 | - | - | - | - | - |
| 2226 M | 130 | 230 | 64 | 27.9 | - | - | - | - | - |
| 2228 M | 140 | 250 | 68 | 35.41 | - | - | - | - | - |
| 2230 M | 150 | 270 | 73 | 44.87 | - | - | - | - | - |
1. We are Professional bearing factory since 2004.We offer high quality bearing with competitive price.
2. 24-hour response on line and provide technical support.
3. Huge stock goods ensure you Very Short Delivery Time(Generally 1- 3 days after payment for stocks, 15 - 30 days for OEM and new items.
4. Good after-sale service (12 months quality warranty, money can be deducted or refund if any quality problem).
5. OEM/Customized service are welcomed.
6. Various kinds of bearings and brands available.
7.100% test the quality and packing before delivery.
8. Free sample available.
