LM type 60*90*110 mm Linear motion bearing LM60OP
LM type 60*90*110 mm Linear motion bearing LM60OP
bearings & linear bearing feature
2.linear motion system
3.small load
4.high-precision and smooth movement
5.OEM avaliable
Specifications:
linear bearings are used in conjunction with quenching. For the infinite linear motion system.
Load balls and hardened shaft because it is point contact, allowing smaller loads, but the straight line movement,
minimal friction, high precision and fast motion.

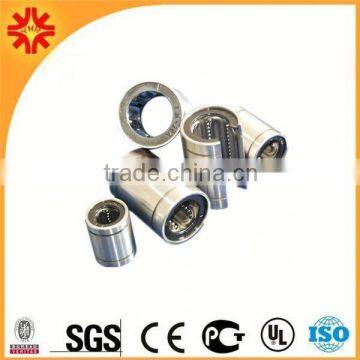

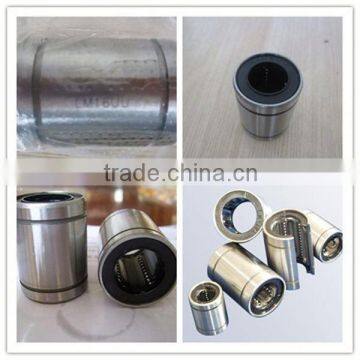

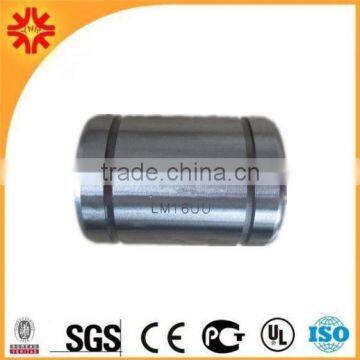

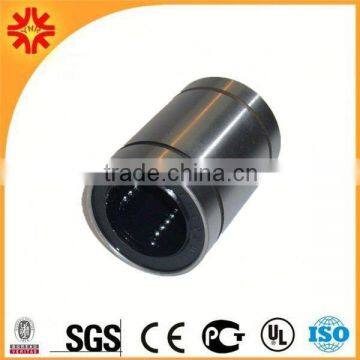

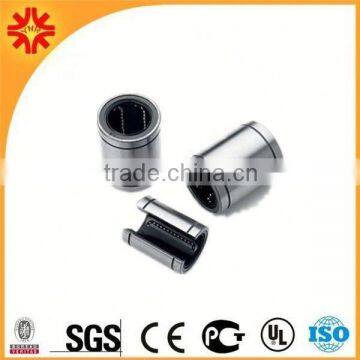

Picture:
Type:

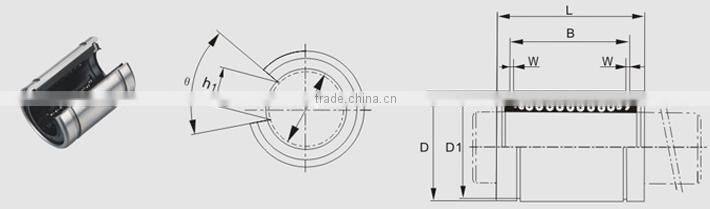

Drawing:
Parameter:
| Bearing code | Number of ball row | Main dimension | Basic load rating | Weight | ||||||||
| Inner diameter | Outer diameter | Length | Outer locking groove | W | hl | θ | Dynamic | Static | ||||
| dr | D | L | B | D1 | c(kgf) | Co(kgf) | ||||||
| LM10OP | 3 | 10 | 19 | 29 | 22 | 18 | 1.3 | 6.8 | 80° | 38 | 56 | |
| LM12OP | 3 | 12 | 21 | 30 | 23 | a20 | 1.3 | 8 | 80° | 42 | 61 | 24 |
| LM13OP | 3 | 13 | 23 | 32 | 23 | 22 | 1.3 | 9 | 80° | 52 | 79 | 32 |
| LM16OP | 4 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 11 | 80° | 79 | 120 | 58 |
| LM20OP | 4 | 20 | 32 | 42 | 30.5 | 30.5 | 1.6 | 11 | 60° | 88 | 140 | 72 |
| LM25OP | 5 | 25 | 40 | 59 | 41 | 38 | 1.85 | 12.5 | 60° | 100 | 160 | 177 |
| LM30OP | 5 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 15 | 60° | 160 | 280 | 196 |
| LM35OP | 5 | 35 | 52 | 70 | 49.5 | 49 | 2.1 | 17.5 | 60° | 170 | 320 | 320 |
| LM40OP | 5 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 20 | 60° | 220 | 410 | 464 |
| LM50OP | 5 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 25 | 60° | 390 | 810 | 1180 |
| LM60OP | 5 | 60 | 90 | 110 | 85 | 86.5 | 3.15 | 30 | 60° | 480 | 1020 | 1700 |
Packaging & Shipping:
1. Normally use default industrial package with our own logo, customerized logo and marking is also acceptable.
2. Make special plywood box for big bearing or small bearing big order.
Leading time:
--Normally we have most bearings in stock with plenty quantities, so we are able to ship the goods immediately once confirm your payment.
-- For big order or special new design bearing, we need around 20 days for production then ship out.
Payment terms
-- 30% paid in advance as deposit, the balance shall be cleared before shipping-
-- other payment methods: Paypal, WestUnion, etc.
About our company:
Nanjing Younarui Bearing Co., Ltd. is a professional and one of the leading manufacturer of variouse bearings since 2004. After many years efforts,
our company has got very good reputation and establish long term business relationship with many client from both at home and abroad, especially in European and American markets.
Our own bearing brand is "YNR". Welcome to contact us.
Our Main products:
Spherical roller bearing, deep groove ball bearing, taper roller bearing, thrust bearing, angular contact ball bearing, cylindrical roller bearing, thrust ball bearing, thrust roller bearing,
self-aligning roller bearing, needle roller bearing, linear guide bearing and slewing bearing, etc.
We are professional company and sales various types of bearings,click the following picture to check the details informations of other bearings:
|
|
| Deep groove ball bearing | Needle bearings |
|
|
| Cylindrical roller bearing | Thrust spherical roller bearing |
If haven't find the product you want,pls contact us directly!!!
1,What about the MOQ?Can you accept sample order?
------Our company MOQ is 1pc,we can accept sample order.
2,Can you accept OEM/ODM?
------Yes,we can.Customizing according to your requirement or drawing.
3,Do you supply door to door service?
------By air or express(DHL,FEDEX,EMS etc.)
4,Could you tell me the materials of your bearings?
------ Chrome steel, carbon steel, and stainless steel, ceramic an d plastic material.
5, Your company is a factory or trading company?
------ We have our own factory,also doing trade.
