YAG Laser Metal Cutting Machine Price
US$ 40,000 - 75,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Metal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale! Small Scale YAG Laser Cutting Machine DW-0505/0404/0303 Cutting Surface Smooth Less DrossUS$ 12,000 - 80,000MOQ: 1 Set -
Metal Laser Cutting Machine YAG 500WUS$ 36,000 - 42,000MOQ: 1 Set
-
YAG Laser Cutting Machine for Aluminum/carbon Steel/metalUS$ 12,000 - 80,000MOQ: 1 Set
-
Large Scale YAG Laser Cutting Machine for Advertising SignsUS$ 12,000 - 80,000MOQ: 1 Set
-
DW-0505 500 1mm Gold Sliver Laser Cutting MachineUS$ 12,000 - 80,000MOQ: 1 Set
Condition
New
Laser Type
Fiber Laser
Applicable Material
Metal
Cutting Thickness
10mm
Cutting Area
2500*1300mm
Cutting Speed
35mm/s
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
Leetro
Graphic Format Supported
AI, BMP, DST, DWG, DXF, PLT
Place of Origin
Shandong, China
Brand Name
DWIN
Model Number
YAG 0505/0404/0303/2513/3015/4115
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

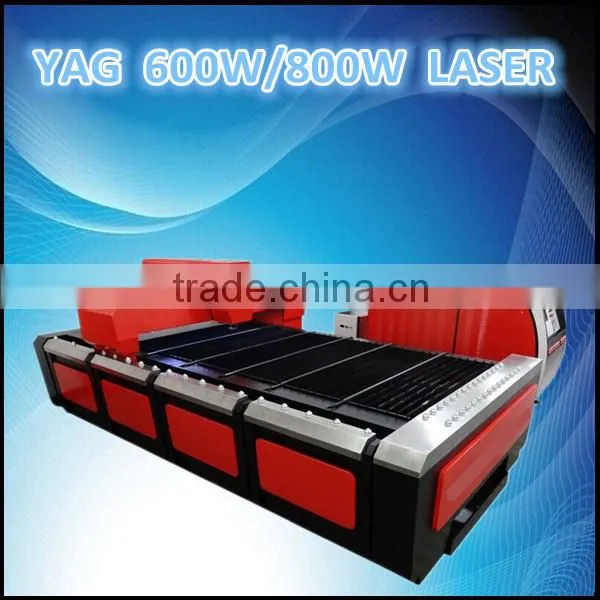

DW-YAG 0505/0404/0303/2513/3015/4115 YAG laser metal cutting machine price
laser metal cutting machine price Features
1) Cutting surface is smooth and less dross. The maximum thickness is up to 10mm (cutting carbon steel). This is the maximum cutting thickness in small and medium power YAG cutting industry.
2) Stainless steel below 4mm and mild steel below 8mm can just use air to laser cut (no required oxygen gas . Good cutting effect, maximizing reducing use-cost.
3) Metal parts of different shapes can be auto arranged in an optimal way. Excess material nesting function enable excess material reuse. Material saving up to 8%-10% than general processing
4) Dynamic focusing system. When cutting different thickness metal sheets and uneven materials, adjusting focus is no required, so as to achieve fast cutting and greatly improve working efficiency
5) Rotary attachment can be optional equipped for metal tubes / metal pipes cutting and positioning punching
Application

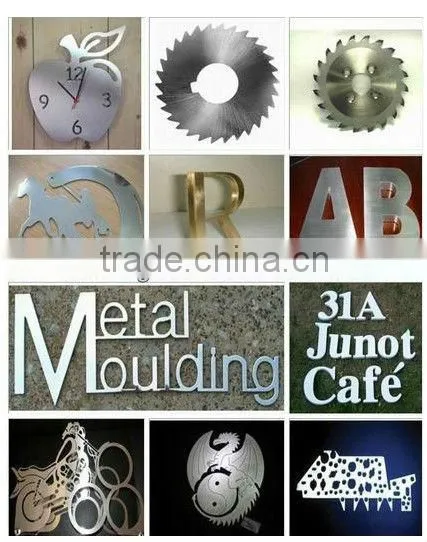

YAG Laser cutting machine has been widely used in manufacturing billboard ,sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware , saw bits ,precision metal parts ,metal artware
Applicable materials
Stainless steel ,mild steel/carbon steel ,Copper, aluminum, alloy steel ,spring steel ,galvanized plate ,aluminum coated plate and some other alloy plate and pipe including titanium alloy etc
Technical Parameter
|
Model
|
DW-YAG-4115 |
DW-YAG-3015
|
DW-YAG-2513 |
Working area |
4100*1500mm |
3000*1500mm |
2500*1300mm |
Max output power |
600W |
600W |
600W |
Max Cutting thickness |
10mm( carbon steel) |
10mm( carbon steel) |
10mm( carbon steel) |
Laser wavelength |
1064nm |
1064nm0 |
1064nm |
Pulse frequency |
1-300HZ |
1-300HZ |
1-300HZ |
Max Cutting speed |
35mm/s |
35mm/s |
35mm/s |
X Y Z Positioning accuracy / X Y Z |
<+-0.08mm |
<+-0.08mm |
<+-0.08mm |
X Y Z re-orientation accuracy /X Y Z |
<=+-0.04mm |
<=+-0.04mm |
<=+-0.04mm |
Machine weight |
4100KG |
4100KG |
4100KG |
Cooling model |
Water cooling |
Water cooling |
Water cooling |
Power Supply |
380V/50HZ |
380V/50HZ |
380V/50HZ |

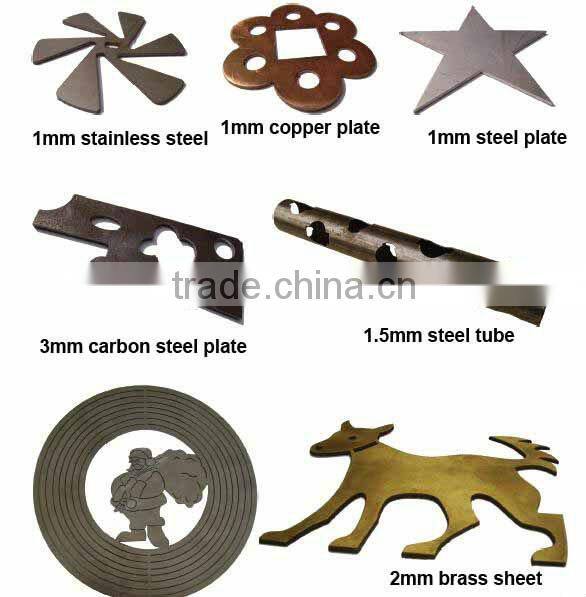

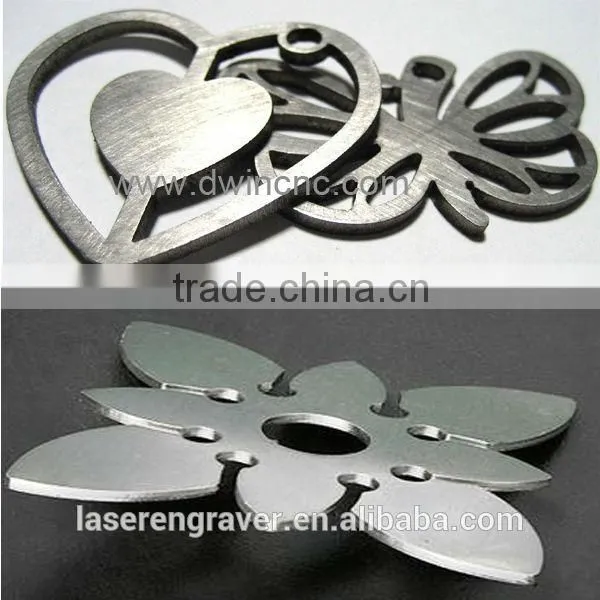

Sample
