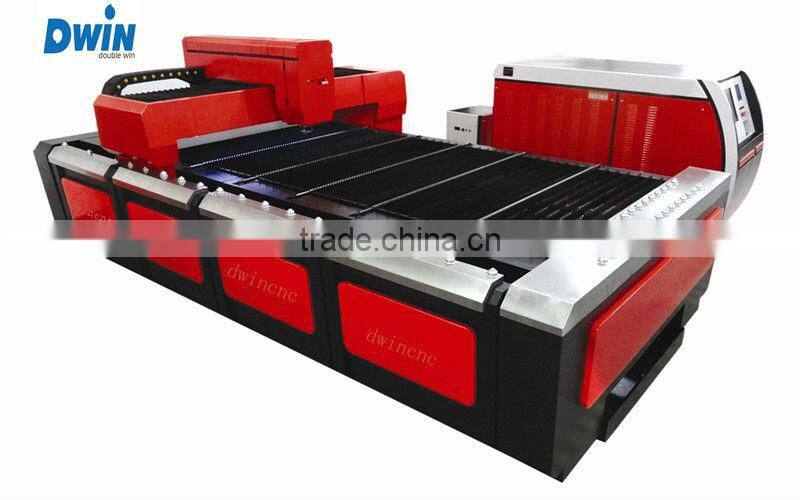

DW1325 Cnc 600w YAG Laser Cutting Machine Steel Board

DW1325 Cnc 600w YAG Laser Cutting Machine Steel Board photo-1
DW1325 Cnc 600w YAG Laser Cutting Machine Steel Board photo-2

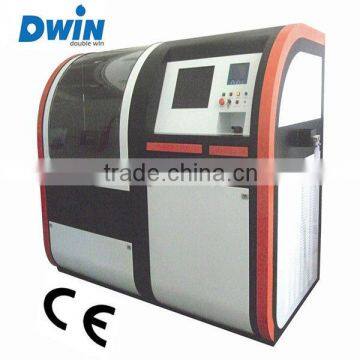

DW1325 Cnc 600w YAG Laser Cutting Machine Steel Board photo-3

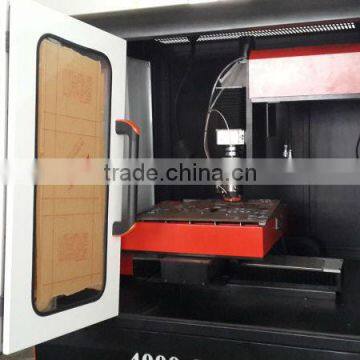

DW1325 Cnc 600w YAG Laser Cutting Machine Steel Board photo-4

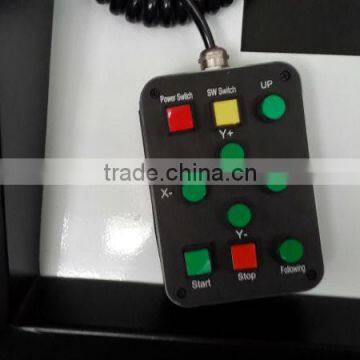

DW1325 Cnc 600w YAG Laser Cutting Machine Steel Board photo-5
DW1325 Cnc 600w YAG Laser Cutting Machine Steel Board photo-6
US$ 12,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
YAG
Applicable Material:
Metal, Other, Metal, DW1325 cnc 600w YAG laser cutting machine steel board
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Laser Type YAG
Applicable Material Metal, Other, Metal, DW1325 cnc 600w YAG laser cutting machine steel board
Cutting Thickness 10mm( carbon steel)
Cutting Area 1300mmX2500mm
Cutting Speed 35mm/s
CNC or Not Yes
Cooling Mode Water Cooling
Control Software DW1325 cnc 600w YAG laser cutting machine steel board
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin Shandong, China
Brand Name Dwin DW1325 cnc 600w YAG laser cutting machine steel board
Model Number DW1325 cnc 600w YAG laser cutting machine steel board
Certification CE, ISO
After-sales Service Provided Engineers available to service machinery overseas

   DW1325 cnc 600w YAG laser cutting machine steel board


feathures



1. Cutting surface is smooth and less dross. The maximum thickness is up to 10mm (cutting carbon steel). This is the maximum cutting thickness in small and medium power YAG cutting industry.

2. Stainless steel below 4mm and mild steel below 8mm can just use air to laser cut (no required oxygen gas . Good cutting effect, maximizing reducing use-cost.3. Metal parts of different shapes can be auto arranged in an optimal way. Excess material nesting function enable excess material reuse. Material saving up to 8%-10% than general processin
4. Dynamic focusing system. When cutting different thickness metal sheets and uneven materials, adjusting focus is no required, so as to achieve fast cutting and greatly improve working efficiency

5. Rotary attachment can be optional equipped for metal tubes / metal pipes cutting and positioning punching







  DW1325 ooi cnc yag metal  laser cutting machine
YAG Laser cutting machine has been widely used in manufacturing billboard ,sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware , saw bits ,precision metal parts ,metal artware



Applicable materials



Stainless steel ,mild steel/carbon steel ,Copper, aluminum, alloy steel ,spring steel ,galvanized plate ,aluminum coated plate and some other alloy plate and pipe including titanium alloy etc











Technology





  DW1325 ooi cnc yag metal  laser cutting machine

Model



DW-YAG--4115



DW-YAG-3015



DW-YAG-2513



Working area

4100*1500mm

3000*1500mm

2500*1300mm

Max output power

600W

600W

600W

Max Cutting thickness

10mm(carbon steel

10mm( carbon steel

10mm(carbon steel)

Laser wavelength

1064nm

1064nm0

1064nm

Pulse frequency

1-300HZ

1-300HZ

1-300HZ

Max Cutting speed

35mm/s

35mm/s

35mm/s

X Y Z Positioning accuracy

<+-0.08mm

<+-0.08mm

<+-0.08mm

X Y Z re-orientation accuracy

<=+-0.04mm

<=+-0.04mm

<=+-0.04mm

Machine weight

4100KG

4100KG

4100KG

Cooling model

Water cooling

Water cooling

Water cooling

Power Supply

380V/50HZ

380V/50HZ

380V/50HZ

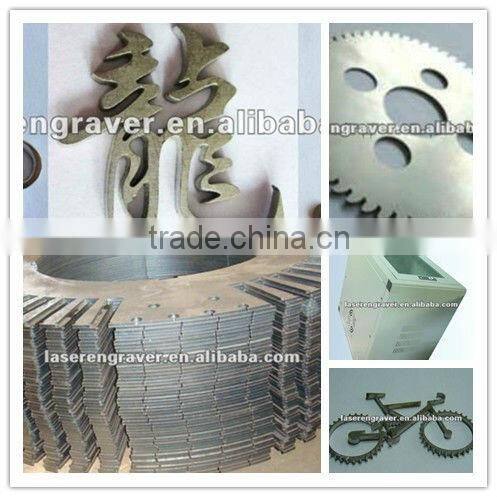

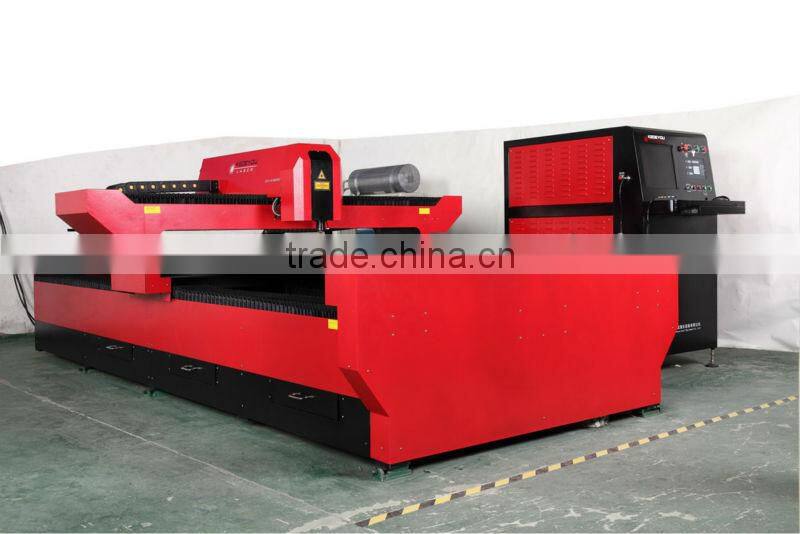

machine and samples

 DW1325 cnc 600w YAG laser cutting machine steel boardDW1325 cnc 600w YAG laser cutting machine steel board

DW1325 cnc 600w YAG laser cutting machine steel board



Our Services


1)  The machine guarantee is 18 months.

2)  24 hours technical support by email or calling.

3)  Friendly English verson manual and operation video CD disc.

last but not the least Dear customer, this just a normal model ,if you have any special application or materials,please don't hesitate to tell us ,we can manufacture as your request and give you a satisfying result .

Besides,we have many kinds  of the machine fittings ,if you need help,please contact us ,we are willing to help you!
