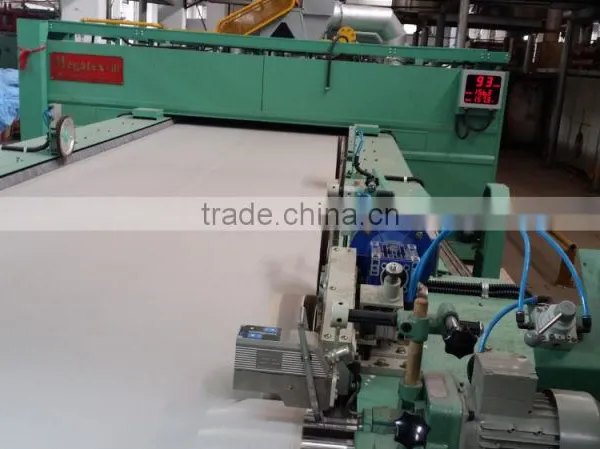

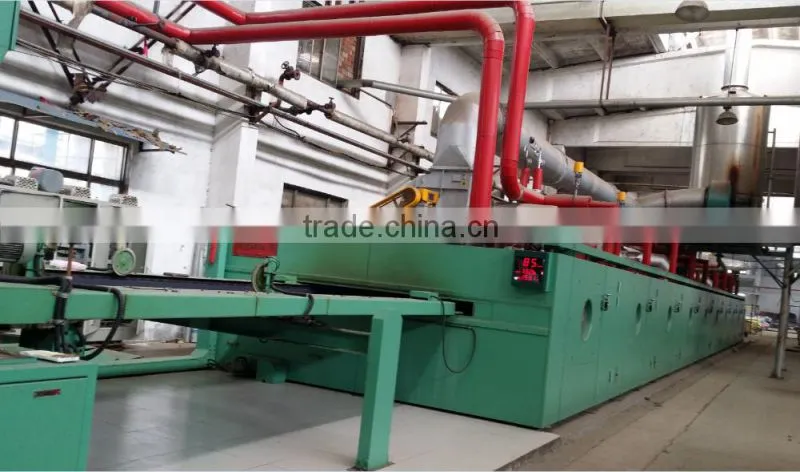

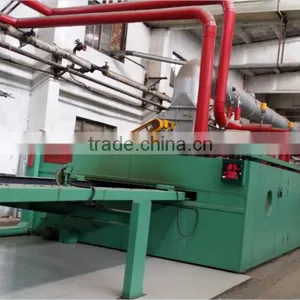

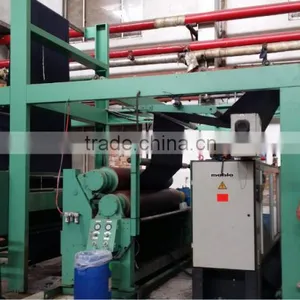

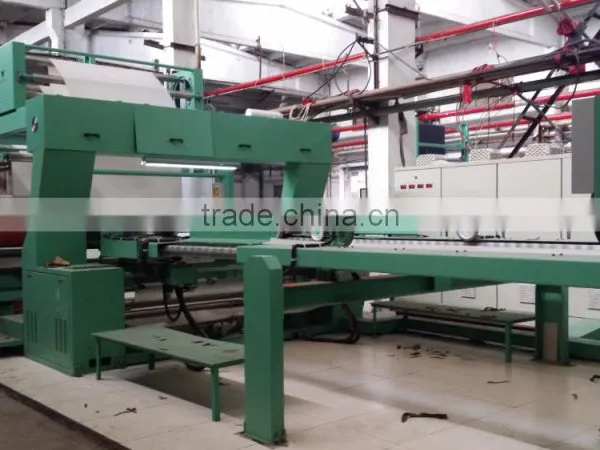

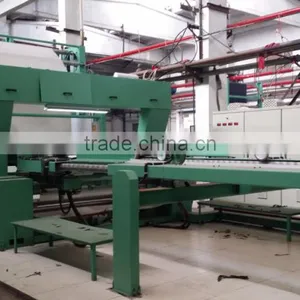

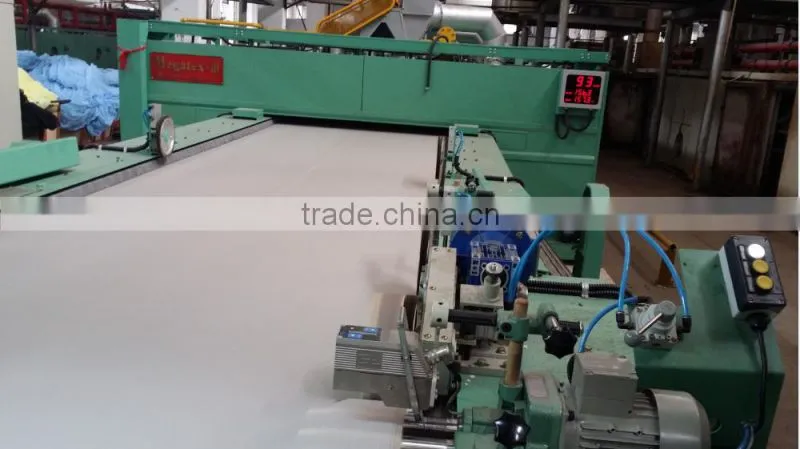

Tenter heat setting machine
- 30 Set / Sets per Month
- Shanghai
- Full-automatic ultrasonic zipper point cutting
- Fabric Powder Coating Machine for Interlining
- fabric inspection machine / textile rolling and cutting machine
- professional industrial textile fabric finishing inspection table machine for garment factory
- High Quality Fabric Inspection Cum Winding Machine
- factory hot sales woven fabric rolling inspection machine
Product Details
Condition: | New | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
Brand Name: | HD | Model Number: | HD998T-240 | Voltage: | 380v |
Dimension(L*W*H): | 40135*4716*6000 | Weight: | 65 tons | Certification: | CE mark |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Application
This machine is mainly used for stentering, setting, finishing the cotton fabric, poly-cotton fabric, polyester fabric, elastic fabric, jeans, canvas after desizing, mercerizing and coating.
Main Technical Flow:

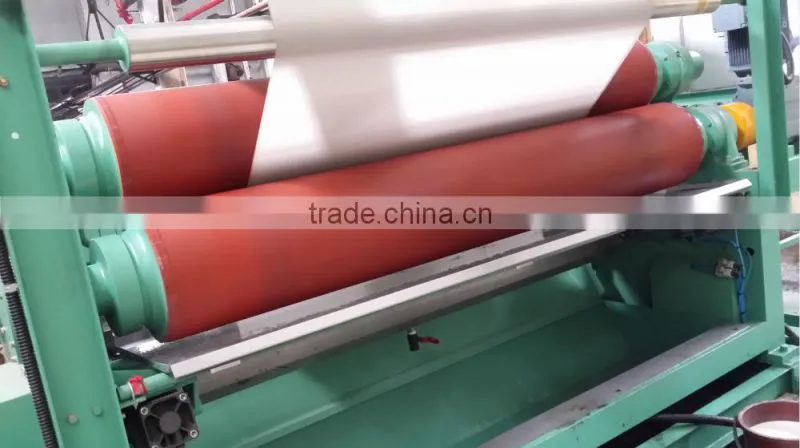

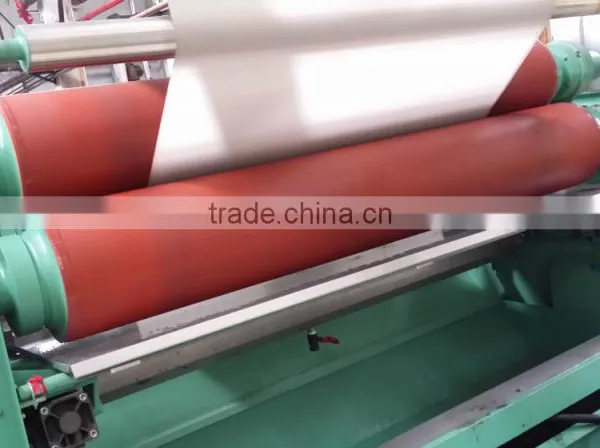

pen-width feeding fabric -- TM10 fabric tensioning device -- infrared centring device -- two-roller padder -- photoelectric weft straightener -- rectifying deviation, expanding, spreading device -- screw thread spreading roller -- upper overfeeding device -- three-finger curling edge -- infrared ray rack detecting edge -- pinning on -- one set of conditioning box -- 7 chambers natural gas setting -- one group of cold wind cooling -- double-roller pinning off -- back overfeeding -- two pieces of cold water roller for cooling -- open-width swinging doffing and winding.
Machine Parts
Name: Burners
Brand: Maxon
Original: USA
Machine parts

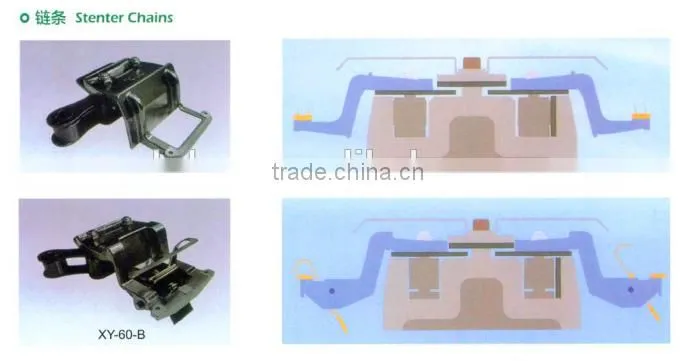

Name: Chains
Brand: XTY
Original: China
Machine Parts
Name: Temperature controller
Original: China

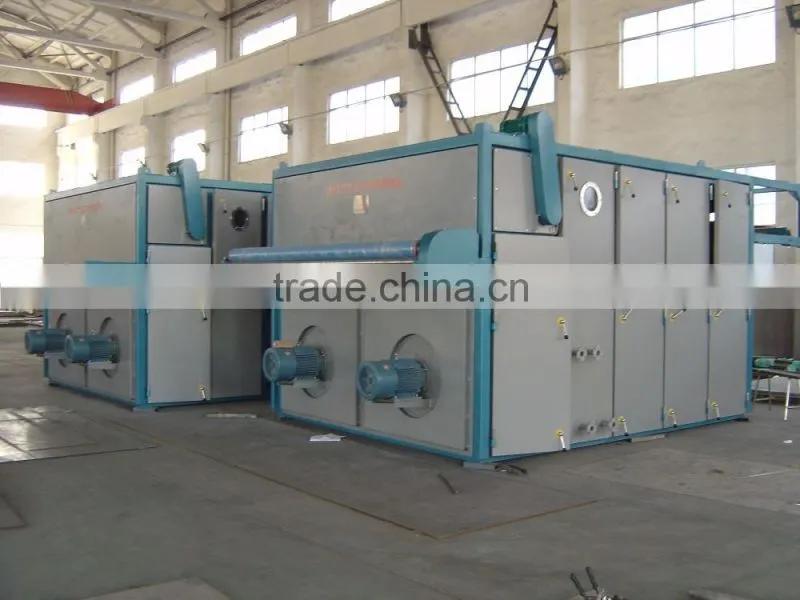

Each drying chamber has one set of thermal karosine proportional temperature , allowing the setting of a proper working temperature at insignificant error allowance at any time
Machine parts

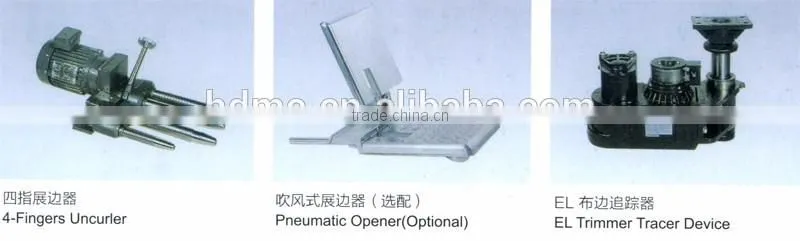

4-finger uncurler,
pneumatic opener,
EL trimmer tracer device
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
