Specifications
1. Long loop2. Steamer
3. Variable frequency
4. different feeding and oulet types

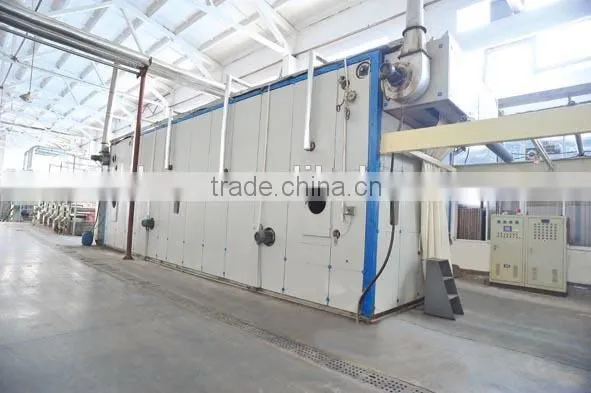

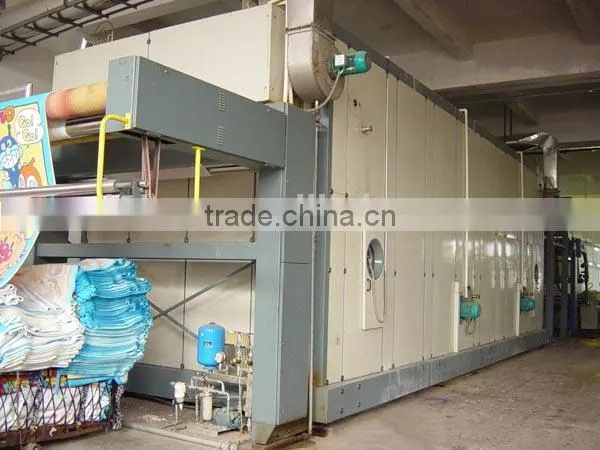

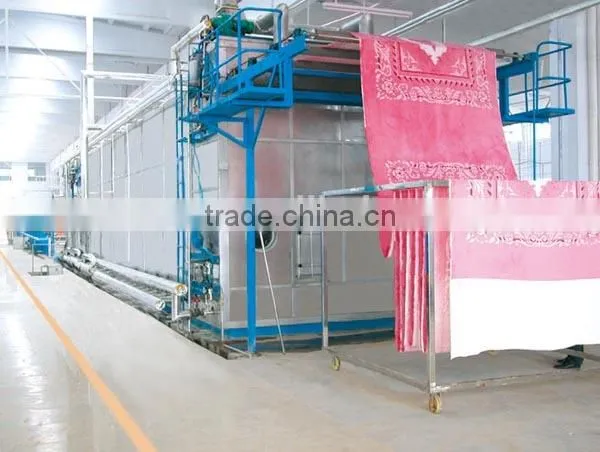

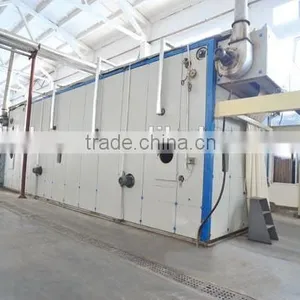

HD180~380 Long loop steamer
Specifications:
Model: HD-180
Machine direction: left hand or right hand
Cloth drive roller width series: 1800-3800mm (200mm staged increase)
Fabric width series: (single width or double width) 1600-3600mm.
Fabric content: 140,210, 280, 350, 420, 490m(content of single width,single layer)
Loop length: 1.25~2.5km, regulation ratio 1:2
Max fabric speed: 40,50 or 80 or 100m/min.
-
High temperature heating source:
Indirect heating: Light diesel oil,middle light diesel,heavy oil,natural gas,city gas,superheated steam.
Direct heating: Electricity.
-
Medium of temperature and steaming:
Saturated steam: 100°C
Low temperature superheated steam:>100°C~115°C
High temperature superheated steam: 150°C~185°C and above 185°C.
Dry & hot air: 150°C~185°C and above 185°C.
-
According to fabric speed and fabric content: 1.75~35 min()
2.1~42min(fabric content:210m,fabric speed: 5~50m/min)
Fabric in & out device placed in front and back sides or the same sides. Applicable for single width,single layer,single width,double layers,double width double layers,woven fabric and knitted fabric. No Sublimation and pollution when absorbing dye,single width double layers and double width double layers will achieve only knitted and woven fabric without crimping.
Transmission method: frequency conversion motor.
Steaming fixation and drying of natural fiber,synthetic fiber,chemical fiber and blended woven,knitted and non-woven fabric, gram weight of each square meter: 56~450g/m2
Direct dye,reduction dye,active dye,disperse dye,acid sundries,metal chrome dye,coating and salt tsuen dye etc.
Min. steam pressure: 3 MPQ
Max. allowable temperature of condensate water: 60°C
