Specifications
1. three rollers2. vertical calender
3. air cooling
4. multi functions

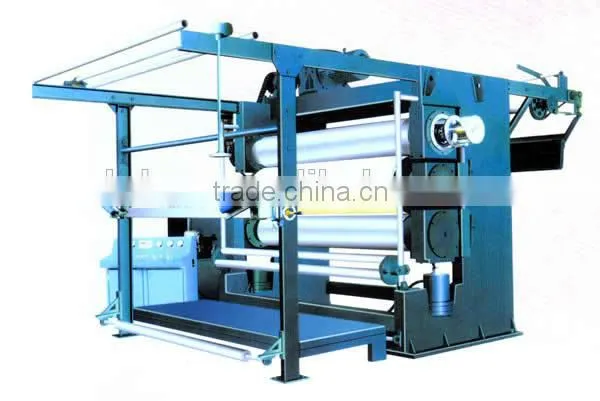

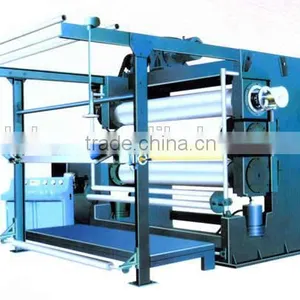

MH360 three rollers vertical calender
1. Application:
It is used for calendering finishing the fabrics of cotton,man-made fibers,linen and wool as well
as construction materials and plastic packing goods. This calender can also be used for smoothing,luster or embossing finishing if it is equipped with some special components.
2. Main specifications:
Item |
Content |
Remarks |
Type |
Vertical 3-roller |
The rollers from top to bttom are nylon roller,heating roller, nylon roller |
Drive side |
Left or right |
Facing to the fabric feed-in direction |
Nominal width |
2200mm |
The effective working width is 2200mm |
Fabric feed-in type |
Open width |
|
Fabric outlet type |
Plaiting or big batcher |
Separated motor control,with expanding roll |
Running speed |
The rule running speed is5-50m/min |
Digital display of the machine speed and the speed is adjustable |
Speed-adjust mode |
By inverter |
Chinese-brand,22KW |
Max pressuing among squeeze rollers |
0-120T |
Pressure is adjustable |
Pressing way |
Oil hydraulic type |
Adjust the pressure by hand |
