FRP Tank Widely Used in Water Softener RO System

FRP Tank Widely Used in Water Softener RO System thumbnail-1
FRP Tank Widely Used in Water Softener RO System photo-1
US$ 30 - 1,000 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Pentair
Model Number:
Structural Composite Vessels
Contact Supplier Request Quote Chat Now
Beijing Jiuzhou Qingyuan Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name Pentair
Model Number Structural Composite Vessels

Specifications

1. 100% composite fiberglass
2. capacity up to 2500 gallons
3. non-corrosion
4. 150 psi
5. different size

About the product



 Structural Composite Vessel

The non-corrosive, cost-effective solution for commercial/industrial water treatment and storage. Structural Composite Pressure Vessels offers fiberglass construction for outstanding performance and durability in harsh chemcial environment. With capacities up to 1600 gallons and a veriety of options, we can tailor a vessel to meet your needs.



Features

  • 100% composite fiberglass construction
  • Outstanding performance and durability in harsh chemical environments
  • Absolutely will not - and cannot - rust
  • Requires little or no maintenance
  • Capacities up to 2500 gallons
  • Factory-backed 5-year warranty
  • Materials of construction
Operating Parameters
  • Maximum operating pressure: 150psi
  • Maximum operating temperature: 150° F (flanged), 120° F ( threaded)
Specification

ABS Inner liner
Specification Size  Capacity  Opening Length from top to  bottom Length O.D. Base Form
(Inch)

(mm)

 (L) Top open (mm) (mm) (mm)
817

Φ 205× 445

 11.3 2.5''NPSM 446 432 206 pp
835

Φ 205× 905

 24.0 2.5''NPSM 905 891 206 pp
844 Φ 205× 1130 32.5 2.5''NPSM 1131 1117 206 pp
1017 Φ 255× 445 17.8 2.5''NPSM 447 433 257 pp
1035 Φ 255× 905 38.6 2.5''NPSM 903 889 257 pp
1054 Φ 255× 1390 61.9 2.5''NPSM 1390 1376 257 pp
1252 Φ 300× 1340 84.8 2.5''NPSM 1342 1332 305 pp
1265 Φ 300× 1650 106.3 2.5''NPSM 1650 1640 305 pp
1354 Φ 330× 1400 103.6 2.5''NPSM 1400 1390 334 pp
1465 Φ 355× 1670 145.6 2.5''NPSM 1671 1661 360 pp
1465 Φ 355× 1670 145.6 4''-8UN 1671 1661 360 pp
1665 Φ 400× 1670 187.7 2.5''NPSM 1672 1662 410 pp
1665 Φ 400× 1670 187.7 4''-8UN 1672 1662 410 pp



FRP Inner liner

Specification Size Capacity Opening Form Length from top to  bottom   Length   O.D. Base Form
(Inch) (mm) (L) Top Bottom (mm) (mm) (mm)

(tripod)
2472 Φ 600× 1850 441 4''-8UN - 1850 1750 612 tripod
2472 Φ 600× 1850 421 4''-8UN 4''-8UN 1850 1680 612 tripod
3072 Φ 750× 1850 676 6''-8UN - 1850 1750 765 tripod
3072 Φ 750× 1850 640 4''-8UN 4''-8UN 1850 1670 765 tripod
3672 Φ 900× 1850 857 4''-8UN 4''-8UN 1850 1600 918 tripod
4072 Φ 1000× 1850 1046 4''-8UN 4''-8UN 1850 1605 1020 tripod
4872 Φ 1200× 1850 1202 flange flange 1850 1558 1224 tripod

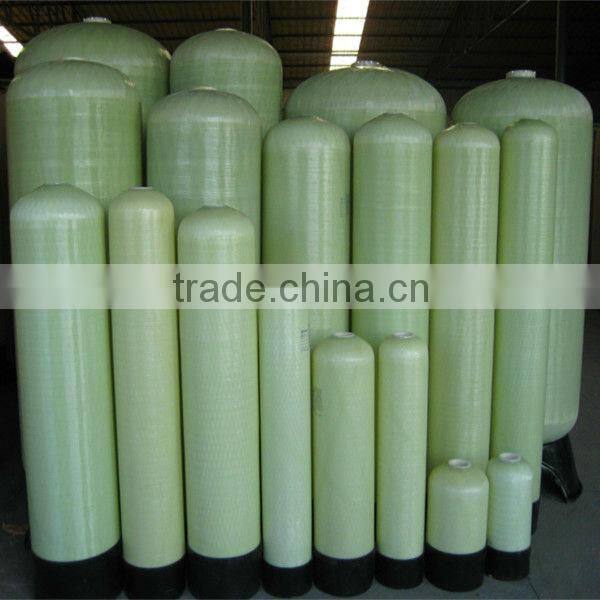

Different sizes of tanks

FRP Tank widely used in Water Softener RO System


Different base
FRP Tank widely used in Water Softener RO System

FRP Tank widely used in Water Softener RO System

Blue Tanks for your reference
FRP Tank widely used in Water Softener RO System

 Products related



 FRP Tank widely used in Water Softener RO System



FRP Tank widely used in Water Softener RO System
