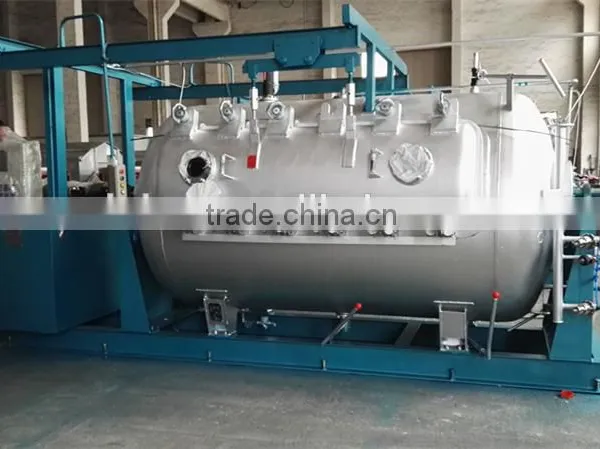

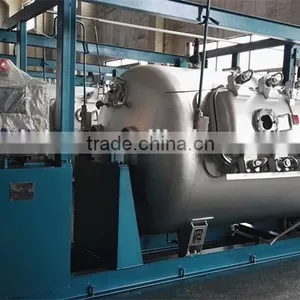

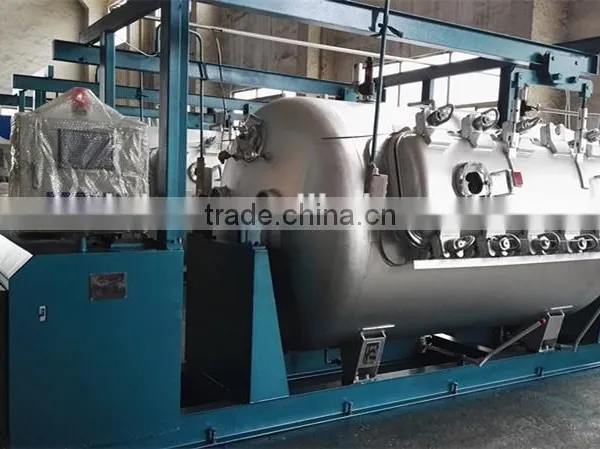

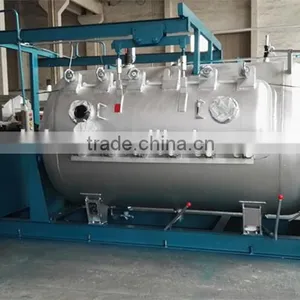

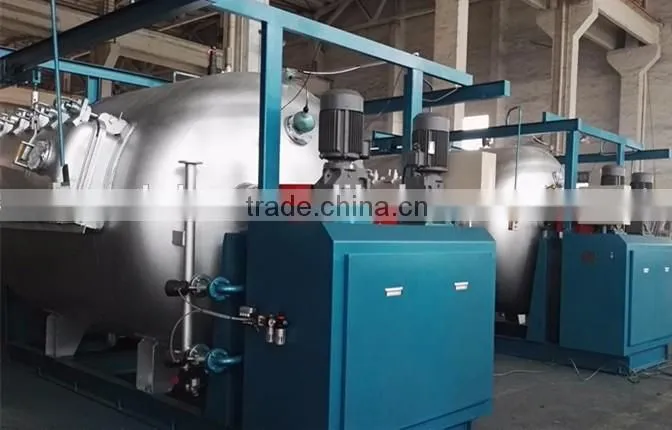

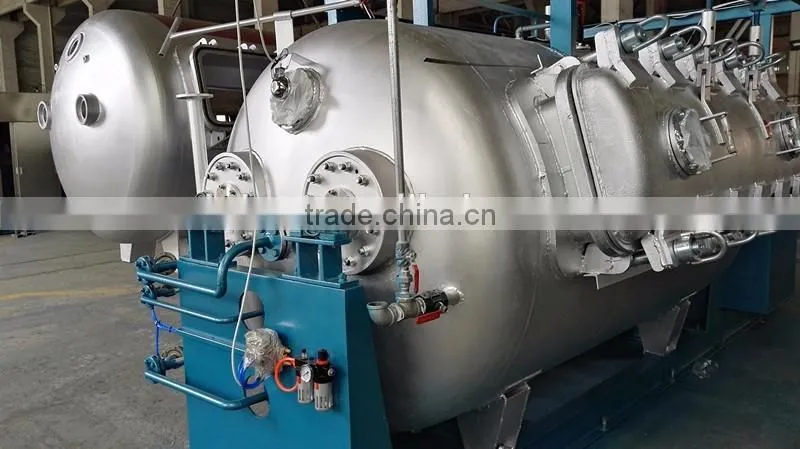

HD NGR series High temperature High pressure
dual-inverter open width Dye Jigger
NGR series HT-HP automatic dye jigger is one of the necessary dyeing equipment for chemical and blended fabric. This machine is mainly composed of tank body, left & right side cover, master drum, dye vat, tension system, front and back support, electric appliance, drive system, outlet frame etc.
This machine adopts domestic high-quality low alloy steel plate, high quality stainless steel plate and high quality electric element, reasonable structure, high performance, safe and reliable operation, fit for different kinds of chemical fabric and ramie cotton fabric to regularly work under high temperature 130℃, it can also take the place of NT-NP jig dyeing machine.
Compared to other domestic jig dyeing machine, this machine has the following advantages: wide adaptability, good seal performance, saving steam, decreasing fog in the workshop, improving operation environment, convenient operation, safety in use.
Specifications:
1. High temperature high pressure
2. Automatic
3. Dye jigger
4. Horizontal opening way
Application:
Suitable fabric: polyester, viscose, nylon, elastic fabric, silk, cotton, jute and their blended fabric.
Main technical parameter:
| 1 | Rolling diameter | 〈Φ680mm 〈Φ800mm 〈Φ1000mm 〈Φ1200mm |
| 2 | Roller width | 1600mm ~ 3400mm |
| 3 | Efficient width | 1400mm ~ 3200mm |
| 4 | Fabric speed | 2~120m/min |
| 5 | Tension range | 0~60kg |
| 6 | Motor power | 2 sets 4~7.5kw |
| 7 | Temperature control range | 0~130℃ |
| 8 | Diameter or cloth roller | Φ220mm / Φ245mm / Φ300mm / Φ325mm |
Main control functions:
1 |
Whole machine is dual frequency converter control system, human-computer operation interface |
2 |
Set of constant tension, constant linear speed |
3 |
Functions of manual, automatic, speed up, slow down |
4 |
Automatic head back, automatic record the lines, automatic stop machine, automatic swing function if line is full |
5 |
Whole machine automatic temperature control, technological operation |
6 |
Operation screen programmable set, technology storage, automatic identification, automatic alarm |
Doffing Mode:

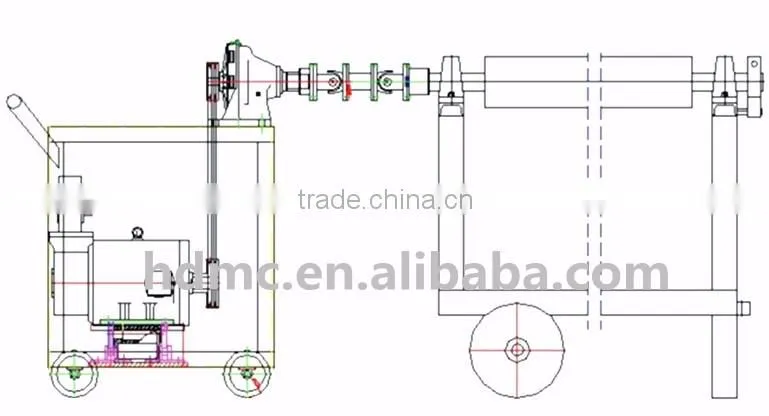

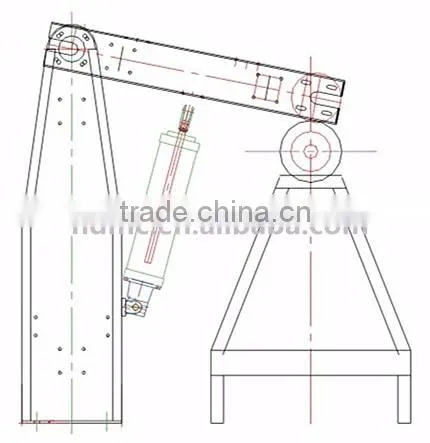

Large package doffing Swing folded doffing Movable universal doffing machine
(to A-frame) (to fabric truck) (to A-frame)
A-frame is a optional component depend on user's demand
