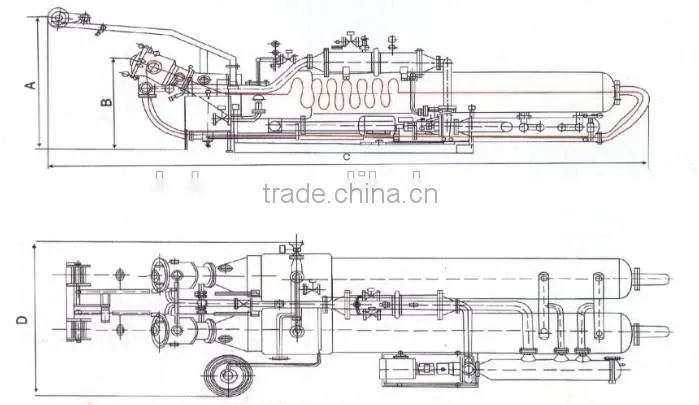

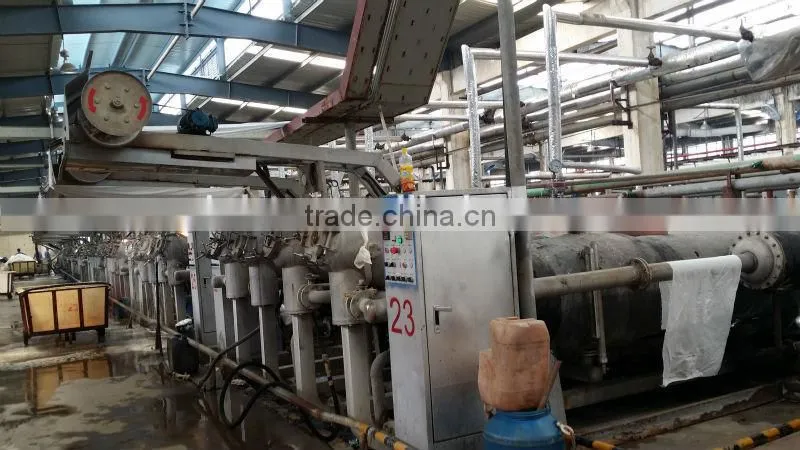

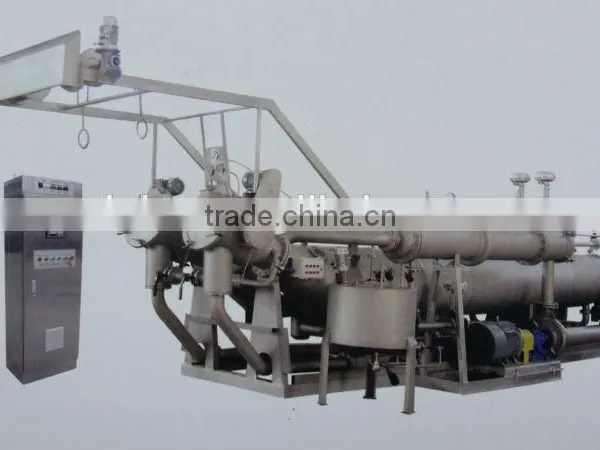

HF500A High Temperature Jet Overflow dyeing machine
Machine Feature:
Advanced multi-function high pressure overflow dyeing machine, mainly used in the weaving cloth of natural or synthetic fiber, string spin fiber (T/C, T/R, T/W) and dye of super hin fiber, compund fiber and pretreament with high extro value.
1. Low dyeing tension: equipped with colth guide roller, frequency conversion motor for cloth movement.
2. High efficiency with loose fiber, evenness dyeing: te perfect combination of reaming reel and nozzle of the master vessel, double jacket type, realize the smooth fabric flow of the weaveor materials of any type. The appearance and the double jacket structure eluded effectively the uneven dye and friction prints.
3. Fabric loading capacity: 50kg, 100kg, 250kg, 500kg, 1000kg.
Specifications:
| Model | Tube Qty: pcs | General power: kw | Shape Size: mm | ||
| L | W | H | |||
| HF250A | 1 | 23 | 10500 | 1570 | 2900 |
| HF500A | 2 | 43 | 10500 | 2270 | 2900 |
| HF1000A | 4 | 84 | 10500 | 5000 | 2900 |
