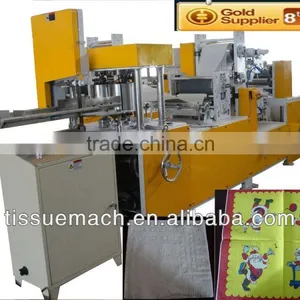

Help CenterCE Approved Printing Embossing Napkin Folder Machine
Related Products
-
N Fold Hand Towel Making MachineUS$ 10,000 - 50,000MOQ: 1 Set -
Consumer Tissue Napkin Folder MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Automatically Napkin Folding Paper MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
NF-P High Speed Facial Tissue Folding MachineryUS$ 10,000 - 50,000MOQ: 1 Set
-
Napkin Manufacturing Automatic Handkerchief Paper Making MachineUS$ 20,000 - 50,000MOQ: 1 Set
Specifications
Napkin Folder Machine1) Nicely embossing
2) Paper width adjustble
3) 400-600pieces/min
4) CE folder machine
NF-P Printing/Embossing Napkin Folder can work on single&multi-ply TISSUE and MG.Makes table napkin, nicely printed, intensively embossed, square folded, precision cut, pre-counted and accurately stacked.Automatically at 400-600 pieces per minute. Fast and easy exchange of sizes. Versatility is the key-note.
Specification for CE Approved Printing Embossing Napkin Folder Machine
Model |
NF-P (1-4color) |
Raw material size |
≤Φ1000*(230-460)mm,13-20gsm 1-2plies wooden pulp paper |
Core : 76mm | |

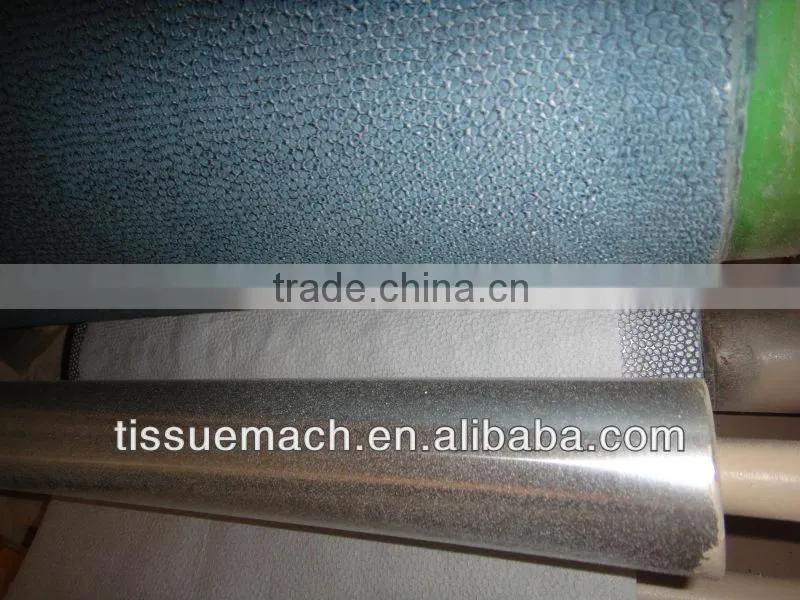

Button embossing roll |
with wool-cloth,neoprene or wool-paper material. (it can be decided by the embossing patterns)
|
|
The embossing unit can be equipped with heating element t o keep the temperature of the embossing rolls (be used with paper embossing roll) | |
The printing pattern is changeable and customized | |
Printing unit |
flexography and anilox roller applied |
Ink feeding |
by pneumatic diaphragm pump, transfer by two rollers |
Precise color register device and printing rollers equipped | |
Folding forms |
1/4 1/8 quadrate and rectangled |
Unfolded size |
230*230-460*460,width adjustable |
Folded size |
115*115-230*230mm |
Folding rate |
560sheets/min 450sheets/min with printing |
PLC computer programmed control | |
Processing uni |
hot air dryer |
Power |
2.75-4KW 3phase 380V 50HZ |
Overall size(L*W*H) |
4150*800*1600mm |
Weight |
1500KG |
|
Printing clearly, precision cut, accurately stacked ,running stably and high speed. Used to converting high quality napkin paper. | |

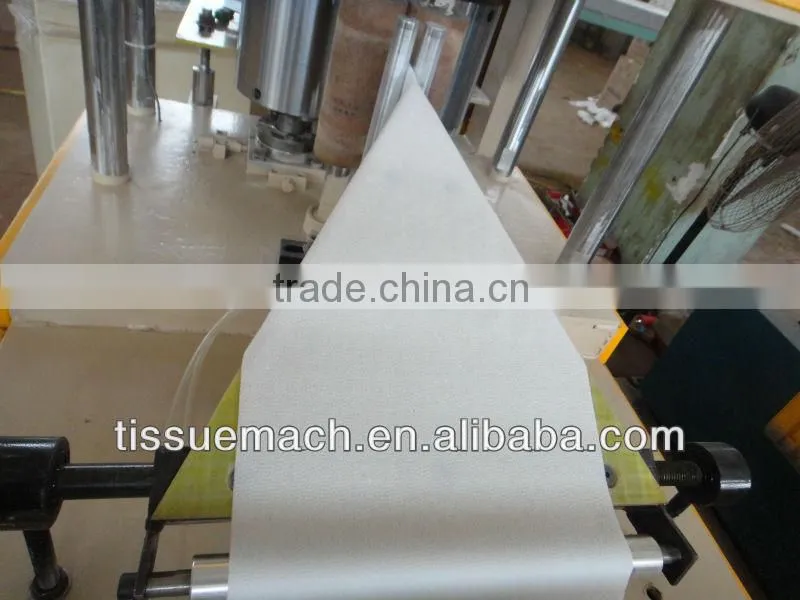

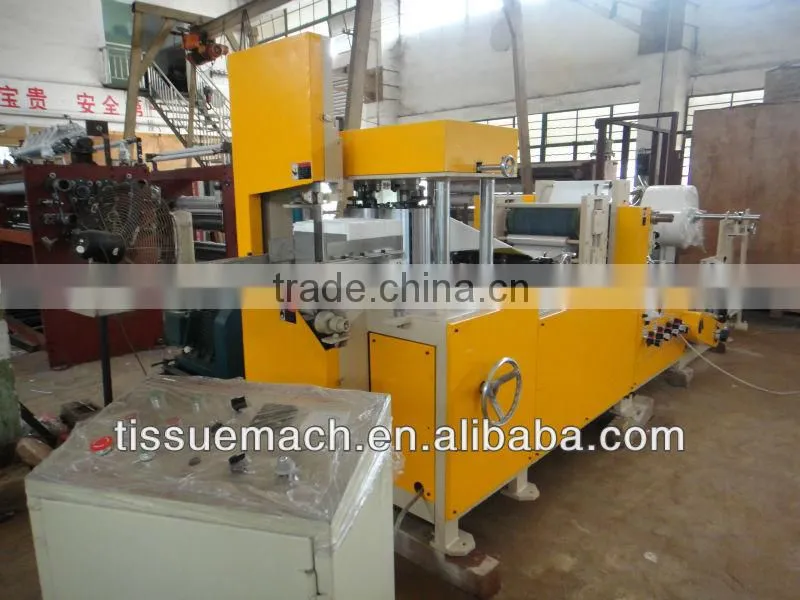

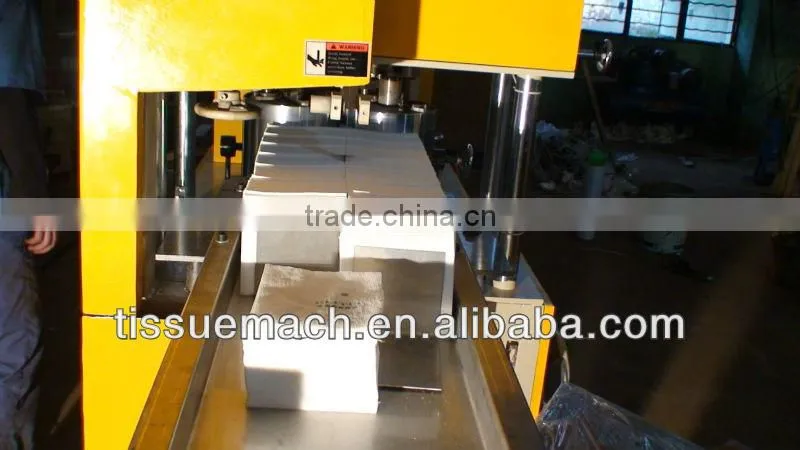

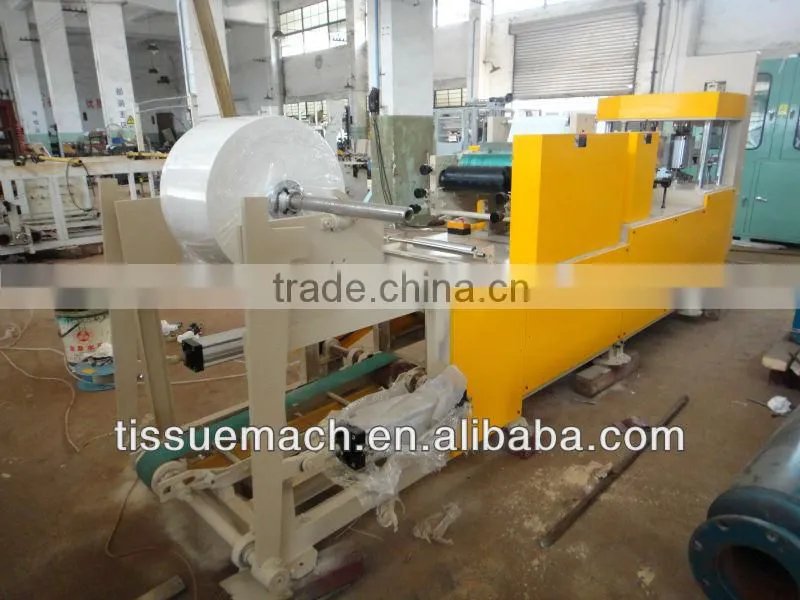

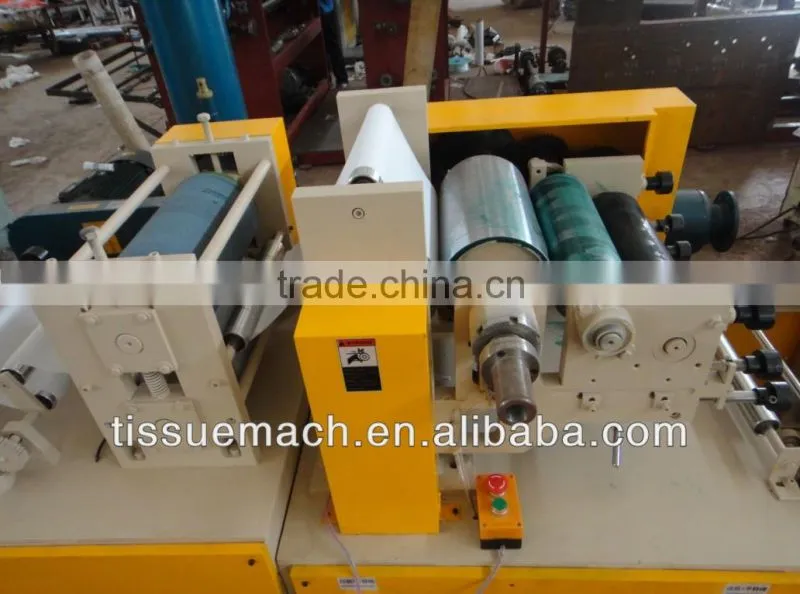

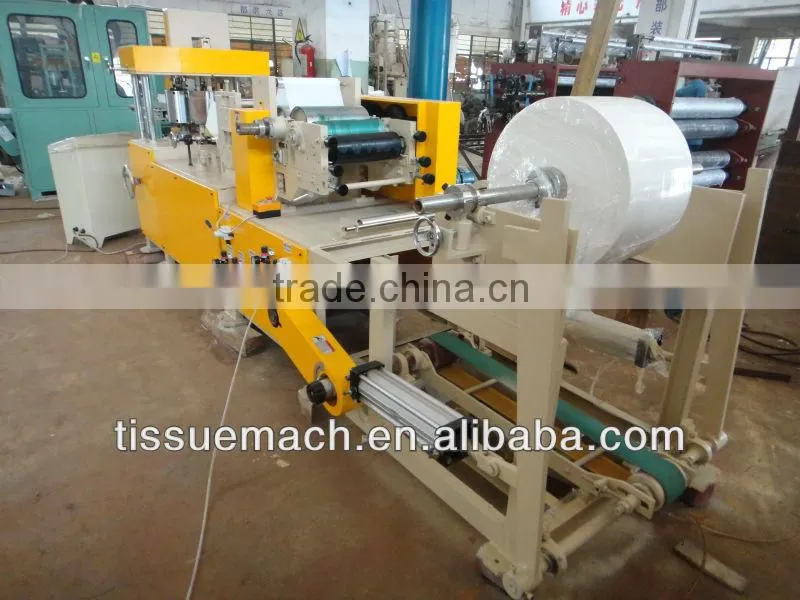

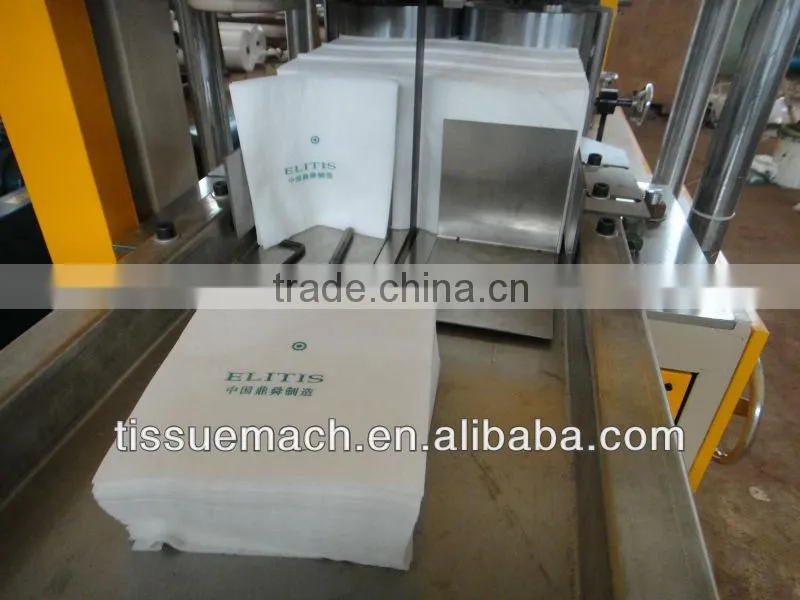

Here you will have a close view of CE Approved Printing Embossing Napkin Folder Machine
