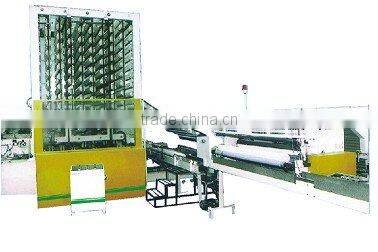

Automatic High Speed Toilet Paper Machine Line

Name: Automatic High Speed Toilet Paper Machine Line
Brand: Elitis
SKU: 127119183
Availability: InStock

US$ 1 - 150,000 MOQ: 1 Set

Key Specifications

Product Type:

Other, Toilet Paper Machine Line

Processing Type:

Paper Slitting and Rewinding Machine

Place of Origin:

Guangxi, China

Nanning Elite Tissue Converting Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Product Type Other, Toilet Paper Machine Line

Processing Type Paper Slitting and Rewinding Machine

Place of Origin Guangxi, China

Brand Name Elitis

Model Number EDW-400

Certification CE

Specifications

1 Toilet paper machine line
2 PLC Frequency conversion speed
3 Photoelectric sensor
4 Auto pipe change
5 Print Emboss

Technical parameters of Toilet Paper Machine Line

Machine can be equipped with the following devices according to customer’s specification
Rewinder (PLC control and Servo)
Jumbo roll stand	1, 2 or 3 pieces
Embosser	Steel to steel & steel to rubber
Printing	1 or 2 colors
Embosser with lamination	Point to point embosser with lamination(DESL)
Parent roll outer diameter	Available Max. 2500 mm
Parent roll width	1500-2700 mm
Core inner diameter of parent roll	3” (76.2 mm) Other sizes please specify.
*Machine speed*	*0-300 m/min*
*Operating speed*	*160-220 m/min (Depends on model)*
Log outer diameter	90-130 mm consumer
Perforating pitch	114.3 mm (41/2) The size could be customized.
Production core outer diameter	35 mm-50 mm for consumer use
Converting web	1-2 plies; 14-30 g/m2 toilet tissue or towel
Installed power	AC motor 25-100 HP (depending on options)

Log Accumulator
Paper log length	1500-2700 mm
Log outer diameter	90-130 mm
Effective logs	100-200 rolls Customized.
Loading speed	25 logs/min
Installed power	AC motor 1HP*2sets

High speed Log Saw
Paper log length	1500-2700 mm
Log outer diameter	90-130 mm Standard size: 110±5 mm Other size customized
Cutting length	Variable; Servo control
Machine speed	0-15 cuts/min; 2 rolls/cut
Operating speed	140 cuts/min; 2 rolls/cut
Cutting blade outer diameter	610 mm
Installed power	AC moter 5HP * 1set; AC 1/2 HP * 1set
