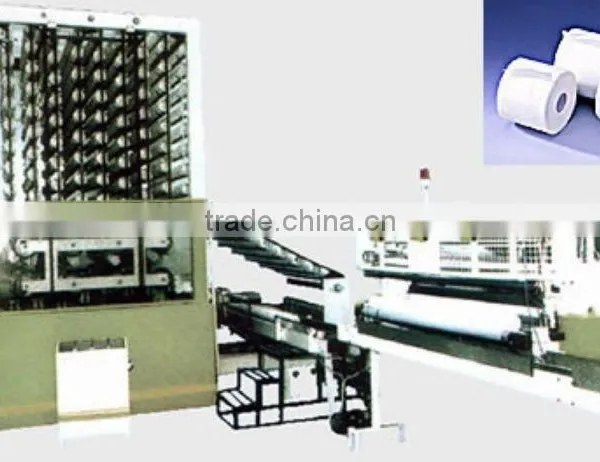

Automatic Kitchen Towel Toilet Roll Production Line

Name: Automatic Kitchen Towel Toilet Roll Production Line
Brand: Elitis
SKU: 127118477

US$ 1 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Toilet Roll Production Line

Computerized:

Yes

Nanning Elite Tissue Converting Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Toilet Roll Production Line

Computerized Yes

Place of Origin Guangxi, China

Brand Name Elitis

Model Number EDW-400

Voltage 380V

Power(W) Depends

Dimension(L*W*H) Depends

Weight Depends

Certification CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1 Toilet roll production line
2 PLC Frequency conversion speed
3 Photoelectric sensor
4 Auto pipe change
5 Print Emboss

Technical parameters of Toilet Roll Production Line

Machine can be equipped with the following devices according to customer’s specification
Rewinder (PLC control and Servo)
Jumbo roll stand	1, 2 or 3 pieces
Embosser	Steel to steel & steel to rubber
Printing	1 or 2 colors
Embosser with lamination	Point to point embosser with lamination(DESL)
Parent roll outer diameter	Available Max. 2500 mm
Parent roll width	1500-2700 mm
Core inner diameter of parent roll	3” (76.2 mm) Other sizes please specify.
*Machine speed*	*0-300 m/min*
*Operating speed*	*160-220 m/min (Depends on model)*
Log outer diameter	90-130 mm consumer
Perforating pitch	114.3 mm (41/2) The size could be customized.
Production core outer diameter	35 mm-50 mm for consumer use
Converting web	1-2 plies; 14-30 g/m2 toilet tissue or towel
Installed power	AC motor 25-100 HP (depending on options)

Log Accumulator
Paper log length	1500-2700 mm
Log outer diameter	90-130 mm
Effective logs	100-200 rolls Customized.
Loading speed	25 logs/min
Installed power	AC motor 1HP*2sets

High speed Log Saw
Paper log length	1500-2700 mm
Log outer diameter	90-130 mm Standard size: 110±5 mm Other size customized
Cutting length	Variable; Servo control
Machine speed	0-15 cuts/min; 2 rolls/cut
Operating speed	140 cuts/min; 2 rolls/cut
Cutting blade outer diameter	610 mm
Installed power	AC moter 5HP * 1set; AC 1/2 HP * 1set
