GB11264-89 Steel Rail GB Standard Railroad Rail for Sale
- Qingdao Lianyungang Shanghai Tianjin
You May Like
Product Details
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Grade | Q235/55Q | |
| Rail Heigth | 50.8-107.95mm | Bottom Width | 50.8-107.95mm | |
| Web Thickness | 4.76-12.3mm | Head Width | 25.4-60.33mm | |
| Length | 6-12m | Place of Origin | Henan, China | |
| Brand Name | Zhongxiang | Model Number | light steel rail | |
| Type | Light Rail | Application | Railway Rail | |
| Weight | 6-30kg/m, 6-30kg/m | Secondary Or Not | Non-secondary | |
| Bolt Hole Diameter | GB standard |
Product Description
GB11264-89 steel rail GB standard railroad rail for sale
Item Specification:
| Product name | GB11264-89 steel rail GB standard railroad rail for sale |
| Brand | Zhongxiang GB11264-89 steel rail GB standard railroad rail for sale |
| Application | rail track, laying temporary hauling tracks in forested areas, factories, mines, and construction areas |
| Finish condition | hot rolling |
| Appearance | new |
| Sales mode | factory direct sales |
| Quality assurance | mill test certificate is provided, third party inspection is acceptable |
| Trade term | EXW/FOB/CIF/CFR |
| Payment term | 30%T/T in advance; balance should be paid prior to shipping |
| Delivery time | 7-30 days, according to the quantity |
| Loading port | qingdao, lianyungang, shanghai, tianjin |
| Certification | ISO9001:2008 |
Packaging: in bundle, or in bulk
Shipping: 15 days after confirmed
1. High quality
2. Best price
3. Good service
4. Fast delivery

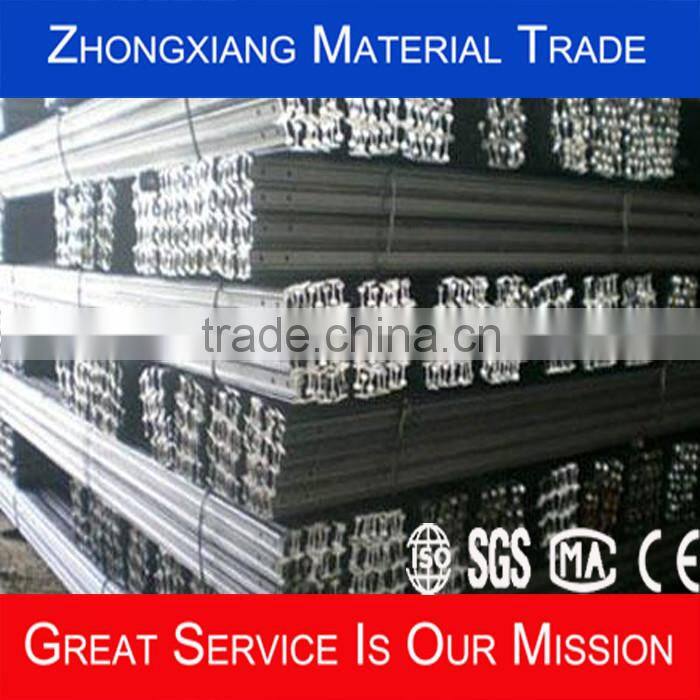

Product display:
Specifications of GB Standard Rails:
GB11264-89 Standard Light Rail | |||||||
Size | Dimension (mm) | Weight (kg/m) | Material | Length (m) | |||
| Head A (mm) | Height B (mm) | Base C (mm) | Web D (mm) |
|
|
|
GB 6KG | 25.4 | 50.8 | 50.8 | 4.76 | 5.98 | Q235/55Q | 6-12 |
GB 9KG | 32.1 | 63.5 | 63.5 | 5.9 | 8.94 | Q235/55Q | 6-12 |
GB 12KG | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | Q235/55Q | 6-12 |
GB 15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | Q235/55Q | 6-12 |
GB 22KG | 50.3 | 93.66 | 93.66 | 10.72 | 22.3 | Q235/55Q | 6-12 |
GB 30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | Q235/55Q | 6-12 |
Certificate:
If you have any question about our products, please feel free to contact me.
