1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor

1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor thumbnail-1
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor thumbnail-2
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor thumbnail-3
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor thumbnail-4
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor thumbnail-5
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor thumbnail-6
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor photo-1
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor photo-2
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor photo-3
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor photo-4
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor photo-5
1718 No-load Speed 10280rpm Toy Airplane Motor, Micro dc Coreless Motor photo-6
US$ 2 - 100 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Constar
Model Number:
1718RCN
Contact Supplier Request Quote Chat Now
Constar Micromotor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Constar
Model Number 1718RCN
Usage Home Appliance, Other, Home Appliance, medical,health care and industrial automation.toy airplane
Certification CE, ROHS
Type Micro Motor
Torque 2.2mNm
Construction Other, precious metal commutation
Commutation Brush
Protect Feature Totally Enclosed
Speed(RPM) 10280rpm
Continuous Current(A) 927mA
Output Power 1.85W
Voltage(V) 3.0V
Efficiency Other, *

1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor

1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor



1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment


2.Operating Environment:  -10~+60°C; 15~90%RH


3.Characteristics:

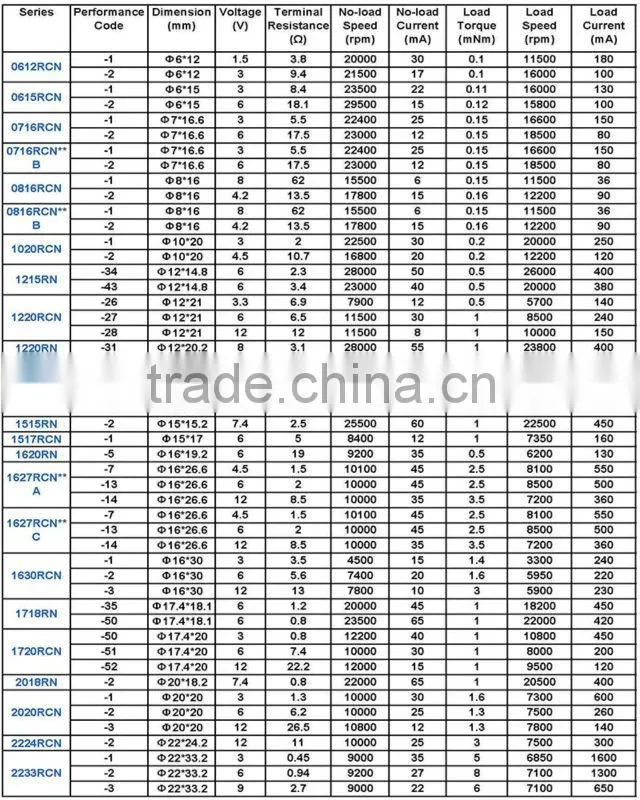

The following are our standard products, we also provide customized products and service.



Series

Performance

Code

Commutation Structure

Dimension

(mm)

Voltage

(V)

Termanal resistence (Ω)

No-load

Speed

(rpm)

No-load

Current

(mA)

Load

Torque

(mNm)

Load

Speed

(rpm)

Load

Current

(mA)

1718RCN



35-3.0

Precious Metal

Φ17*18

3





1.2

10280

30

2.75

6550

927



4. Options:   Lead wires length, shaft length, special coils, gearheads, encoder.

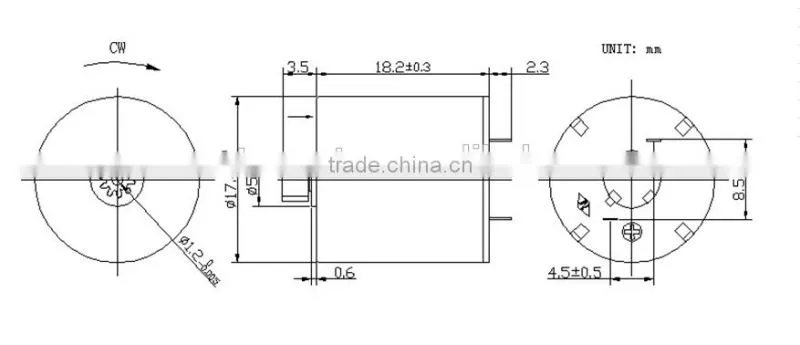

5,Outline Drawing:

1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor

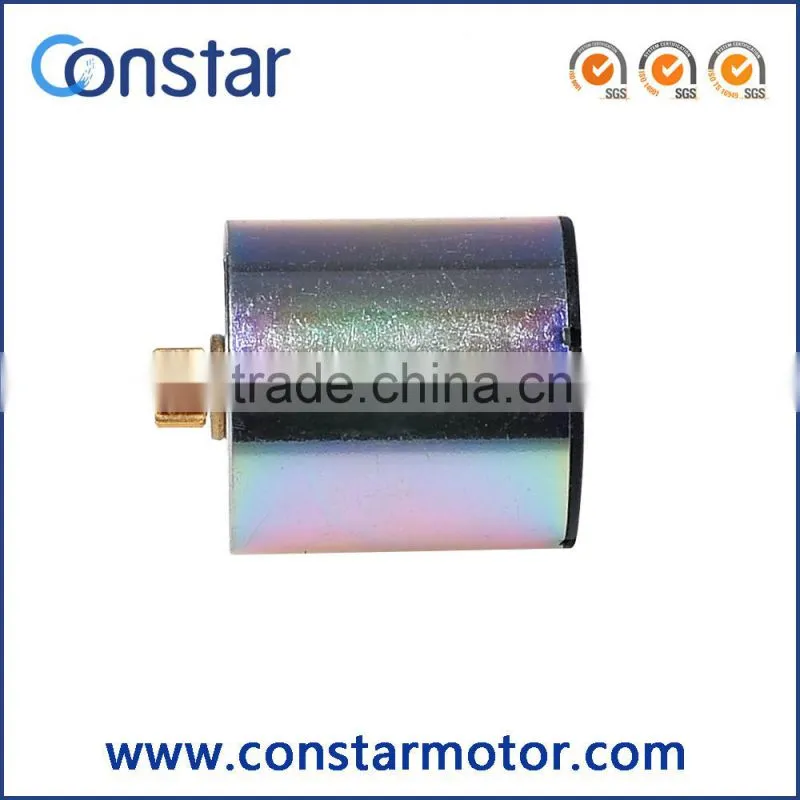

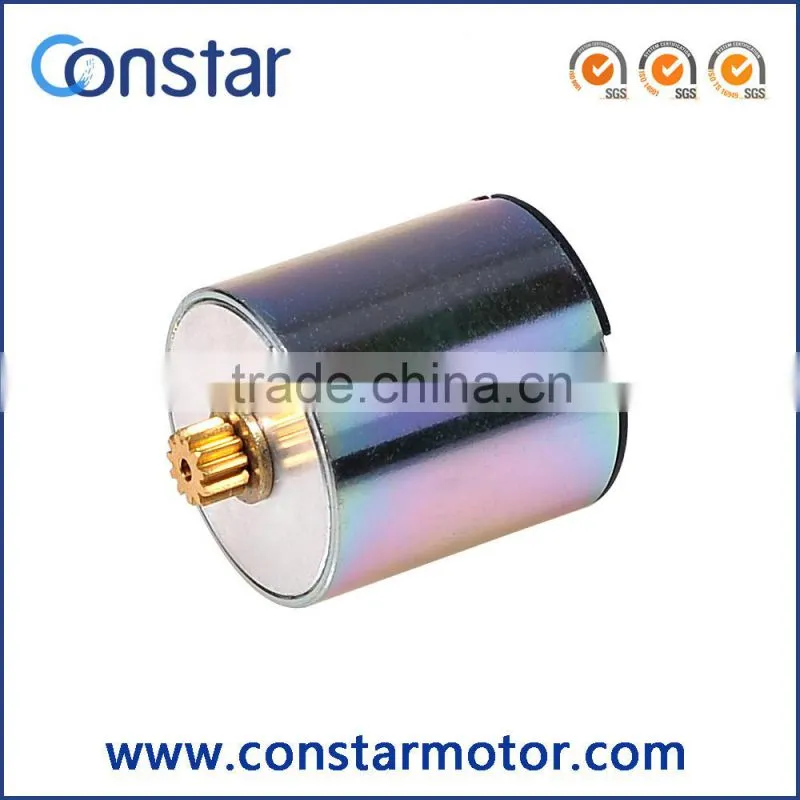

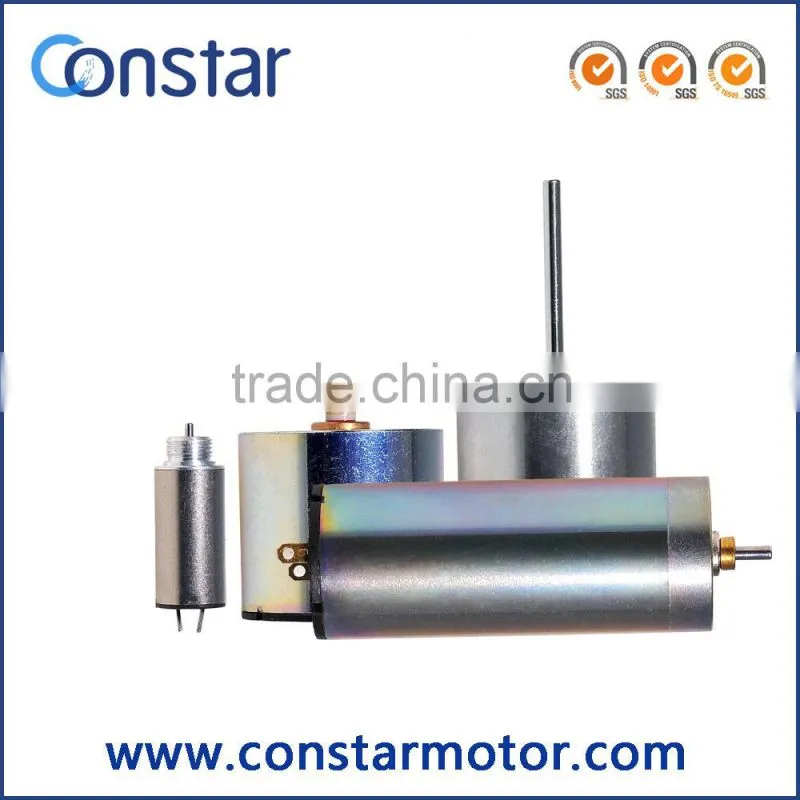

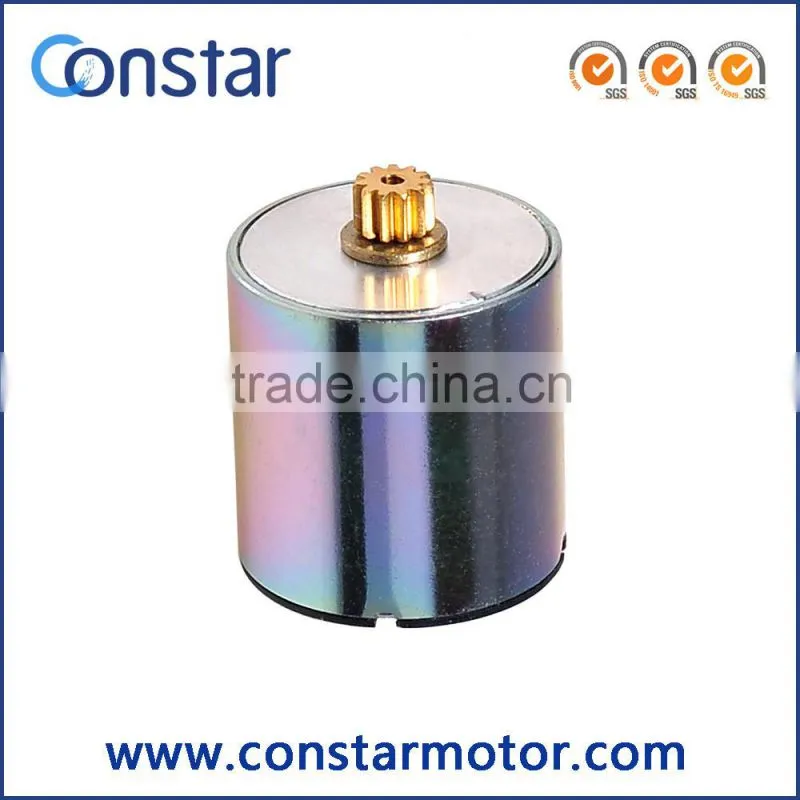

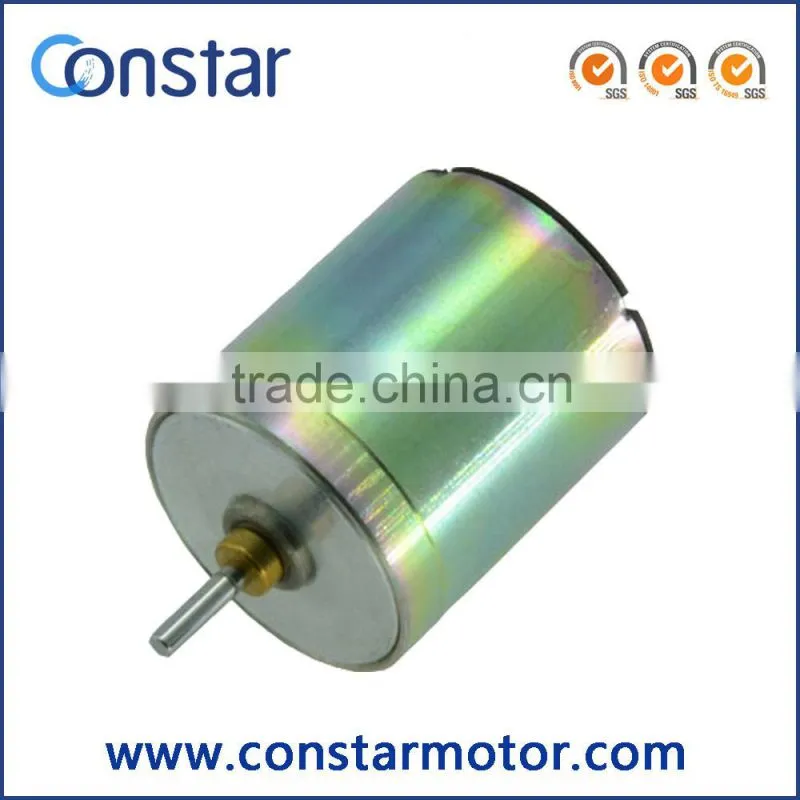

6,Photo:

1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor

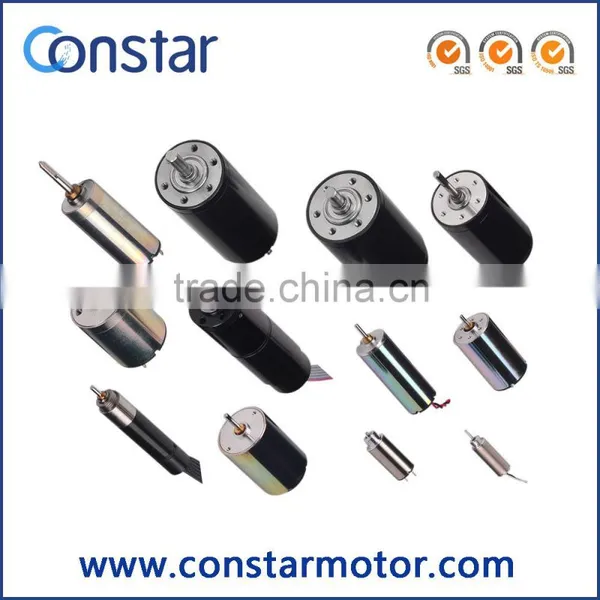

7,Other Item:

1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor

1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor



1718 No-load speed 10280rpm toy airplane motor, micro dc coreless motor
