Home > Electrical & Electronics > Electric Motor > DC Motor > 30mm Graphite Brush Small Coreless DC Motor for Medical

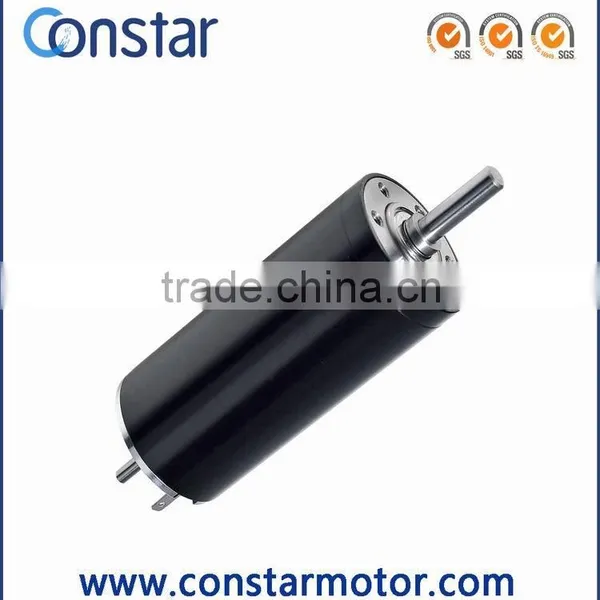

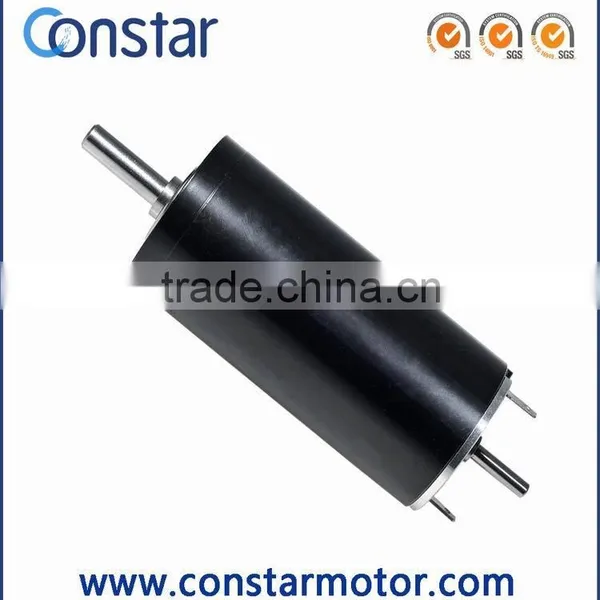

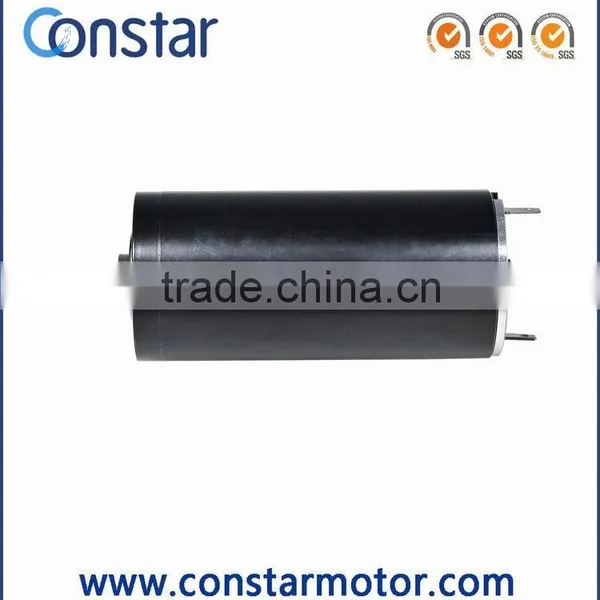

30mm Graphite Brush Small Coreless DC Motor for Medical
US$ 1 - 1,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Constar
Model Number:
3068RCG91-2-36.0
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24V 25mm 2440rpm Performance Stable Coreless Motor,graphite Brush Slotless dc MotorNegotiableMOQ: 10 Pieces -
7.4V 24mm Pernament Magnet Long Lifetime Graphite Brush Micro Coreless MotorsNegotiableMOQ: 10 Pieces
-
22mm High Precision Long Life Robot Carbon Brush dc Micro Coreless MotorNegotiableMOQ: 10 Pieces
-
22*33mm Graphite Brush Long Life Precision PM Small dc Coreless MotorNegotiableMOQ: 10 Pieces
-
24V Carbon Brush High Speed Precision Coreless Motor Used in UAVNegotiableMOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Constar
Model Number
3068RCG91-2-36.0
Usage
Other, medical,health care and industrial automation., medical,health care and industrial automation.
Certification
CE, ROHS
Type
Micro Motor
Torque
20mNm
Construction
Other, precious metal commutation
Commutation
Brush
Protect Feature
Other, *
Speed(RPM)
8600rpm
Continuous Current(A)
317mA
Output Power
6.29W
Voltage(V)
36V
Efficiency
IE 2
30mm Graphite Brush small Coreless DC Motor for medical
1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2.Operating Environment: -10~+60°C; 15~90%RH
3.Characteristics:
The following are our standard products, we also provide customized products and service.
Series |
Dimension (mm) |
Voltage (V) |
No-load
Speed
|
No-load Current |
Terminal resistance (R) |
Stall Current (mA) |
StartingTorsion (mN.m) |
Voltage constant (V/krpm) |
Torque constant (mNm/A) |
|
3068RCG |
Φ30x68 |
36 | 8600 | 55 | 1.5 | 24000 | 954.9 | 4.176 | 39.882 |
4. Options: Lead wires length, shaft length, special coils, gearheads, encoder
5.Characteristics Curve:
