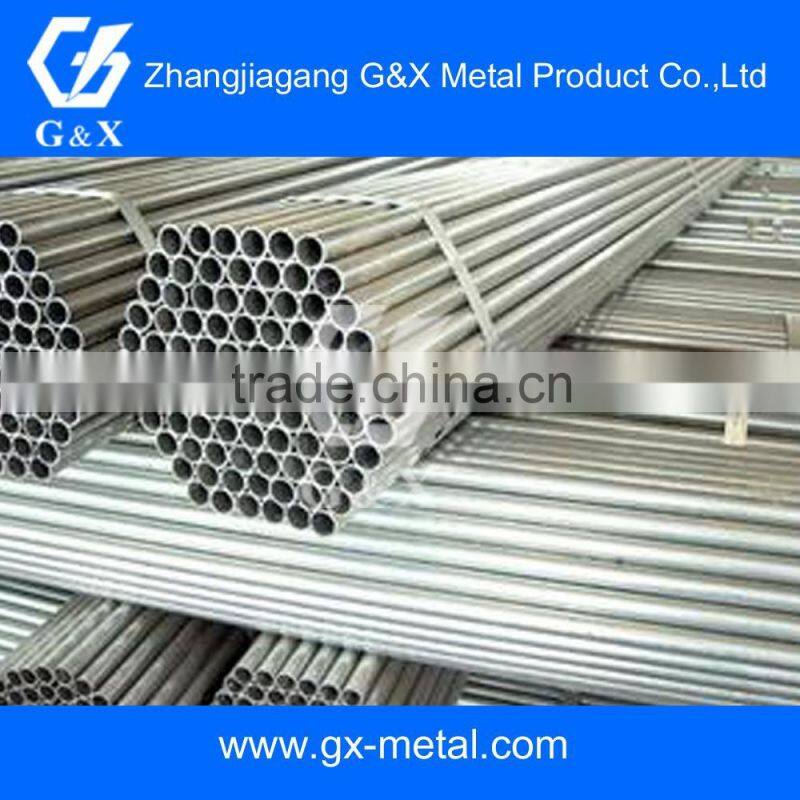

Welded Steel Tube

Welded Steel Tube photo-1
US$ 1,500 - 5,000 MOQ: 1 Ton
Key Specifications
Get Latest Price
Standard:
ASTM, AISI, DIN, EN, GB, JIS
Place of Origin:
Jiangsu, China
Brand Name:
G&X
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Standard ASTM, AISI, DIN, EN, GB, JIS
Place of Origin Jiangsu, China
Brand Name G&X
Model Number 201,304,304L,316,316L
Type Welded
Steel Grade 300 Series
Application heat exchanger, boil, construction, general purpose
Certification ISO
Welding Line Type Spiral Welded
Thickness 0.4-30mm
Outer Diameter 6-3000mm

welded steel tube

SPECIFICATION

MATERIAL

Size range (mm)

DESCRIPTION

ASTM A/ASME SA249

TP304H/310H/316H

6.0-3000

Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger and Condenser Tubes

ASTM A/ASME SA268

TP410/430/430Ti/439

6.0-3000

Welded Ferritic and Martensitic Stainless Steel Tubing for General Service

ASTM A/ASME SA312

TP304H/310H/316H

6.0-3000

Welded Austenitic Stainless Steel Pipes

ASTM A/ASME SA269

TP304/TP304L/TP316/TP316L

6.0-3000

Welded Austenitic Stainless Steel Tubing for General Service

ASTM A/ASME SA358

304/304L/310S/316/316L

6.0-3000

Electric-Fusion-Welded Austenitic Chromium-Nickel Alloy Steel Pipe for High-Temperature Service

ASTM A/ASME SA409

TP304/TP304L/TP310S

6.0-3000

Welded Large Diameter Austenitic Steel Pipe for Corrosive or High-Temperature Service

ASTM A/ASME SA554

MT-304/304L/310S/316/316L

6.0-3000

Welded Stainless Steel Mechanical Tubing

ASTM A/ASME SA688

TP304/304L/316/316L

6.0-3000

Welded Austenitic Stainless Steel Feedwater Heater Tubes

ASTM A/ASME SA789

-------

6.0-3000

Welded Ferritic/Austenitic Stainless Steel Tubing For General Service

ASTM A/ASME SA790

-------

6.0-3000

Welded Ferritic/Austenitic Stainless Steel Pipe for General Corrosive Service

ASTM A/ASME SA803

-------

6.0-3000

Welded Ferritic Stainless Steel Feedwater Heater Tubes

ASTM A/ASME SA928

-------

6.0-3000

Stainless Steel Pipe Electric Fusion Welded with Addition of Filler Metal

JIS G3459

SUS304TP/HTP/LTP, SUS310TP/STP, SUS316TP /HTP/LTP/TITP, SUS430TP/ LXTP/J1LTP

6.0-3000

Stainless Steel Pipes

JIS G3446

SUS304TKA/TKC,SUS316TKA/ TKC, SUS430TKA/TKC, SUS 410TKA/TKC

6.0-3000

Stainless Steel Pipes for Machine and Structural Purpose

JIS G3447

SUS 304/304L/316/316L TBS

6.0-3000

Stainless Steel Sanitary Pipes

JIS G3448

SUS 304/316 TBD

6.0-3000

Light Gauge Stainless Steel Pipes for Ordinary Piping

JIS G3463

SUS 304/304H/304L/310/ 310S/316/316H/316L TB

6.0-3000

Stainless Steel Boiler and Heat Exchanger Tubes

JIS G3468

-------

6.0-3000

Arc Welded Large Diameter Stainless Steel Pipes

DIN 17455

-------

6.0-3000

General Purpose Welded Circular Stainless Steel Tubes

DIN 17457

-------

6.0-3000

Welded Circular Austenitic Stainless Steel Tubes Subject to Special Requirements

EN10217-7

-------

6.0-3000

Welded Tubes of Circular Cross made of Austenitic and Austenitic-ferritic stainless steel, applied for pressure and corrosion resisting purposes





welded steel tube



welded steel tube



welded steel tube



welded steel tube
